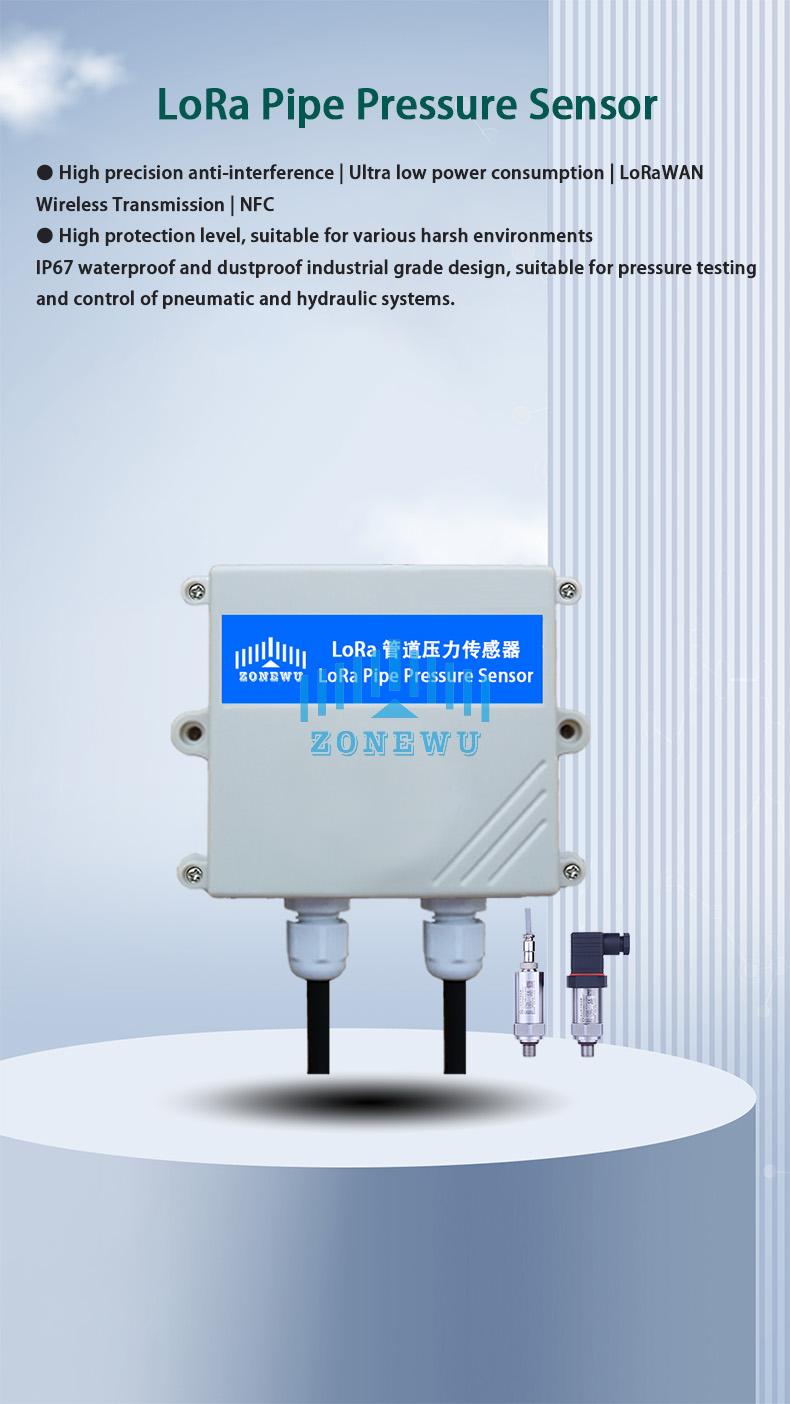

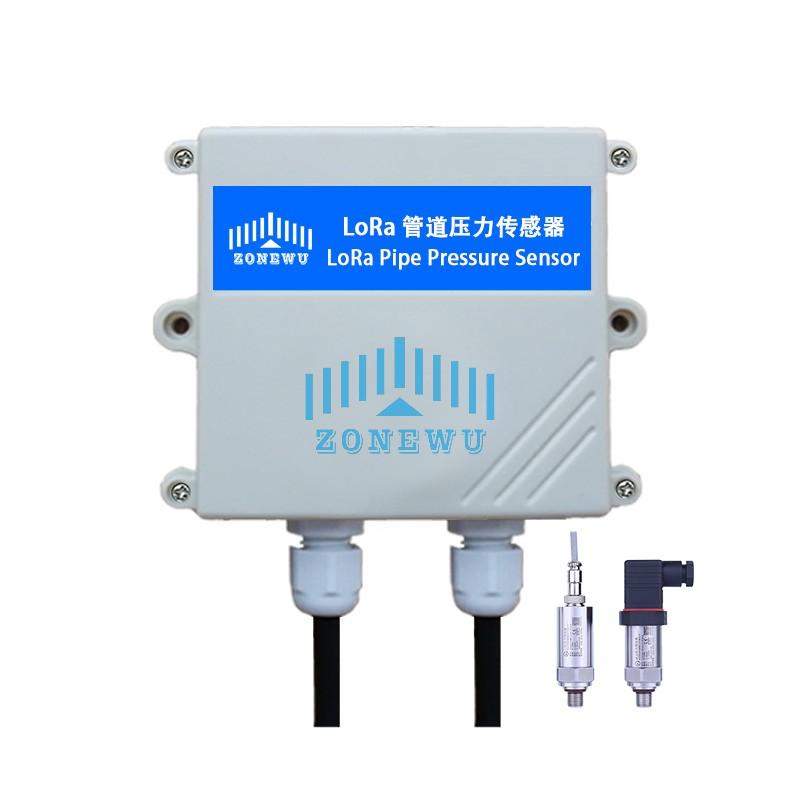

LoRa Pipe Pressure Sensor

The ZW-ST203 pressure acquisition terminal is an LPWAN (Low Power Wide Area Network) product.Based on LoRaTM spread spectrum modulation technology, terminals can communicate over ultra long distances. A wireless pressure acquisition terminal that integrates data collection and monitoring. The pressure sensitive core of this product's pressure transmitter adopts a high-performance silicon piezoresistive pressure filled oil core body. The dedicated integrated circuit inside converts the sensor millivolt signal into standard voltage, current, or frequency signal. It has a small volume, light weight, and all stainless steel sealing structure, which can work in corrosive environments. Active threshold reporting, supporting remote wireless gateway configuration, with good stability and reliability.

Product details

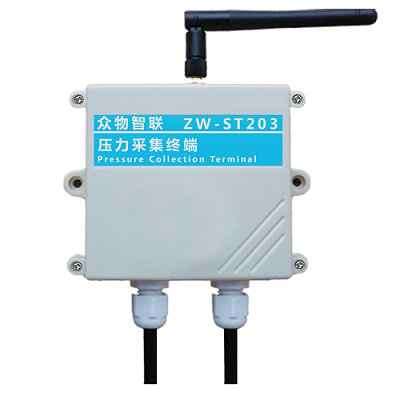

The ZW-ST203 pressure acquisition terminal is an LPWAN (Low Power Wide Area Network) product.

Based on LoRaTM spread spectrum modulation technology, terminals can communicate over ultra long distances. A wireless pressure acquisition terminal that integrates data collection and monitoring. The pressure sensitive core of this product's pressure transmitter adopts a high-performance silicon piezoresistive pressure filled oil core body. The dedicated integrated circuit inside converts the sensor millivolt signal into standard voltage, current, or frequency signal. It has a small volume, light weight, and all stainless steel sealing structure, which can work in corrosive environments. Active threshold reporting, supporting remote wireless gateway configuration, with good stability and reliability.

This product is widely used in the M2M industry in the IoT industry chain, such as process control, aviation, aerospace, automotive, medical equipment, HVAC, smart communities, smart factories, smart construction sites, and other fields.

<a href=https://www.zonewu.com/en/LoRaWAN-Sensor.html target='_blank'>LoRa</a> Pipe Pressure Sensor2.jpg

<a href=https://www.zonewu.com/en/LoRaWAN-Sensor.html target='_blank'>LoRa</a> Pipe Pressure Sensor3.jpg

LoRa Pipe Pressure Sensor4.jpg


Specifications






Wireless Transmission

Communication Protocol

LoRaWAN,LoRa TDMA Networking

Frequency

CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4

Tx Power

20dBm (915) / 16dBm (868) / 17dBm (470)

Mode

OTAA/ABP Class A



Measurement

Cable Length

3m (Cable length optional)

Range

0-2500kpa(Other ranges available)

Accuracy

±0.5% FS



Operation

Configuration

NFC Configuration via Mobile App



Physical Characteristics

Power Supply

ER26500 Li-SOCl2 8000 mAh battery

Battery Life

3 years

Operating Temperature

-30°C to 70°C

Dimensions

90x85x40  mm

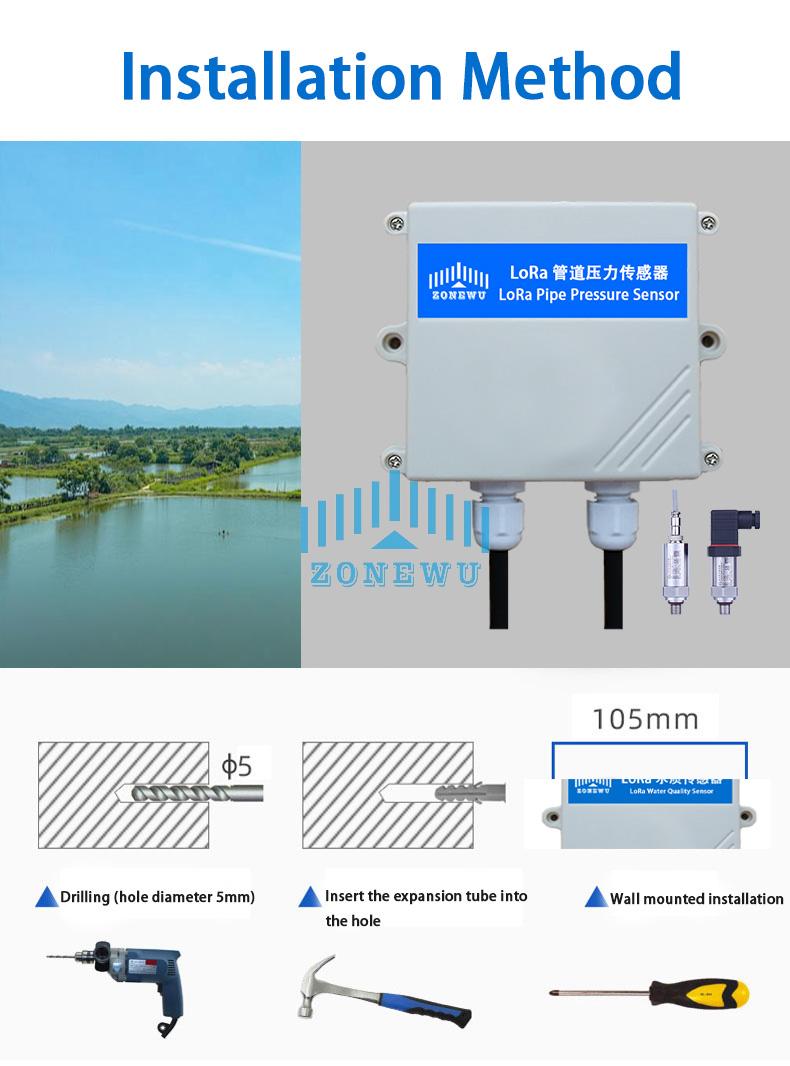

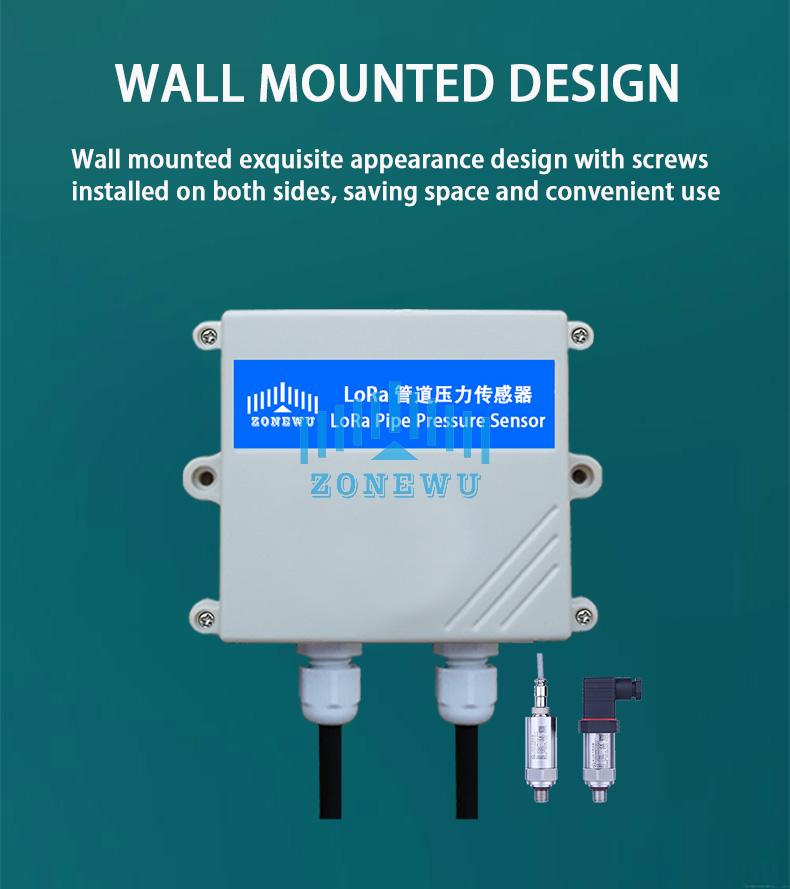

Installation

Wall Mounting
