LoRa SO2 temperature and humidity sensor

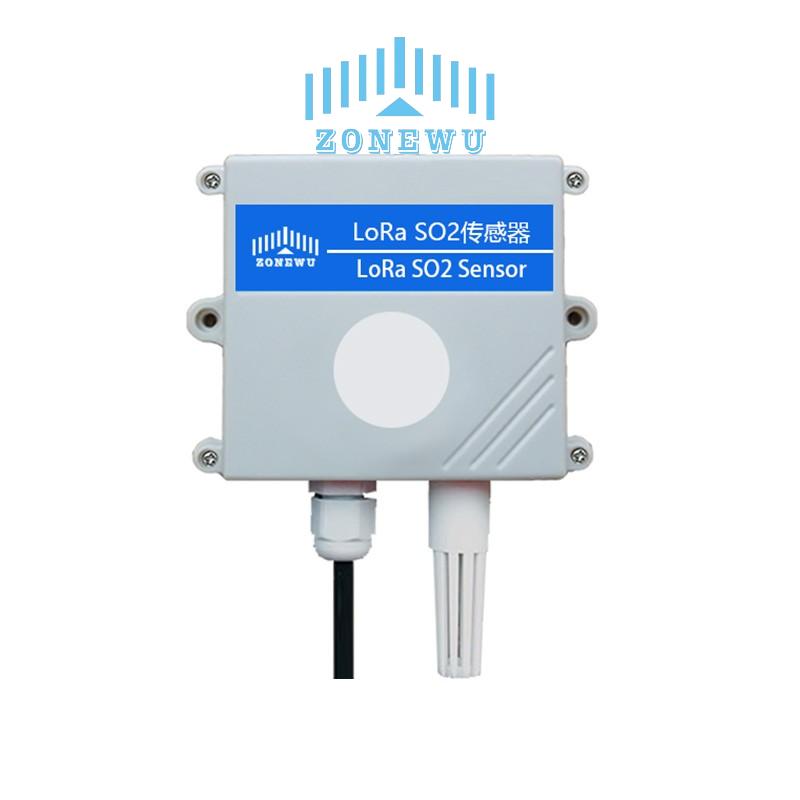

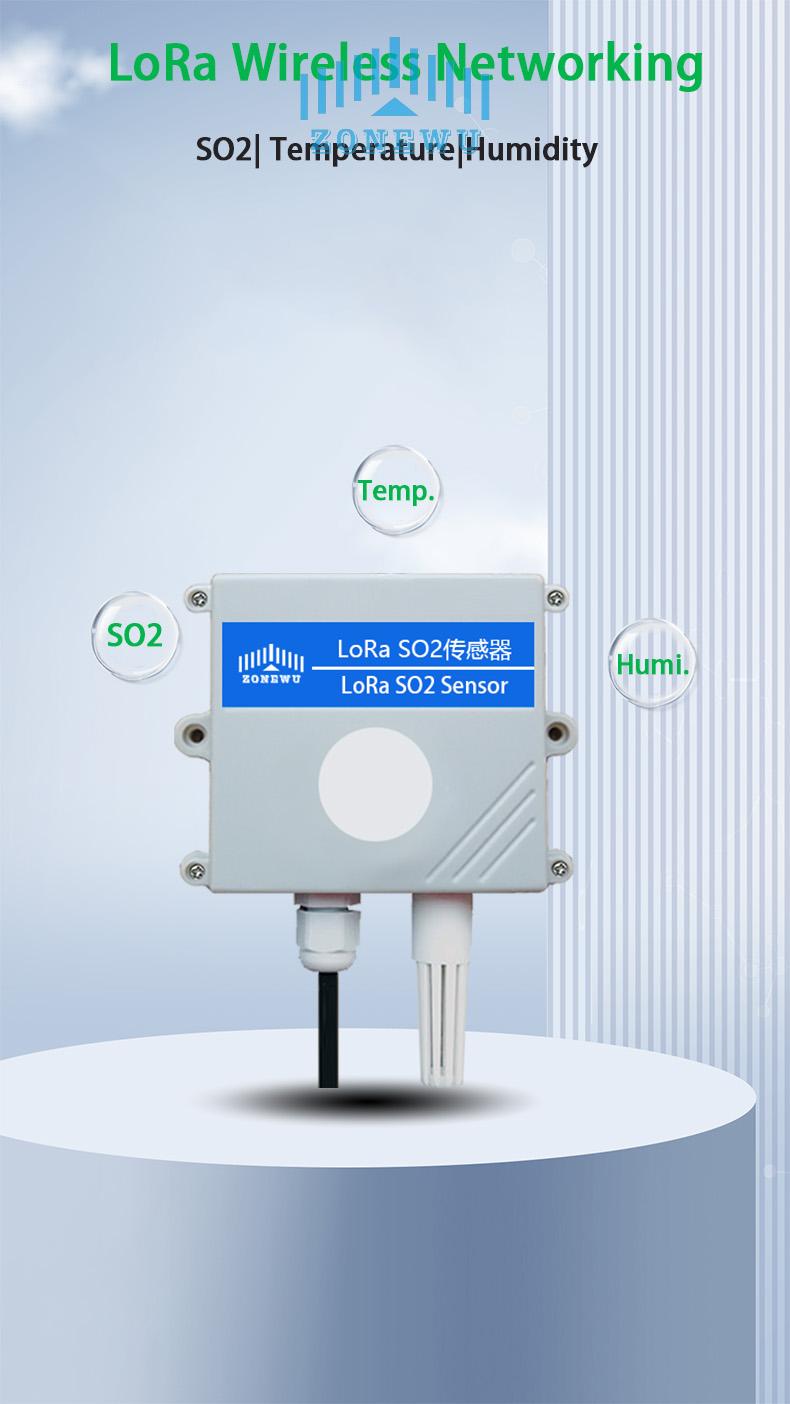

The ZW-ST516 SO2 temperature and humidity sensor is a product of LPWAN (Low Power Wide Area Network). Based on LoRaTM spread spectrum modulation technology, terminals can communicate over ultra long distances. A wireless monitoring instrument that integrates data collection, monitoring, and transmission. This product has built-in SO2 sensors and temperature and humidity sensors. The SO2 sensor adopts a two electrode or three electrode electrochemical sensor and a high-performance microprocessor, which has the characteristics of high detection accuracy, stable performance, and low power consumption. ST516 is equipped with emergency reporting of data anomalies, can preset threshold values according to the on-site environment, actively report anomalies, support remote wireless gateway configuration, and has good stability and reliability.

Product details

The ZW-ST516 SO2 temperature and humidity sensor is a product of LPWAN (Low Power Wide Area Network).

Based on LoRaTM spread spectrum modulation technology, terminals can communicate over ultra long distances. A wireless monitoring instrument that integrates data collection, monitoring, and transmission. This product has built-in SO2 sensors and temperature and humidity sensors. The SO2 sensor adopts a two electrode or three electrode electrochemical sensor and a high-performance microprocessor, which has the characteristics of high detection accuracy, stable performance, and low power consumption. ST516 is equipped with emergency reporting of data anomalies, can preset threshold values according to the on-site environment, actively report anomalies, support remote wireless gateway configuration, and has good stability and reliability.

This product is widely used in the M2M industry and is widely used in the IoT industry chain, such as safety testing in various carbon oxide environments such as factory workshops, agricultural greenhouses, laboratories, flower breeding, and smart pipe corridors.


<a href=https://www.zonewu.com/en/LoRaWAN-Sensor.html target='_blank'>LoRa</a> SO2 sensor2.jpg






Specifications






Wireless Transmission

Communication Protocol

LoRaWAN,LoRa TDMA Networking

Frequency

CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4

Tx Power

20dBm (915) / 16dBm (868) / 17dBm (470)

Mode

OTAA/ABP Class A



Sensors

Ammonia (SO2)

Range: 0-20ppm

Accuracy: 0.1ppm

Temperature

Range: -40~+80

Accuracy: ±0.3

Humidity

Range: 0~99.9 %RH

Accuracy: ±2 %RH



Operation

Configuration

NFC Configuration via Mobile App



Physical Characteristics

Power Supply

12/24VDC

Operating Temperature

-30°C to 70°C

Dimensions

90x85x40  mm

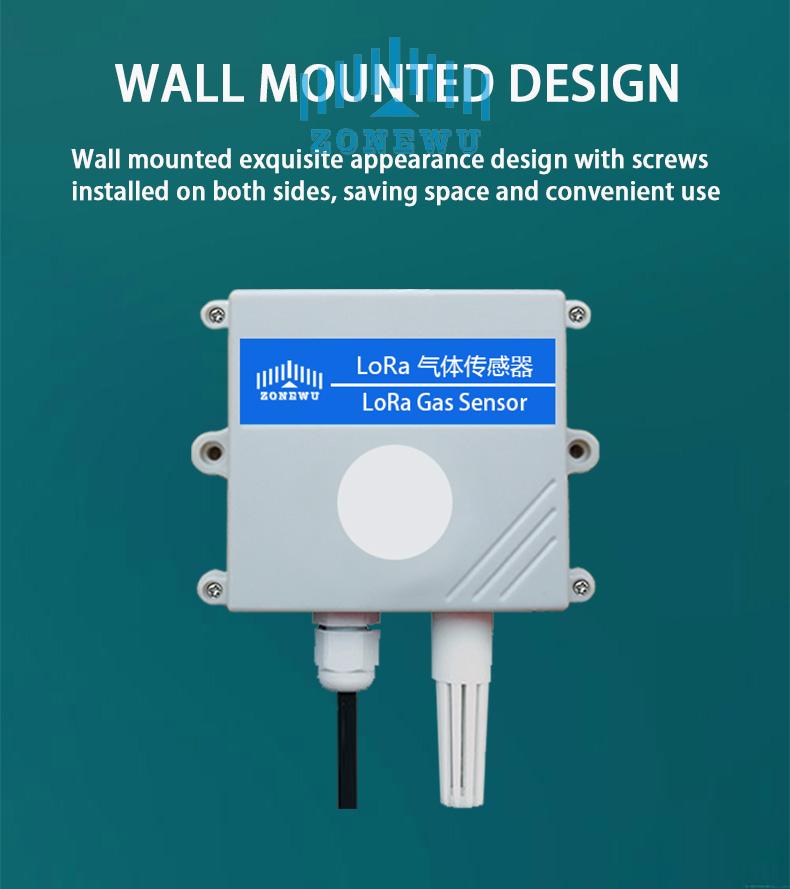

Installation

Wall Mounting
