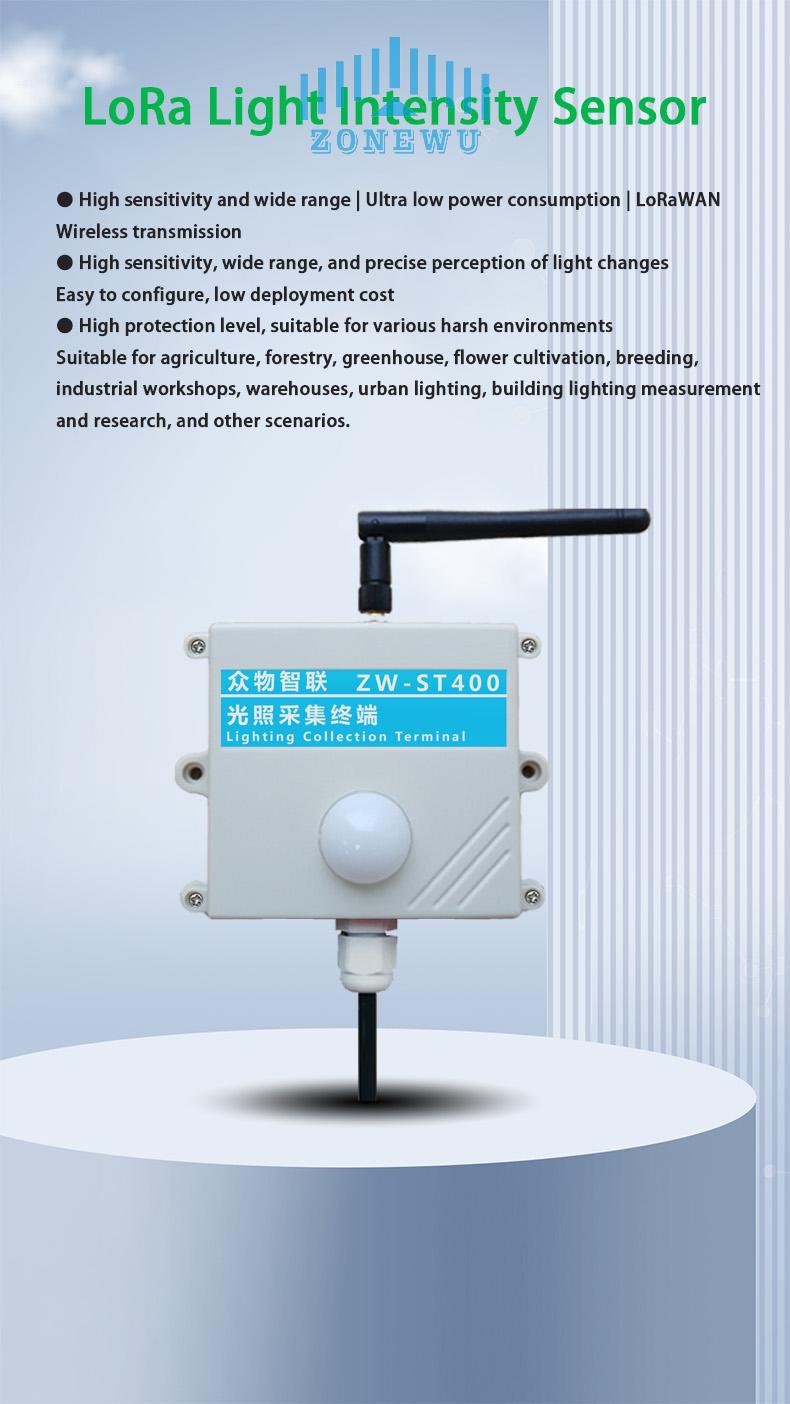

LoRa light intensity sensor

The ZW-ST400 lighting acquisition terminal is a product of LPWAN (Low Power Wide Area Network).Based on LoRaTM spread spectrum modulation technology, terminals can communicate over ultra long distances. The terminal casing is treated with waterproof sealing, suitable for outdoor and relatively humid environments. Real time and stable monitoring of on-site environmental changes enables users to accurately grasp the environmental changes of the same application site, quickly respond, and ensure the stability of the production site environment. Supports remote wireless gateway configuration, with good stability and reliability.

Product details

The ZW-ST400 lighting acquisition terminal is a product of LPWAN (Low Power Wide Area Network).

Based on LoRaTM spread spectrum modulation technology, terminals can communicate over ultra long distances. The terminal casing is treated with waterproof sealing, suitable for outdoor and relatively humid environments. Real time and stable monitoring of on-site environmental changes enables users to accurately grasp the environmental changes of the same application site, quickly respond, and ensure the stability of the production site environment. Supports remote wireless gateway configuration, with good stability and reliability.

This product is widely used in the M2M industry in the IoT industry chain, such as smart agriculture, ecological research in agriculture and forestry, crop disaster prevention, and urban lighting.

<a href=https://www.zonewu.com/en/LoRaWAN-Sensor.html target='_blank'>LoRa</a> light intensity sensor1.jpg

<a href=https://www.zonewu.com/en/LoRaWAN-Sensor.html target='_blank'>LoRa</a> light intensity sensor2.jpg

LoRa light intensity sensor6.jpg


Specifications






Wireless Transmission

Communication Protocol

LoRaWAN,LoRa TDMA Networking

Frequency

CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4

Tx Power

20dBm (915) / 16dBm (868) / 17dBm (470)

Mode

OTAA/ABP Class A



Measurement

Range

0-65535lux

Accuracy

±20%



Operation

Configuration

NFC Configuration via Mobile App、Local configuration of serial port



Physical Characteristics

Power Supply

5-28VDC

Operating Temperature

-30°C to 70°C

Dimensions

90x85x40  mm

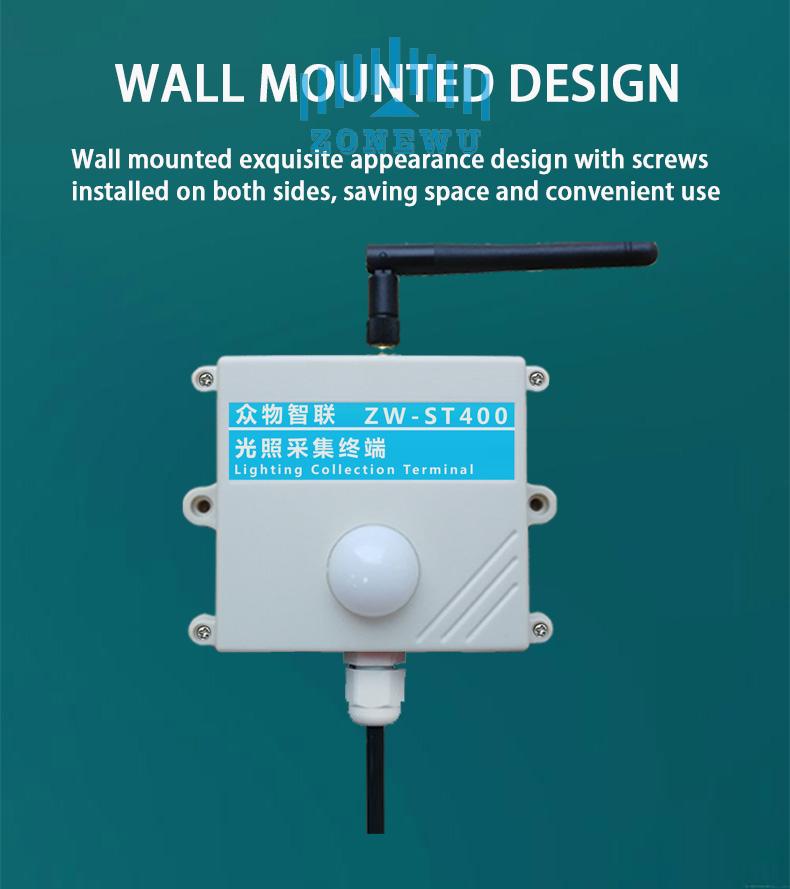

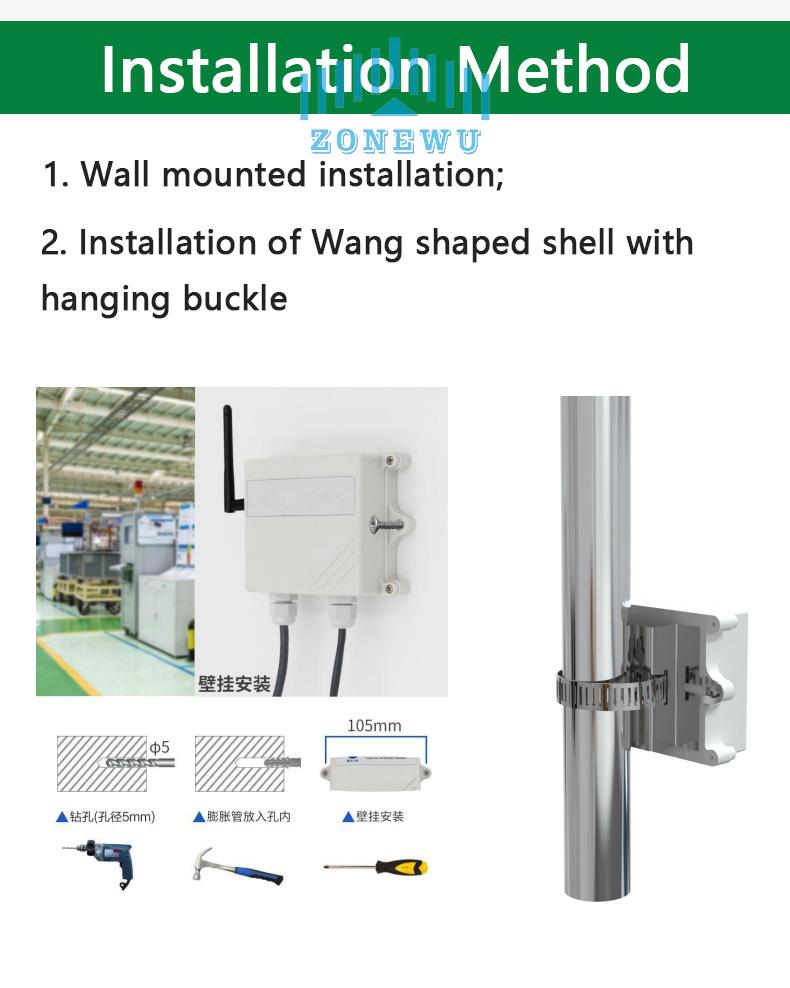

Installation

Wall Mounting
