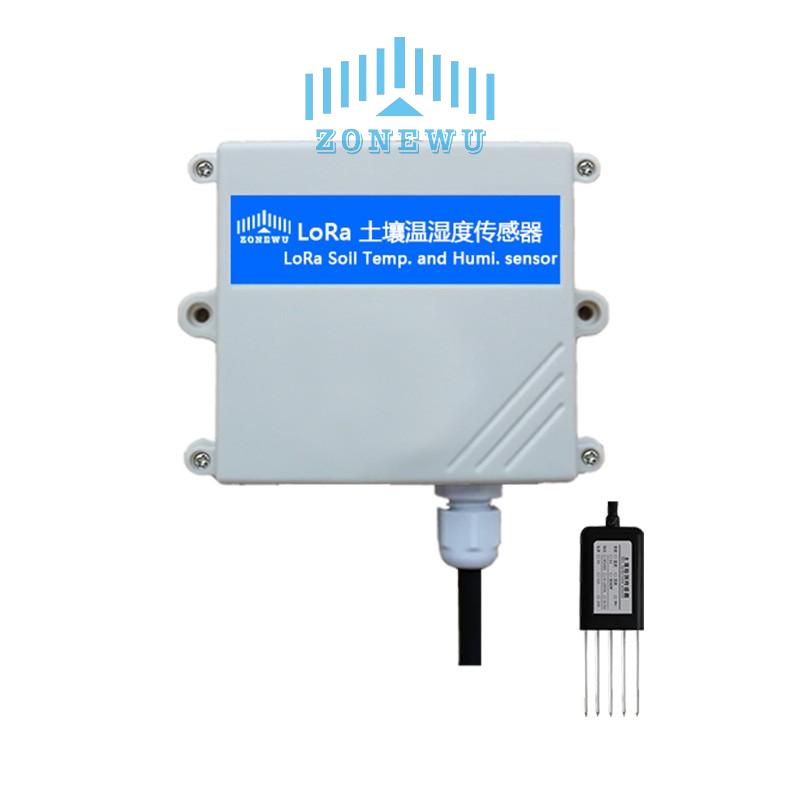

LoRa soil temperature and humidity sensor

Based on LoRaTM spread spectrum modulation technology, terminals can communicate over ultra long distances. A wireless conductivity soil temperature and moisture collection terminal that integrates data collection and monitoring. This sensor has stable performance and high sensitivity, making it an important tool for observing and studying the occurrence, evolution, improvement, and water salt dynamics of saline soil. By measuring the dielectric constant of soil, it is possible to directly and stably reflect the true moisture content of various soils. The mass percentage of measurable soil moisture.

Product details

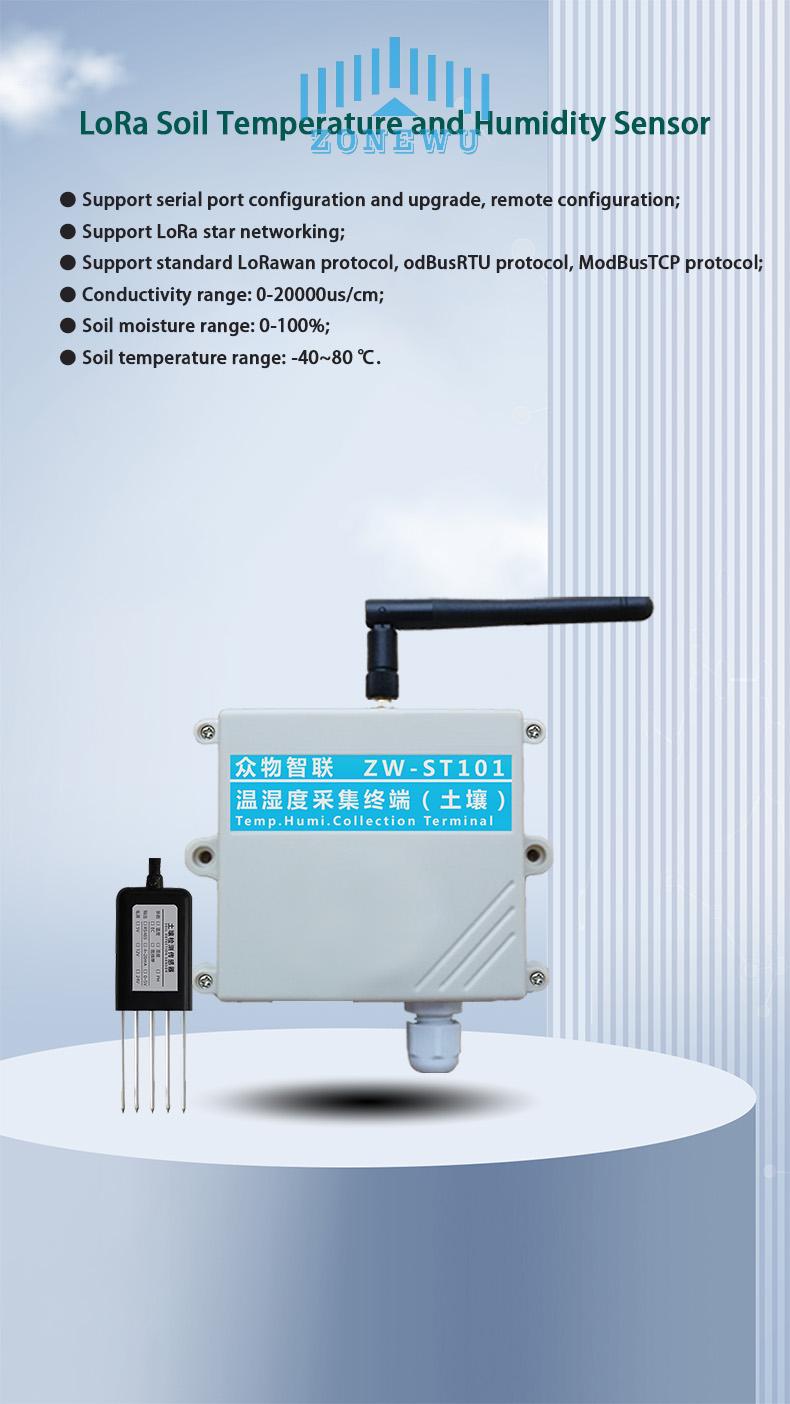

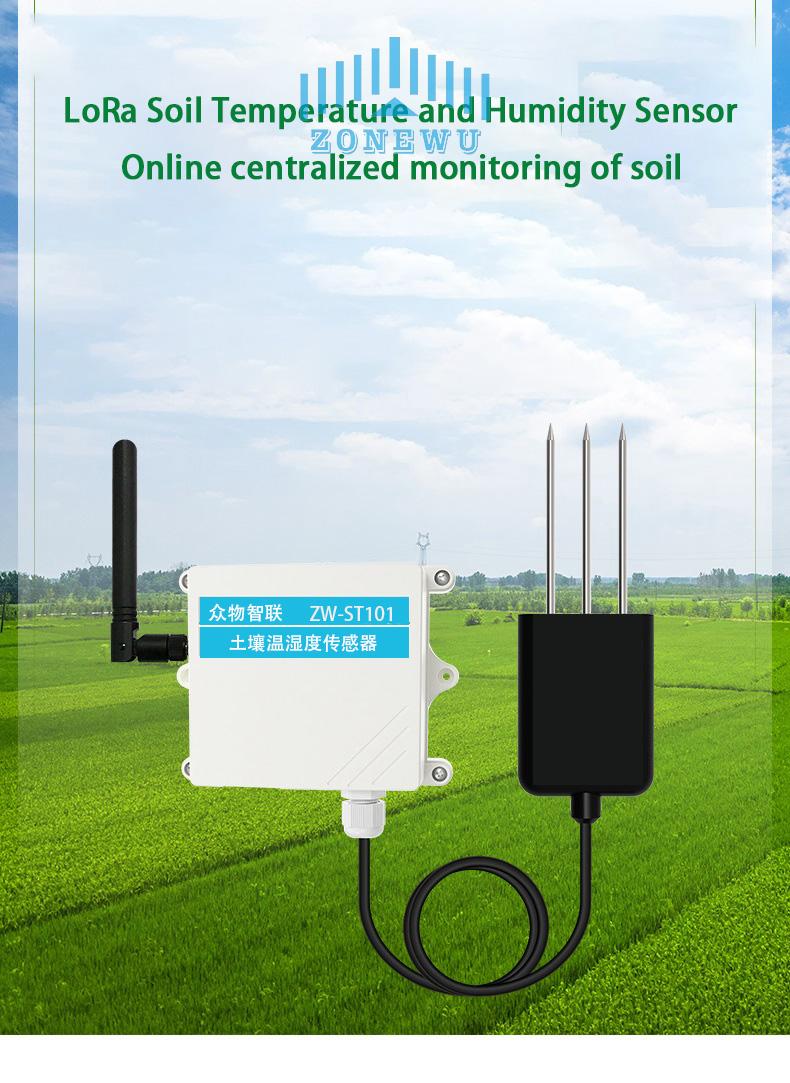

The ZW-ST101 soil temperature and humidity collection terminal is a product of LPWAN (Low Power Wide Area Network).

Based on LoRaTM spread spectrum modulation technology, terminals can communicate over ultra long distances. A wireless conductivity soil temperature and moisture collection terminal that integrates data collection and monitoring. This sensor has stable performance and high sensitivity, making it an important tool for observing and studying the occurrence, evolution, improvement, and water salt dynamics of saline soil. By measuring the dielectric constant of soil, it is possible to directly and stably reflect the true moisture content of various soils. The mass percentage of measurable soil moisture.

This product is widely used in the M2M industry in the IoT industry chain, such as soil moisture monitoring, scientific experiments, water-saving irrigation, greenhouses, flowers and vegetables, grassland pastures, soil rapid testing, plant cultivation, sewage treatment, precision agriculture, and other occasions.


<a href=https://www.zonewu.com/en/LoRaWAN-Sensor.html target='_blank'>LoRa</a> soil temperature and humidity sensor0.jpg

<a href=https://www.zonewu.com/en/LoRaWAN-Sensor.html target='_blank'>LoRa</a> soil temperature and humidity sensor1.jpg

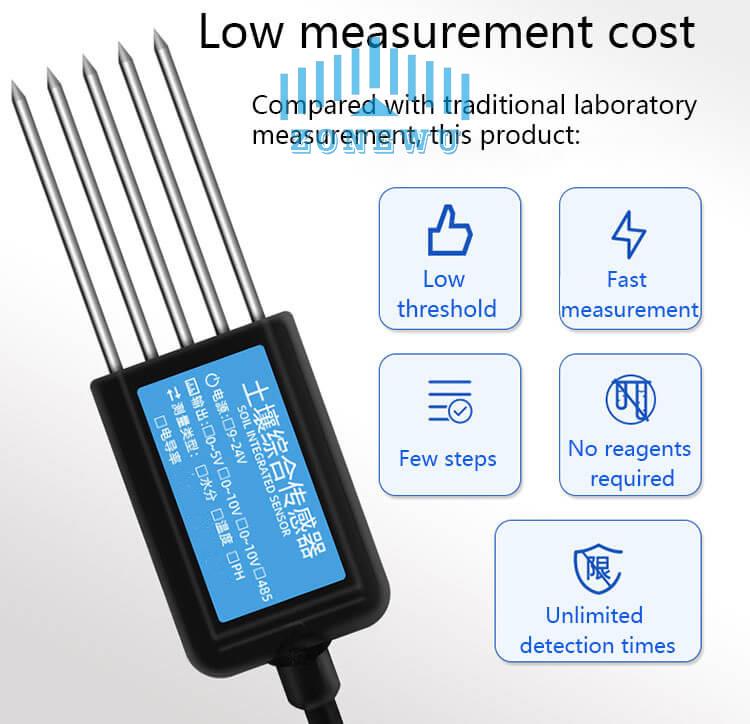

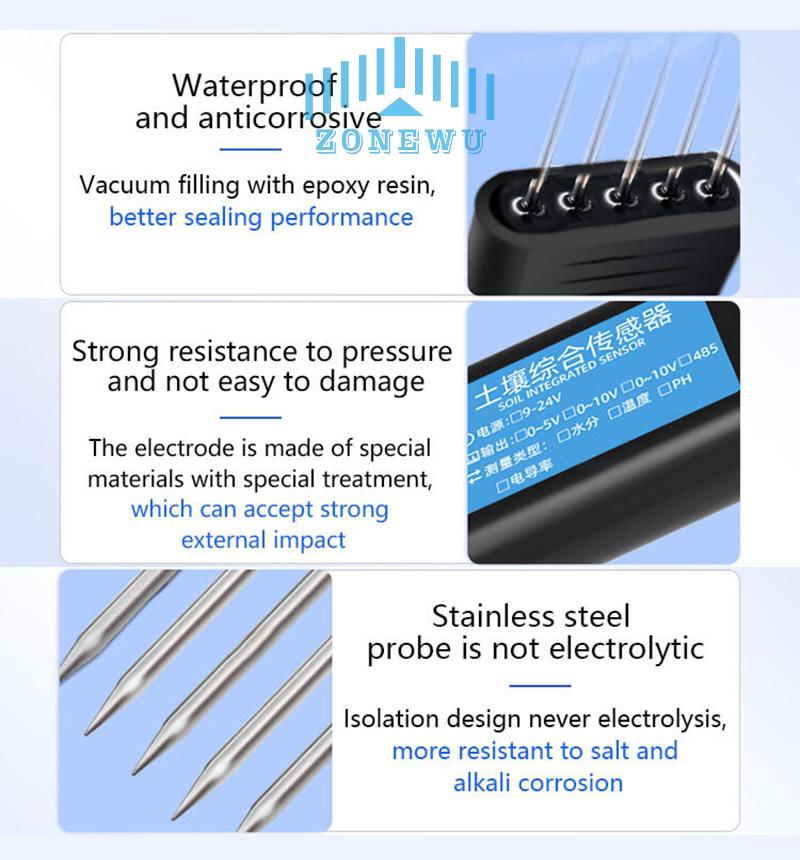

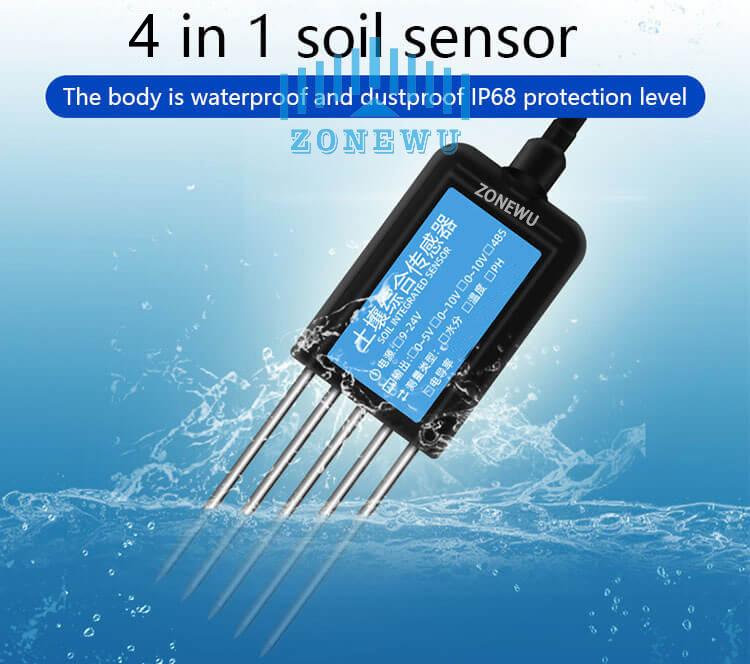

soil integrated transmitter temperature humidity EC ph5.jpgsoil integrated transmitter temperature humidity EC ph6.jpgsoil integrated transmitter temperature humidity EC ph7.jpgsoil integrated transmitter temperature humidity EC ph8-0.jpgsoil moisture sensor10.jpg

LoRa light intensity sensor6.jpg


Specifications






Wireless Transmission

Communication Protocol

LoRaWAN,LoRa TDMA Networking

Frequency

CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4

Tx Power

20dBm (915) / 16dBm (868) / 17dBm (470)

Mode

OTAA/ABP Class A



Measurement

Moisture

Range: 0-100%

Accuracy:  2%(0-50%),3%(50-100%内)

Temperature

Range: -40~+85

Accuracy: ±0.5 ℃

Electrical Conductivity

Range: 0-20000us/cm

Accuracy: ±3%(0-10000us/cm)±5%(10000-20000us/cm)



Operation

Configuration

NFC Configuration via Mobile App



Physical Characteristics

Power Supply

ER26500 Li-SOCl2 8000 mAh battery

Battery Life

3 years

Operating Temperature

-30°C to 70°C

Dimensions

90x85x40  mm

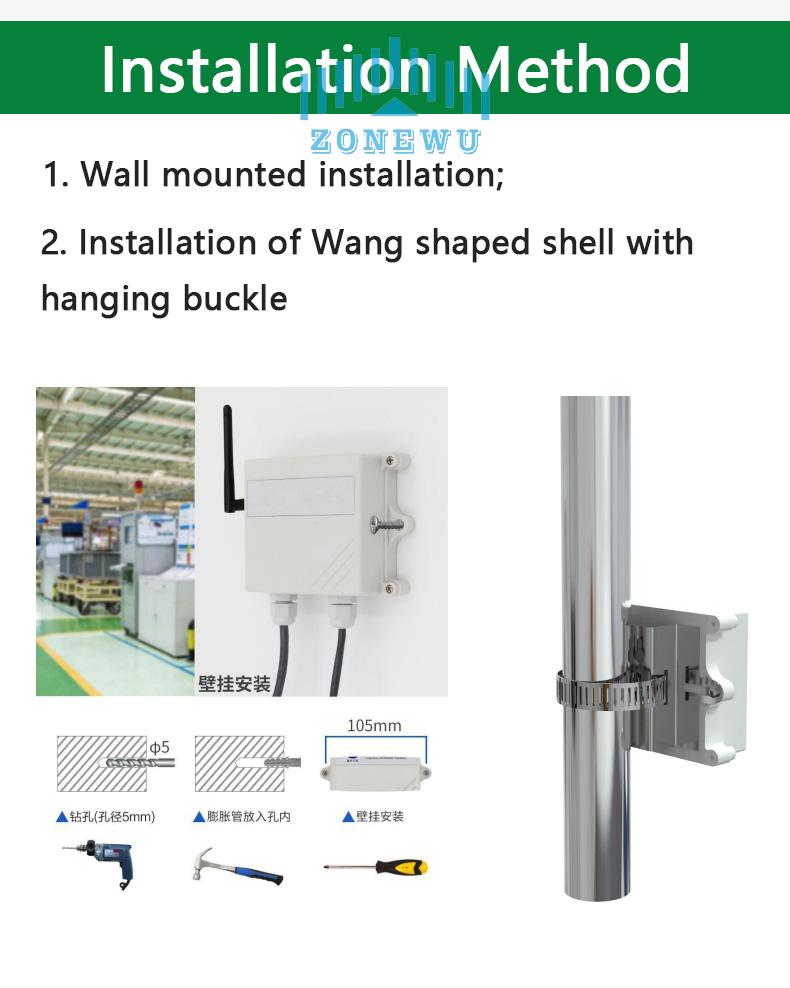

Installation

Wall Mounting
