4G Cat1 DTU data transmission terminal

● Supports docking with multiple sensors;
Integrated RS232, RS485, digital input Multiple communication interfaces such as relay output
● Support data transparent transmission;
Widely applicable to smart industries, building automation, smart energy Scenarios such as smart agriculture
●Support TCP/IP, MQTT protoco.

Product details

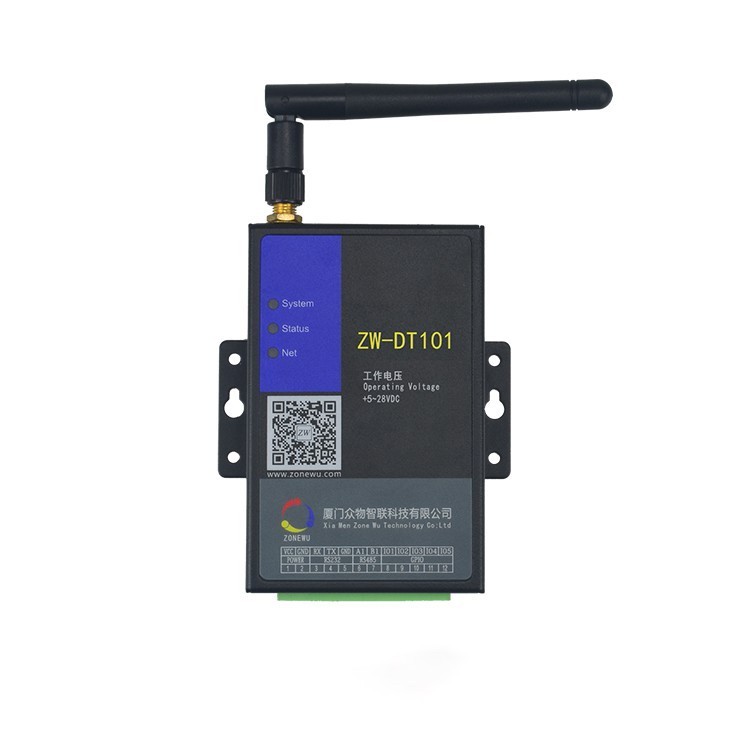

      The ZW-DT101 4G DTU data transmission terminal is a product developed to enable serial devices and network servers to transmit data to each other through a 4G network. Utilize the 4G Cat1 DTU data transmission terminal network to provide users with wireless long-distance low-power data transmission capabilities. This product adopts high-performance industrial grade 32-bit communication processors and industrial grade wireless modules, with strong network coverage and support for high-capacity user access. It provides RS232/RS485 interface with built-in 15KV ESD protection, low-power design, and provides 5 channels of IO, which can achieve functions such as analog input and digital input and output.

       This product is widely used in the M2M industry in the IoT industry chain, such as remote meter reading, smart cities, smart buildings, smart factories, smart firefighting, smart parking, smart homes, smart agriculture, and other fields.

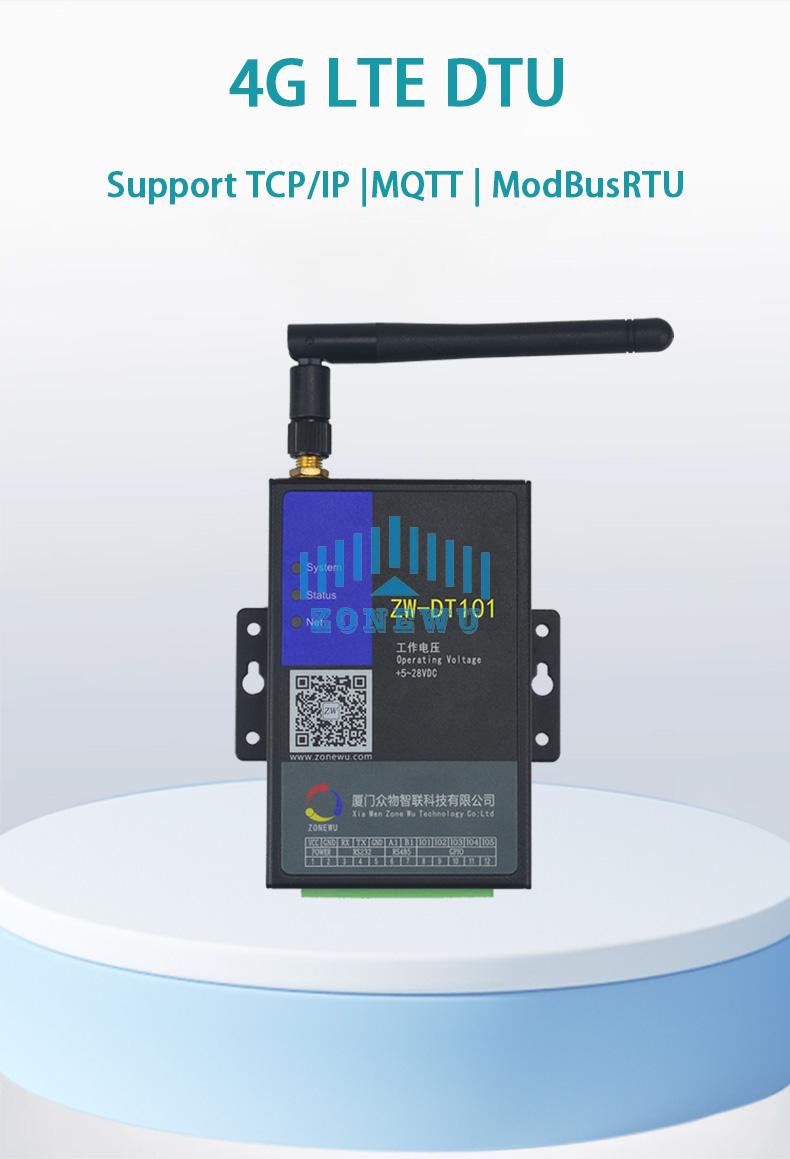

4G DTU1.jpg

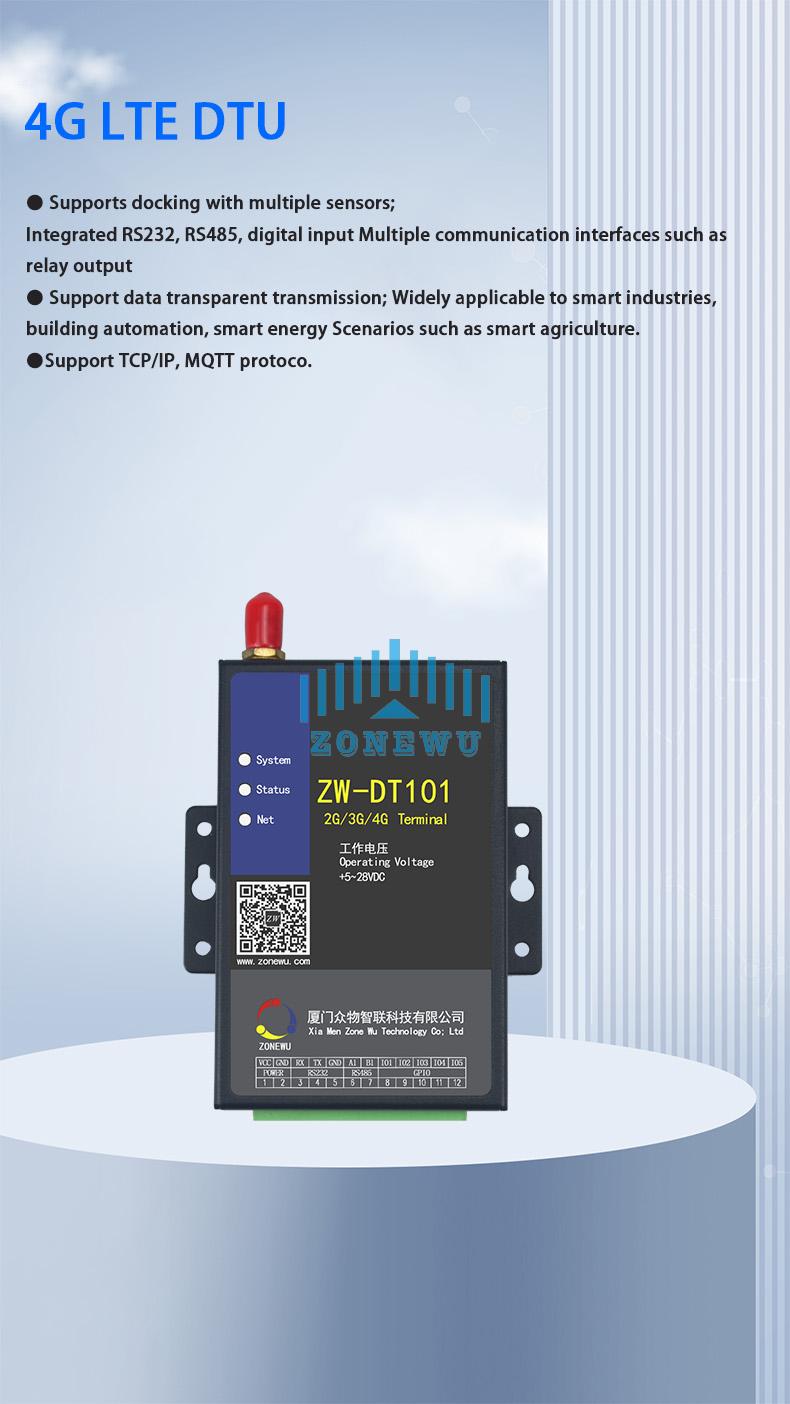

4G DTU2.jpg

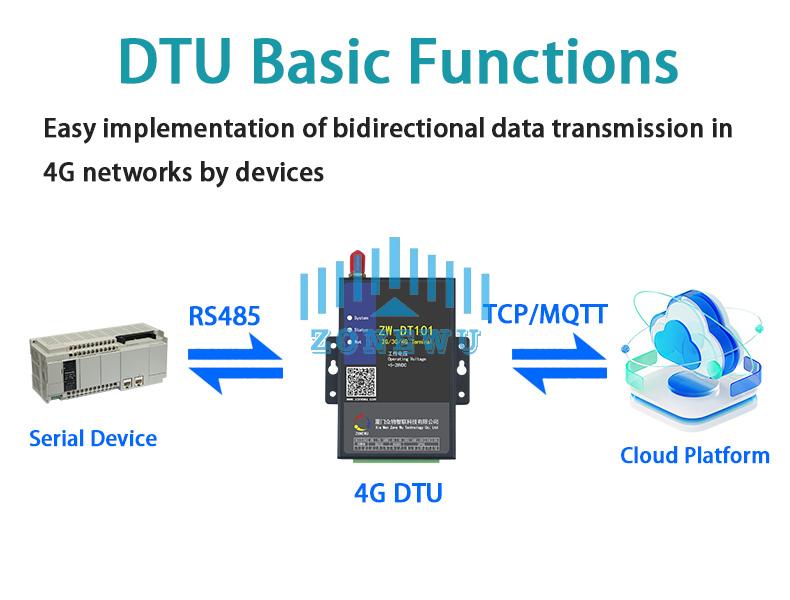

4G DTU3.jpg


Specifications



Wireless Transmission

Technology

4G

4G Mode

LTE-TDD,LTE-FDD

Cellular

TCP/UDP/MQTT/Zonewu IoT Cloud


Data Interfaces

Interface Type

3.5 mm Terminal Block

GPIO

1 × DI + 1 × DO + 3 × AI

Serial Port


Series Rate


Serial port protocol

1 × RS232 + 1 × RS485


4800~115200bps


Modbus RTU(RS485)

Analog Input

3× 4~20 mA(Default), 3 × 0~5 V(Hardware Optional)


Others

Configuration Port

1 × RS232

LED Indicators

1 × Power, 1 × Status,1 ×Run,1 ×Net

Built-in

Watchdog, Timer


Physical Characteristics

Input Voltage


Operating Temperature

5-28VDC


-40°C ~ 70°C (-40℉ to +158℉)

Dimensions

91 × 58.5 × 22 mm (Excluding antennas and mounting components)

Installation

Wall Mounting
