LoRa Wireless I/O Controller

The ZW-ST600 wireless controller is a product of LPWAN (Low Power Wide Area Network).Supporting various networking methods such as wireless networking and star networking based on LoRa technology for time division multiple access protocol, supporting DI digital input detection, supporting control of DO output control, software and hardware WDT watchdog design, dual monitoring of the system to ensure stable operation.

Product details

The ZW-ST600 wireless controller is a product of LPWAN (Low Power Wide Area Network).

Supporting various networking methods such as wireless networking and star networking based on LoRa technology for time division multiple access protocol, supporting DI digital input detection, supporting control of DO output control, software and hardware WDT watchdog design, dual monitoring of the system to ensure stable operation.

This product is widely used in the M2M industry and is widely used in the IoT industry chain, such as smart factories, smart irrigation, agricultural greenhouses, computer rooms, hydrology, station terminals, and other IoT environmental monitoring fields.

LoRa IO acquisition controller1.jpg

LoRa IO acquisition controller2.jpg

LoRa IO acquisition controller3.jpg

LoRa IO acquisition controller4.jpg

Specifications

Wireless Transmission
Communication Protocol	LoRaWAN,LoRa TDMA Networking
Frequency	CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4
Tx Power	20dBm (915) / 16dBm (868) / 17dBm (470)
Mode	OTAA/ABP Class A
Interface
Digital input	5 × DI
Digital Output	5 × DO
RS485	1 ×RS485
Operation
Configuration	Local serial port configuration、Remote configuration
Physical Characteristics
Power Supply	12/24VDC
Operating Temperature	-30°C to 70°C

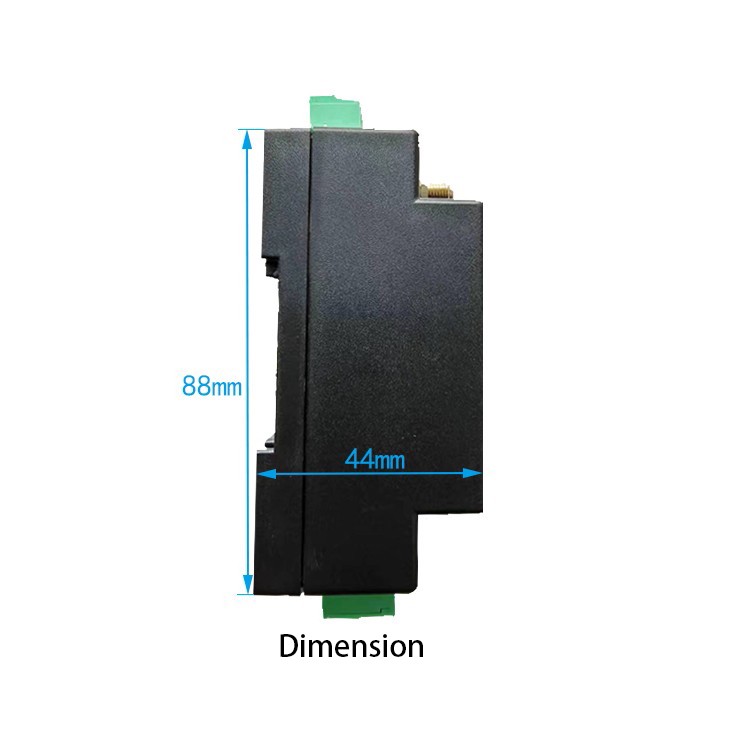

Dimensions	88x55x44 mm
Installation	Rail mounted
