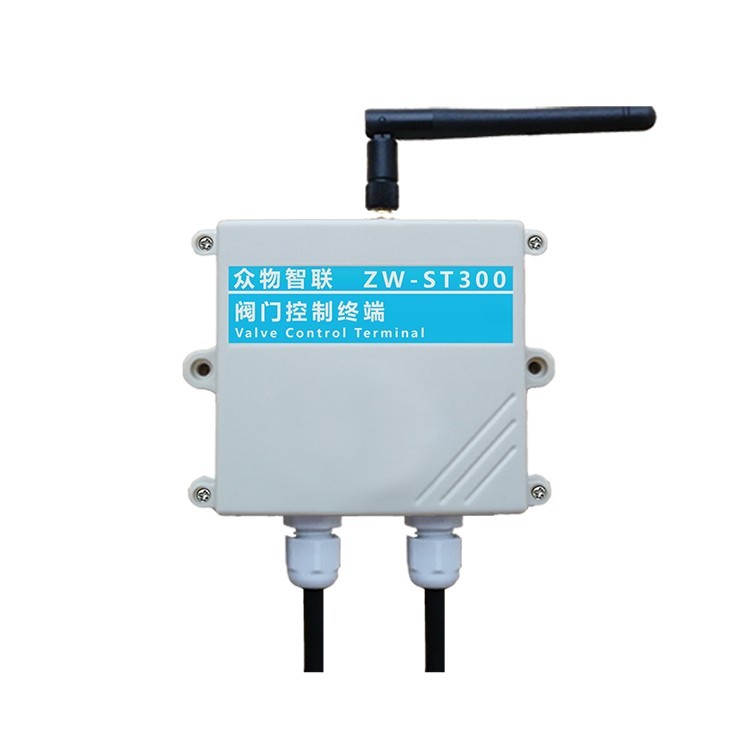

LoRa Wireless Valve Controller

Based on LoRa spread spectrum modulation technology, the terminal can communicate over ultra long distances. Adopting low-power pulse (self holding) intelligent irrigation solenoid valve, with dual filtering to prevent clogging of the electromagnetic core, fully enclosed electromagnetic coil, waterproof, and slow closing function to prevent water hammer and damage to the system. Active threshold reporting, supporting remote wireless gateway configuration, with good stability and reliability.

Specifications






Wireless Transmission

Communication Protocol

LoRaWAN,LoRa TDMA Networking

Frequency

CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4

Tx Power

20dBm (915) / 16dBm (868) / 17dBm (470)

Mode

OTAA/ABP Class A

Interface

Pulse Output

1x Pulse solenoid valve (two wire system, supporting self-locking function)

Digital Output

× 12V output (optional 5V)



Operation

Configuration

NFC mobile app configuration



Physical Characteristics

Power Supply

12/24VDC(Optional solar, battery powered)

Operating Temperature

-30°C to 70°C

Dimensions

90x85x40  mm

Installation

Wall mounted or pole mounted installation
