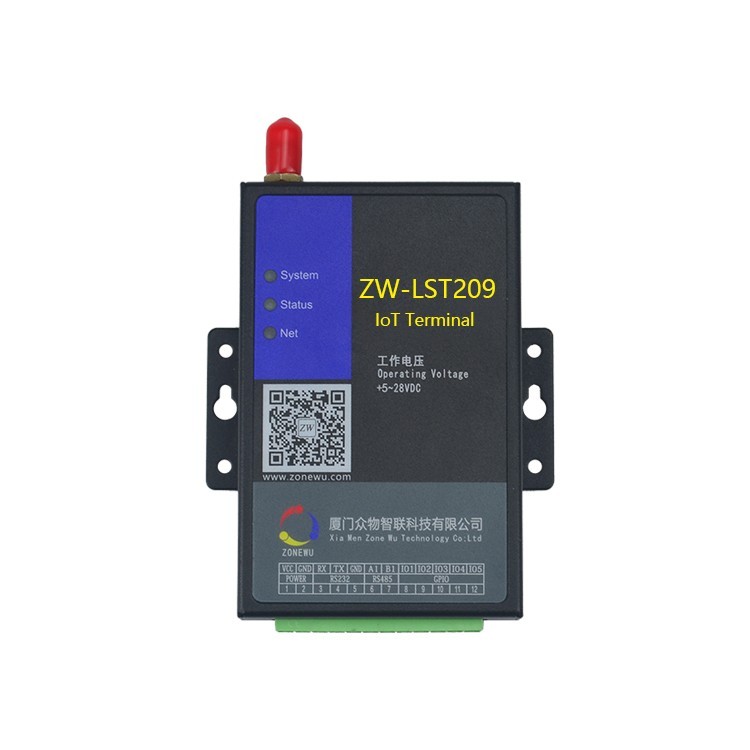

The ZW-LST209 LoRaWAN water meter collection terminal supports up to 8 pulse water meters, with 1 DI, 1 DO, 3 AI and RS232/RS485 Modbus RTU (4800-115200bps). 5-28VDC, watchdog protected, LoRaWAN/LoRa TDMA reporting for remote water meter reading.
| LoRaWAN Wireless · Meter Reading TerminalPulse meter data acquisition terminal connecting up to 8 pulse water meters, with DI/DO/AI and RS232/RS485 Modbus interfaces, wirelessly reported for remote reading.Up to 8 pulse water meters1×DI + 1×DO + 3×AIRS232 + RS485, Modbus RTU5-28VDC, built-in watchdog91×58.5×22 mm wall mount |
| Multi-meter accessConnects up to 8 pulse water meters for centralized collection. | DI/DO/AI interfaces1×DI + 1×DO + 3×AI (4-20mA default, 0-5V optional). |
| Serial & Modbus1×RS232 + 1×RS485, 4800-115200bps, Modbus RTU (RS485), other protocols customizable. | Watchdog protectedBuilt-in watchdog; power, status and LoRa indicators. |
| 5-28VDC supplyWide input voltage 5-28VDC. | Custom supportOEM, ODM and OBM customization available. |
| Terminal type | Pulse meter data acquisition |
| Wireless technology | LoRaWAN, LoRa TDMA Networking |
| Frequency | CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4 |
| Network mode | OTAA/ABP |
| Meter capacity | Up to 8 pulse water meters |
| GPIO | 1×DI + 1×DO + 3×AI |
| Analog input | 3×4-20mA (default), 3×0-5V (hardware optional) |
| Serial port | 1×RS232 + 1×RS485 |
| Serial rate | 4800-115200 bps |
| Protocol | Modbus RTU (RS485), other protocols customizable |
| Configuration port | 1×RS232 |
| Indicators | 1×Power, 1×Status, 1×LoRa |
| Built-in | Watchdog |
| Input voltage | 5-28VDC |
| Operating temperature | -30 to +70 °C |
| Dimensions | 91 × 58.5 × 22 mm (excl. antenna and mounting) |
| Installation | Wall mounting |
| Remote Meter ReadingCollect pulse water meter data without on-site visits. | Smart CommunityBuilding and community meter data collection. |
| Building IntelligenceMeter acquisition for property management. | Industrial M2MWireless meter logging in industrial and utility networks. |
| Product Manual | ZONEWU Configuration Tool |
