LoRa meter acquisition Terminal

Based on LoRa spread spectrum modulation technology, the terminal can communicate over ultra long distances. A wireless meter collection terminal that integrates data collection and monitoring. Using terminal interface mode, the value of the electricity meter can be directly collected. Support the connection of multiple electricity meter acquisition, and can support the acquisition of eight electricity meters. Support remote power on/off function.

Product details

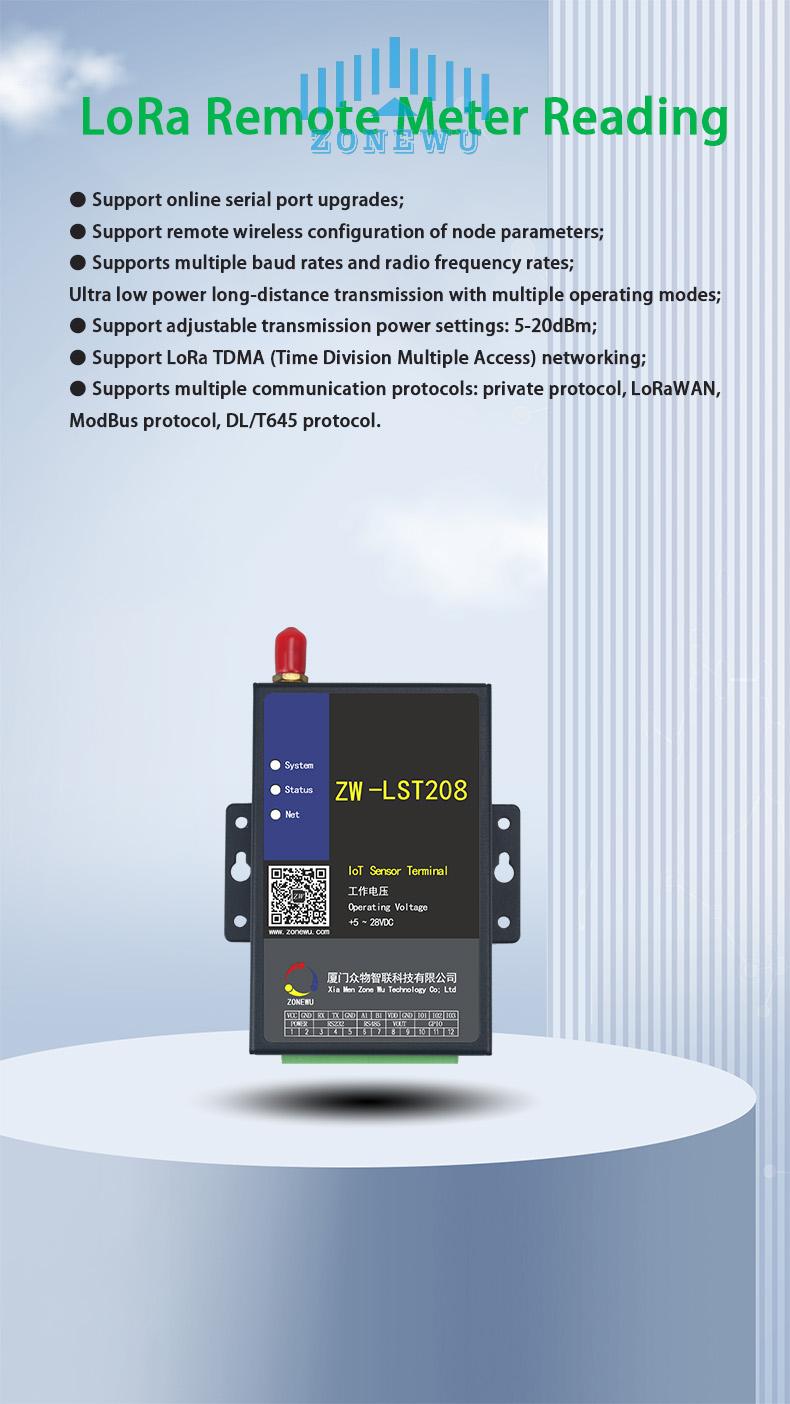

The ZW-LST208 electricity meter acquisition terminal is a product of LPWAN (Low Power Wide Area Network).

Based on LoRaTM spread spectrum modulation technology, terminals can communicate over ultra long distances. A wireless meter collection terminal that integrates data collection and monitoring. By using terminal interface mode, the value of the electricity meter can be directly collected. Support connecting multiple electricity meters for collection, up to eight electricity meters for collection. Support remote power on/off function. Active threshold reporting, supporting remote wireless gateway configuration, with good stability and reliability.

This product is widely used in the M2M industry in the IoT industry chain, such as smart communities, remote meter reading, and building intelligence.

Specifications

Wireless Transmission
Technology	LoRaWAN、LoRa TDMA Networking
Frequency	CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4
Mode	OTAA/ABP
Data Interfaces
Interface Type	3.5 mm Terminal Block
GPIO	1 × DI + 1 × DO + 3 × AI
Serial Port Series Rate Serial port protocol	1 × RS232 + 1 × RS485 4800~115200bps Modbus RTU（RS485）,Other protocols can be customized
Analog Input	3× 4~20 mA（Default）, 3 × 0~5 V(Hardware Optional)
Others
Configuration Port	1 × RS232
LED Indicators	1 × Power, 1 × Status,1 × LoRa
Built-in	Watchdog
Physical Characteristics
Input Voltage Operating Temperature	5-28VDC -30°C ~ 70°C (-22℉ to +158℉)
Dimensions	91 × 58.5 × 22 mm (Excluding antennas and mounting components)
Installation	Wall Mounting
