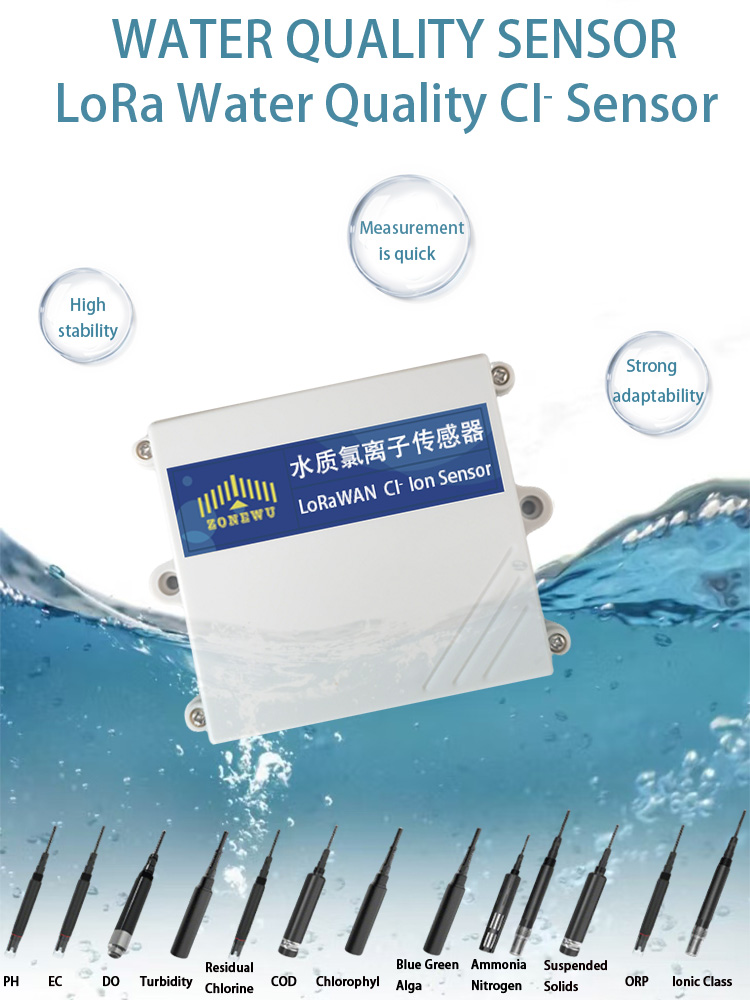

The LoRa water quality chloride ion sensor is a device used for real-time and precise measurement of chloride ion concentration in water bodies. It combines chloride ion sensing technology with LoRa wireless communication technology.
ZONEWU LoRaWAN Integral Chlorine Ion Transmitter
XiaMen ZONEWU LoRaWAN Integral Chlorine Ion Transmitter is a wireless sensor used to measure magnesium ion content in water.
XiaMen ZONEWU Wireless LoRaWAN Water Turbidity Sensor Sensor Features:
ZONEWU Compatible with LoRaWAN Protocol v1.0.3 (OTAA Class A mode).
Low Power Consumption & Easy Maintenance: Low-power design + long-life electrode (reduces on-site replacement and maintenance frequency); Supports remote parameter configuration and fault early warning (lowers manual operation and maintenance costs).
Wireless Long-Distance Transmission: Leverages LoRa technology for ultra-long-distance data transmission, solving wiring difficulties and high costs of traditional wired transmitters. Ideal for large-scale monitoring scenarios such as rivers and large chemical parks.
Application Scenarios Suitable for industrial and civil water quality monitoring needs, including:
Chloride ion monitoring in industrial circulating water (prevents pipeline corrosion and scaling).
Chloride ion emission detection in chemical wastewater.
Chloride ion concentration control in aquaculture water.
Water quality screening in municipal water supply and drinking water sources.
Product Parameters
Power Specifications | Rated Voltage:12VDC,Scope:DC10~28V | |
Rated input current: 500mA | ||
Interface specification: DC 5.5mm × 2.1mm (positive inside and negative outside) | ||
Measuring principle | Ion selection method | |
Range and Resolution | 0~3500.0 mg/L（default） | 0.1mg/L,0.1℃ |
0~35000 mg/L | 1mg/L,0.1℃ | |
Accuracy | ±5% of reading; ±0.3℃ | |
Minimum Detection Limit | 0.1/1 | |
Temperature Compensation | Automatic temperature compensation (Pt1000) | |
Working Conditions | 0～50℃, ≤0.2MPa, pH: 2～12 | |
Electrode Usage Cycle | 1 year | |
Transmitter Line length | Default 5m (other lengths can be customized) | |
Frequency | CN470/IN865/EU868/RU864/US915/AU915/ KR920/AS923-1&2&3&4 | |
Mode | OTAA Class A/C(Default ) | |
Reporting cycle | 10min(Default ) | |
Communication Protocol | LoRaWAN,LoRa TDMA Networking | |
Equipment information (Reference) | AppEUI：331341E186891989 DevEUI：aaaa202404150001 AppKey：5572404c696e6b4c6f526132330313823 MAC Version: LoRaWAN 1.0.3 | |
Product Applications
1.High sensitivity and accuracy:The LoRaWAN Water Turbidity Sensor adopts advanced electrochemical principles, can accurately measure the concentration of Chlorine Ion ions in water samples.
2.Real-time monitoring: The sensor can realize real-time monitoring and data analysis, and timely reflect the dynamic situation of water quality.
3.High stability and reliability: The sensor has high stability and reliability, can be continuously monitored for a long time, reduce the frequency of calibration and maintenance.
4.Automatic calibration: The sensor has an automatic calibration function, reducing the frequency and complexity of manual calibration.
5.low power consumption and anti-interference design: The sensor has low power consumption, and the internal circuit has anti-interference design to ensure the accuracy of measurement.
6.easy maintenance: The sensor structure is simple, easy to disassemble and clean, convenient for users to maintain and maintain.
Common knowledge of LoRaWAN Water Turbidity Sensor
How can we extend electrode life?
After using the sensor, please rinse the gearbox head with clean water, cover it with a protective cover, and dry it to prolong the life of the electrode.
What kind of environment can't you use?
Can't be used in water containing organic solvents. Because there are too many interfering ions in seawater and their concentrations are high, it is not recommended to use this device in seawater.
How to preserve your devicea?
Equipment that is not used for a long time should be kept dry, and equipment for short storage should be maintained in a standard diluted solution of each ion.
Application Scenarios
Aquaculture
Monitor the Turbidity ion concentration of aquaculture bodies to ensure the health of aquaculture organisms and the stability of water quality.
Seawater Monitoring
Monitoring the concentration of Turbidity ions in seawater is conducive to marine ecological research and the regulation of seawater aquaculture.
Industrial Wastewater
Monitoring the concentration of Turbidity ions in industrial wastewater helps with wastewater treatment and achieving compliance with discharge standards.
FAQ
1.Are you manufacture?
A:Yes,we are Tranmitter manufacturer and exporter in China with more than 10 years of CE,ROHS,FCC,ISO and 11 patents experience.
2.Do you offer OEM services?
A:Yes,we can provide you with OEM services and design housings and logos.
3.DO you offer free samples?
A:Sorry,we don't offer free samples.After ordering in bulk,we will deduct the sample fee from the second order.
Why Choose ZONEWU
Professional IoT Sensor Manufacturer
Specializes in R&D, production, and sales of IoT sensors with strong technical expertise
Products certified with international standards (e.g., CE, RoHS), ensuring high quality and long lifespan.
Products serve diverse industries such as water quality monitoring, environmental monitoring, and industrial automation, offering strong market adaptability.
Utilizes cutting-edge communication technologies like LoRaWAN and NB-IoT for remote, low-power data transmission.
Provides tailored products and OEM/ODM services to meet diverse application needs.
