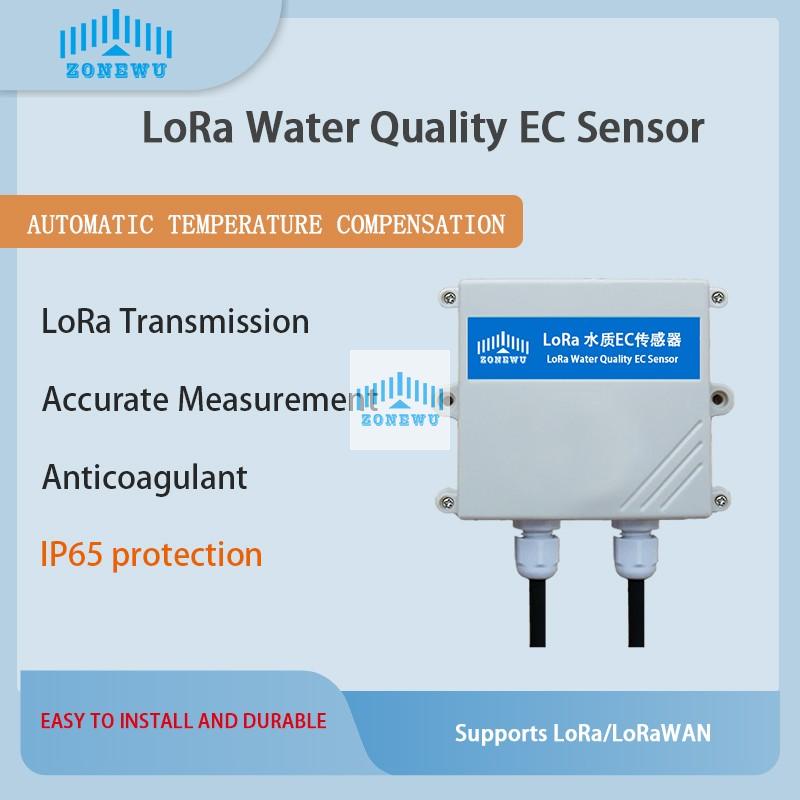

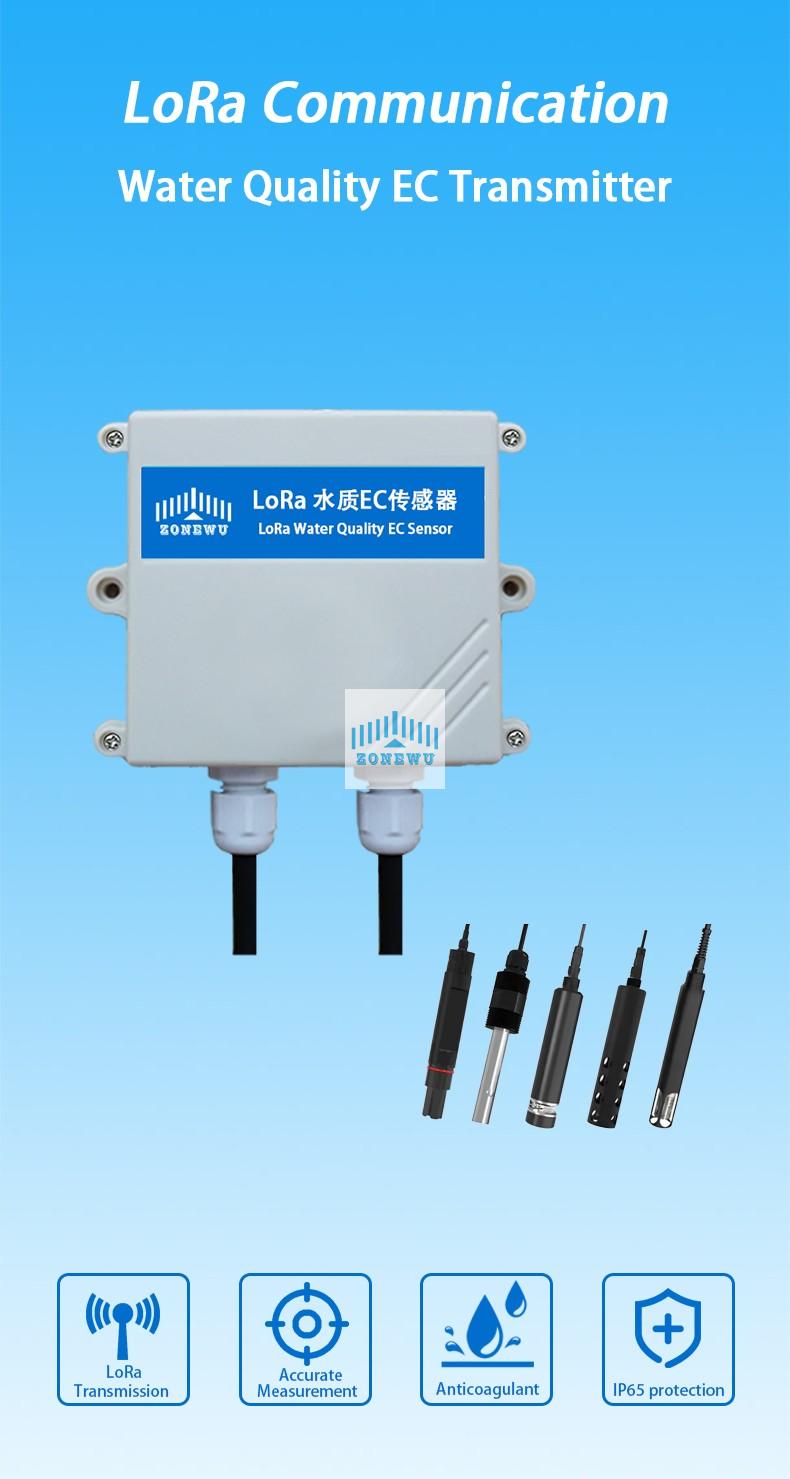

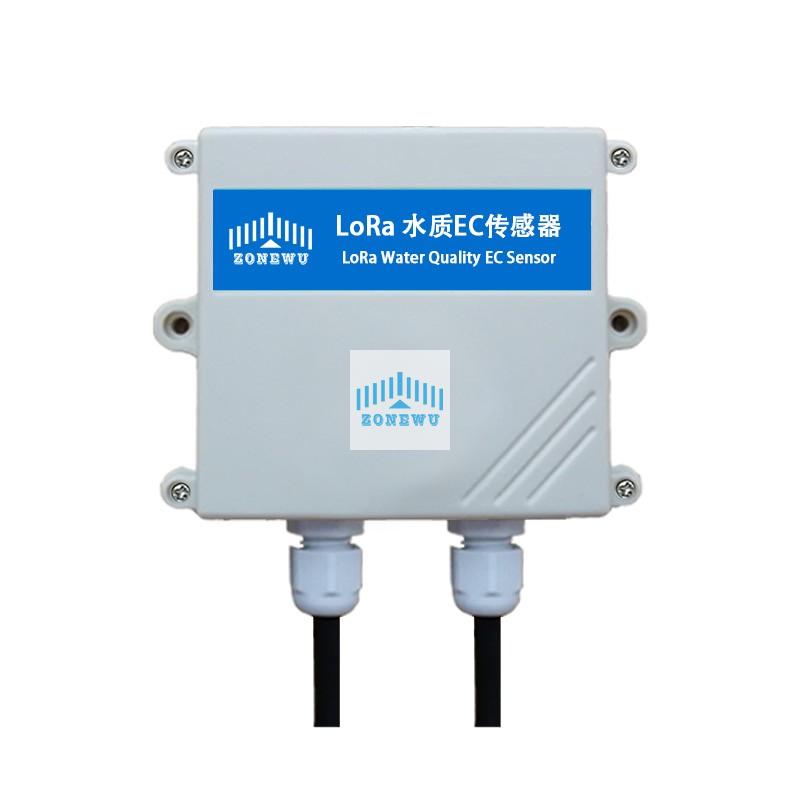

LoRaWAN water quality EC sensor

The LoRa water quality EC sensor is a water conductivity sensor used to measure the conductivity of solutions. It has an automatic temperature compensation function, which can compensate the conductivity of the current temperature to the specified temperature. It can be widely used for continuous monitoring of conductivity values of aqueous solutions in areas such as water quality, aquaculture, sewage treatment, environmental protection, pharmaceuticals, food, and tap water. Supports LoRa TDMA ad hoc networks and standard LoRaWAN protocols.

Specifications






Attribute

Customized support

OEM, ODM, OBM

Name

Industrial LoRa water quality EC sensor

Description

water quality sensor

Communication Protocol

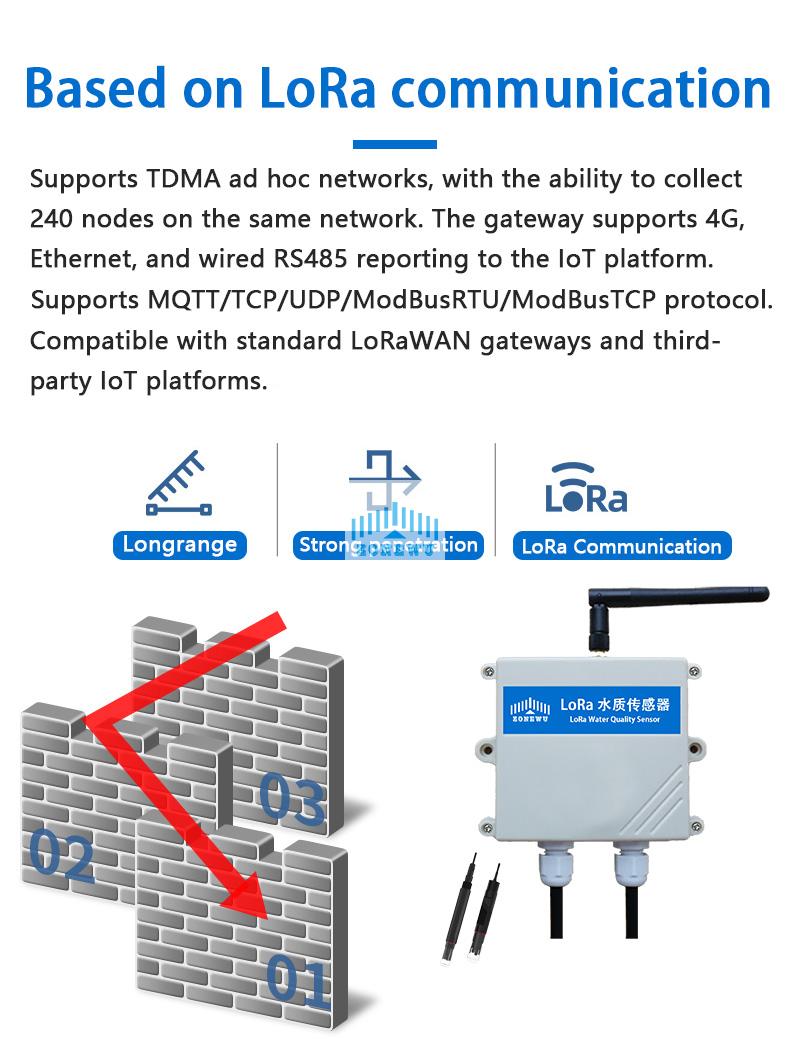

LoRaWAN,LoRa TDMA Networking

Frequency

CN470/IN865/EU868/RU864/US915/AU915/

KR920/AS923-1&2&3&4

Tx Power

20dBm (915) / 16dBm (868) / 17dBm (470)

Mode

OTAA/ABP Class A

Sensor parameters

Measuring range

1~2000μS/cm

Resolution

0.1μS/cm

Accuracy

±1%FS

Physical Characteristics

Power Supply

12/24VDC

Operating Temperature

-30°C to 70°C

Dimensions

90x85x40  mm

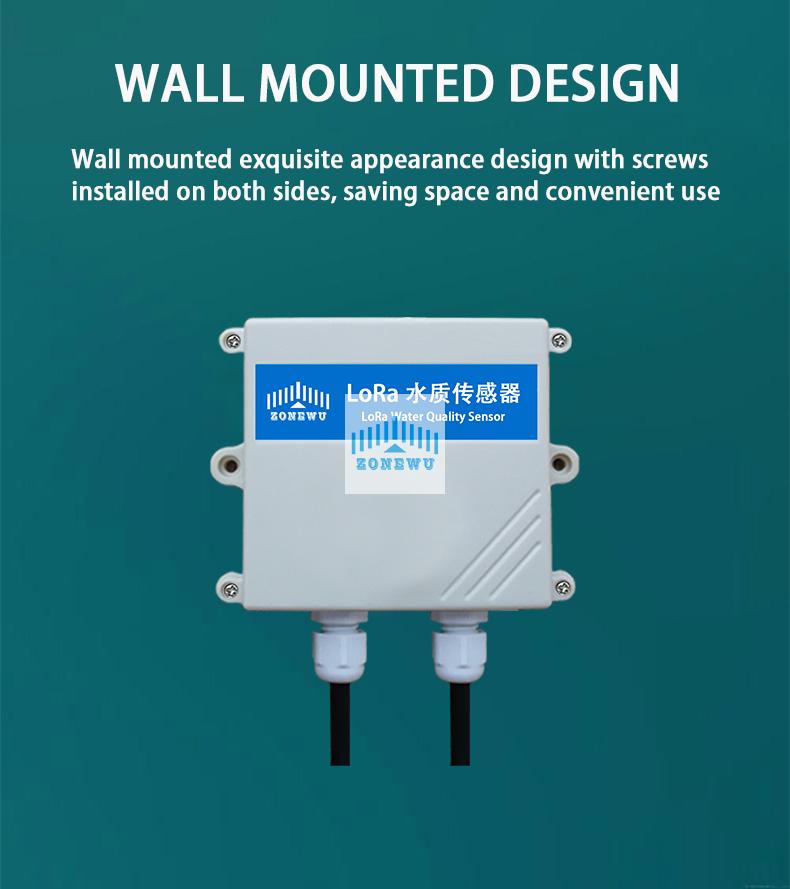

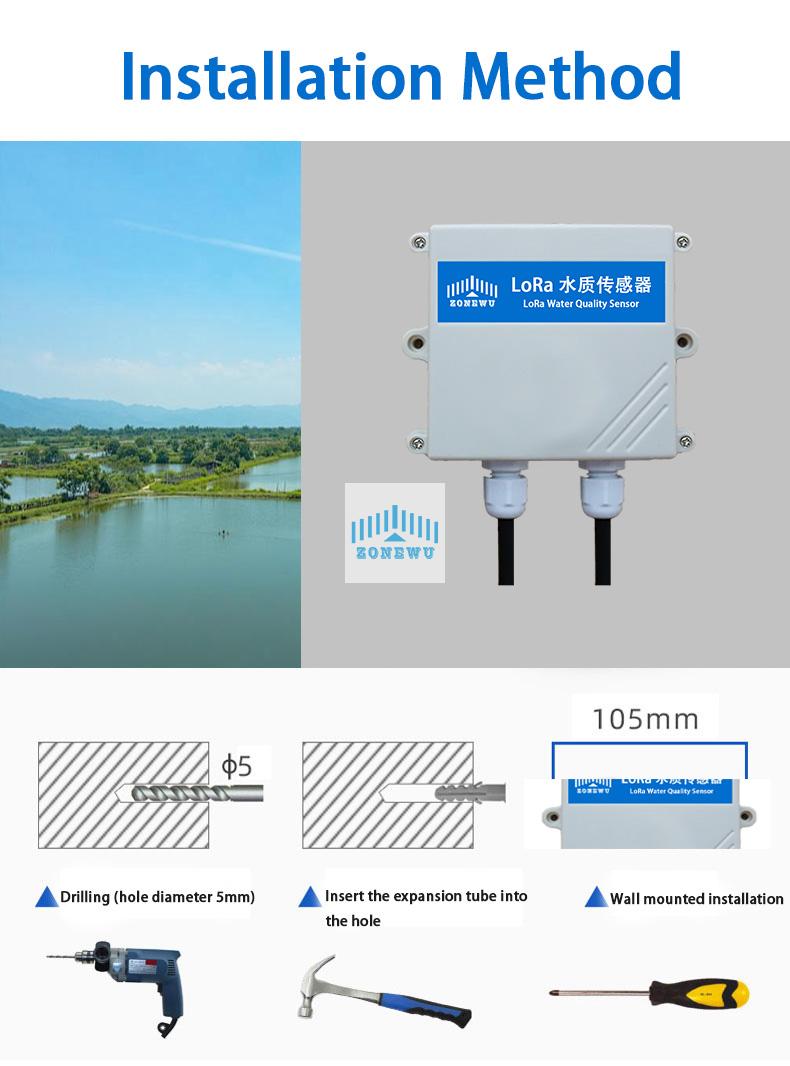

Installation

Wall Mounting
