Online LoRaWAN multi-parameter self-cleaning digital, the sensor adopts an integrated design, reliable operation and user-friendly. It can simultaneously measure up to eight parameters, including dissolved oxygen, COD, pH, ORP, conductivity/salinity, ammonia nitrogen and turbidity. This device adopts LoRaWAN wireless technology and complies with standard protocols, allowing data to be directly transmitted to the collection platform.

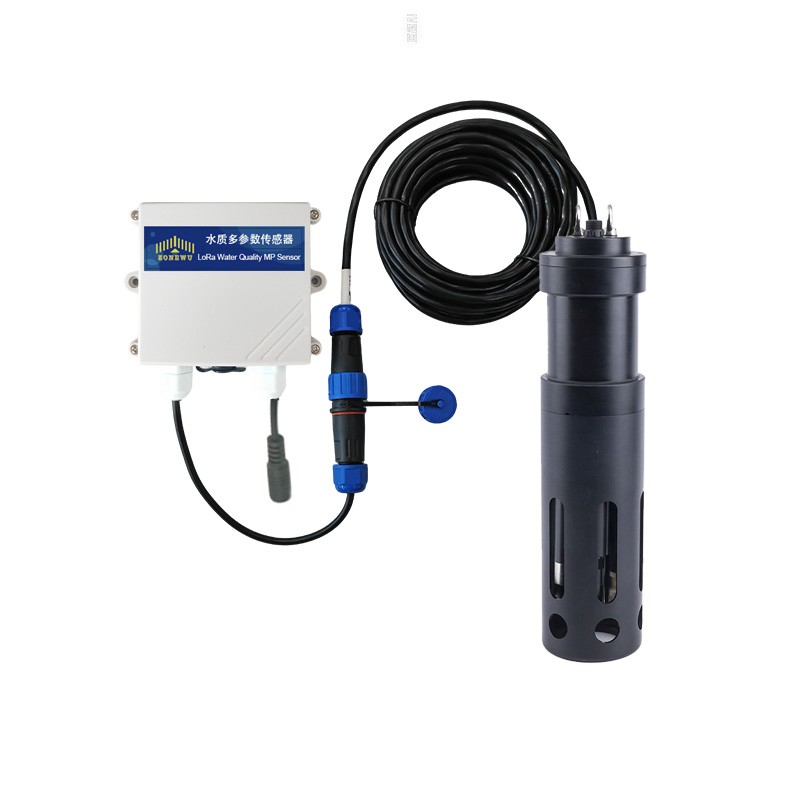

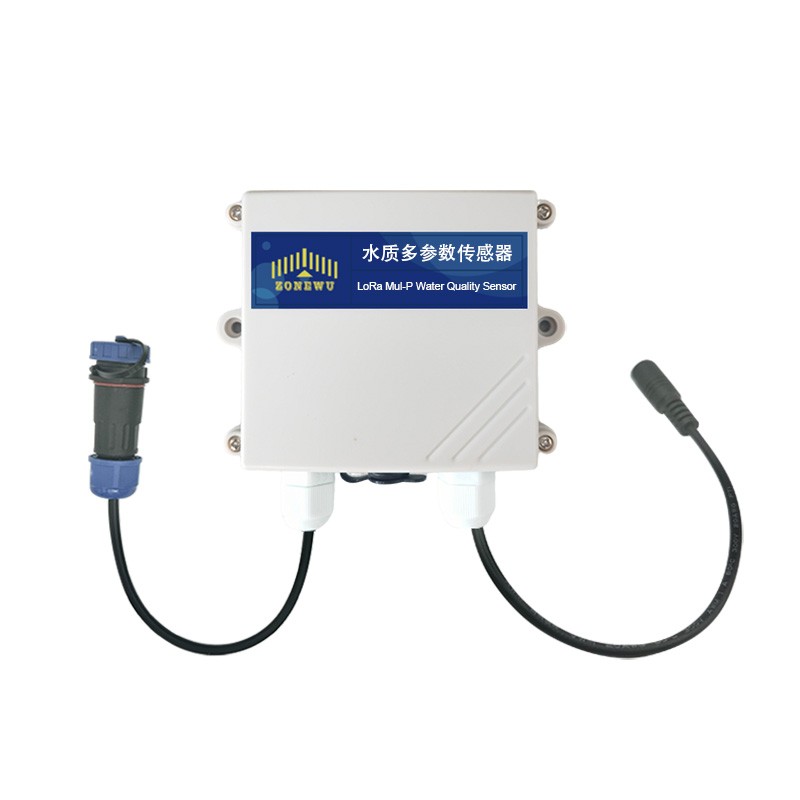

LoRaWAN Integral Multi Parameter Sensor
The core value of the LoRaWAN multi-parameter water quality sensor lies in "achieving real-time remote monitoring of water quality in a low-cost and low-power manner".
Its application has extended from environmental protection supervision to agriculture, people's livelihood and other fields, becoming a key tool for water environment management to "shift from passive response to active prevention".
With the iteration of technology, it will play a more important role in "smart water conservancy", "smart environmental protection" and "smart agriculture", and help achieve refined and intelligent governance of water environment.
LoRaWAN parameters:
| Power Supply | DC12/24V |
| Weight | 150g |
| Frequency | CN470/IN865/EU868/RU864/US915/AU915/ KR920/AS923-1&2&3&4 |
| Mode | OTAA Class C |
| Reporting cycle | 10min(Default ) |
| Communication Protocol | LoRaWAN,LoRa TDMA Networking |
Equipment information (Reference) | AppEUI：331341E186891989 DevEUI：aaaa202404150001 AppKey：5572404c696e6b4c6f52613230313823 MAC Version：LoRaWAN 1.0.3 |
| Storage Temperature | 0～40℃ |
| Operating Conditions | 0～40℃, ≤0.2MPa |
| Power Supply | 12VDC±5% |

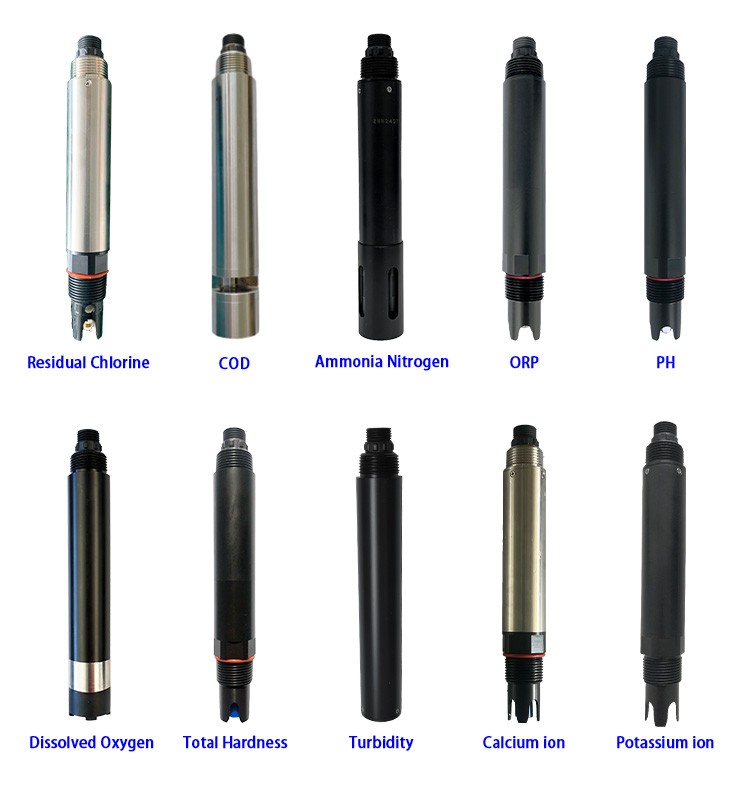

Optional Water quality multi-parameter sensor:
| Sensor Type | Parameter | Range/Accuracy |
| Dissolved Oxygen Sensor | Measurement Range | 0～20mg/L |
| Accuracy | ±2% | |
| Resolution | 0.01mg/L | |
| Turbidity Sensor | Measurement Range | 0～200NTU；0～1000NTU |
| Accuracy | ±3% or ±2NTU (0～200NTU)； | |
| ±5% or ±3NTU (0～1000NTU) | ||
| Resolution | 0.1NTU | |
| Conductivity/Salinity Sensor | Measurement Range | 0～5000μS/cm；0～200mS/cm；0～70PSU |
| Resolution | 1μS/cm (0～5000μS/cm)； | |
| 0.1mS/cm (0～200mS/cm)； | ||
| 0.1PSU (0～70PSU) | ||
| Accuracy | ±1.5% | |
| COD Sensor | Measurement Range (COD) | 0～200mg/L (equivalent to KHP)； |
| 0～500mg/L (equivalent to KHP) | ||
| Measurement Range (Turbidity) | 0～100NTU；0～200NTU | |
| COD Accuracy | ±5% | |
| COD Resolution | 0.1mg/L | |
| Turbidity Accuracy | ±5% | |
| Turbidity Resolution | 0.1NTU | |
| pH Sensor | Measurement Range | 0～14 |
| Accuracy | ±0.1 | |
| Resolution | 0.01 | |
| ORP Sensor | Measurement Range | -1500mV～+1500mV |
| Accuracy | ±6mV | |
| Resolution | 1mV | |
| Ammonia Nitrogen Sensor | Measurement Range | 0~100mg/L or 0~1000mg/L |
| Accuracy | ±10% of reading or ±1mg/L (whichever is larger) | |
| Resolution | 0.01mg/L or 0.1mg/L | |
| Temperature Sensor | Measurement Range | 0～50℃ |
| Accuracy | ±0.3℃ | |
| Resolution | 0.1℃ |

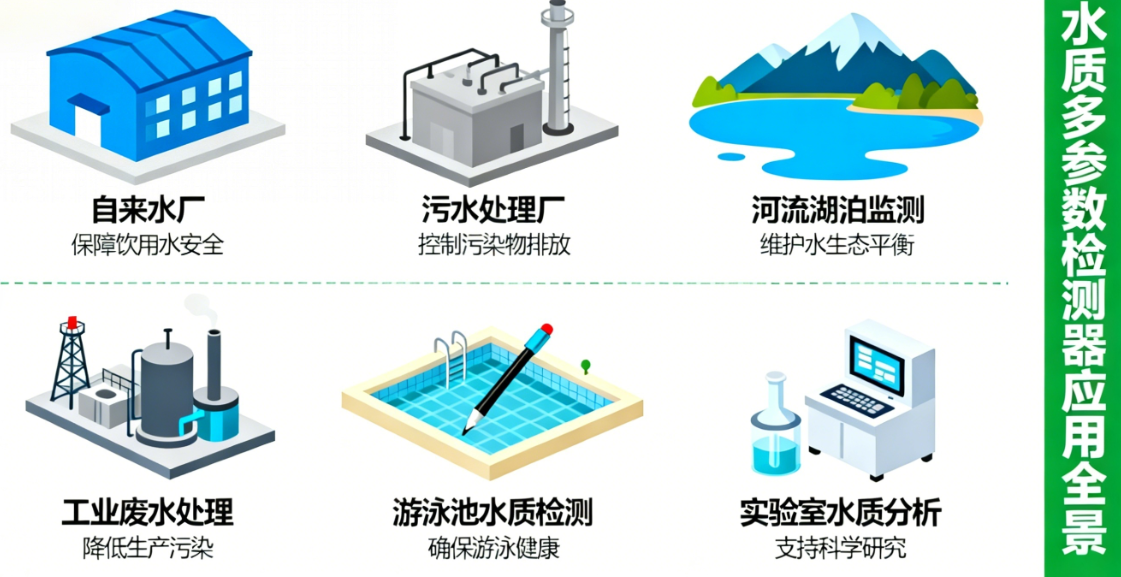

Product Applications：
Industrial wastewater supervision: Installed at the enterprise's sewage outlet, it monitors COD, heavy metals, etc., to ensure that the wastewater is discharged up to standard.
Aquaculture management: It is used in ponds and cages to monitor dissolved oxygen, nitrite, etc., optimize the aquaculture environment and reduce the death of fish and shrimp.
Natural water body monitoring: It is used in rivers, lakes, reservoirs and oceans to monitor dissolved oxygen, ammonia nitrogen, etc., and to warn of ecological problems such as algal blooms and black and odorous water bodies.
Application Scenarios：
Aquaculture：
Monitor the calcium ion concentration of aquaculture bodies to ensure the health of aquaculture organisms and the stability of water quality.
Seawater Monitoring：
Monitoring the concentration of calcium ions in seawater is conducive to marine ecological research and the regulation of seawater aquaculture.
Industrial Wastewater：
Monitoring the concentration of calcium ions in industrial wastewater helps with wastewater treatment and achieving compliance with discharge standards.
FAQ：
1.Are you manufacture?
A:Yes,we are Tranmitter manufacturer and exporter in China with more than 10 years of CE,ROHS,FCC,ISO and 11 patents experience.
2.Do you offer OEM services?
A:Yes,we can provide you with OEM services and design housings and logos.
3.DO you offer free samples?
A:Sorry,we don't offer free samples.After ordering in bulk,we will deduct the sample fee from the second order.
Why Choose ZONEWU：
Professional IoT Sensor Manufacturer
Specializes in R&D, production, and sales of IoT sensors with strong technical expertise
Products certified with international standards (e.g., CE, RoHS), ensuring high quality and long lifespan.
Products serve diverse industries such as water quality monitoring, environmental monitoring, and industrial automation, offering strong market adaptability.
Utilizes cutting-edge communication technologies like LoRaWAN and NB-IoT for remote, low-power data transmission.
Provides tailored products and OEM/ODM services to meet diverse application needs.
