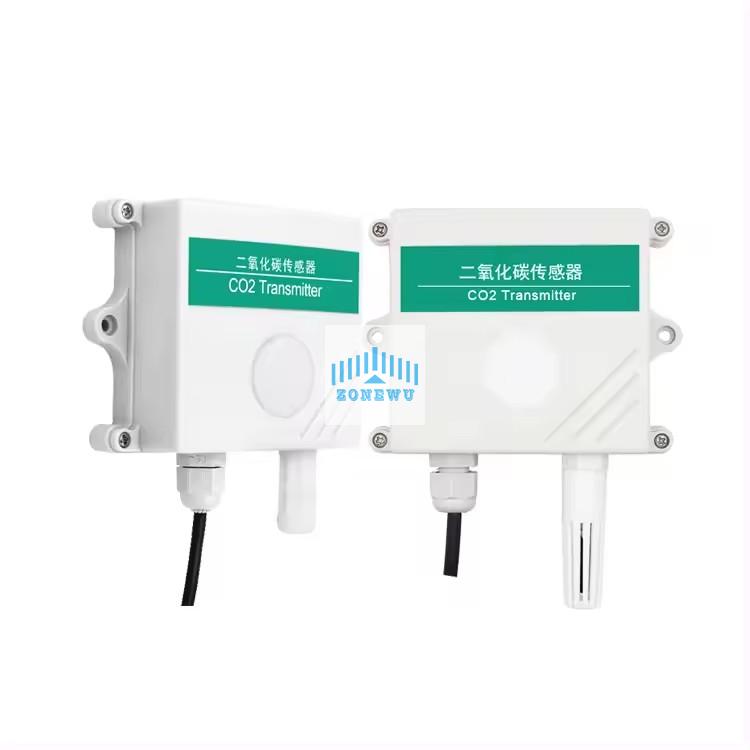

ZONEWU CO2 Transmitter, RS485 4-20mA Carbon Dioxide Sensor

The ZONEWU CO2 transmitter measures carbon dioxide in 0-5000 and 0-10000 ppm ranges, with 4-20mA, 0-5V, 0-10V or RS485 output. The 10-30 VDC wall-mounted ABS unit supports greenhouse, indoor air quality and industrial CO2 monitoring.

Overview

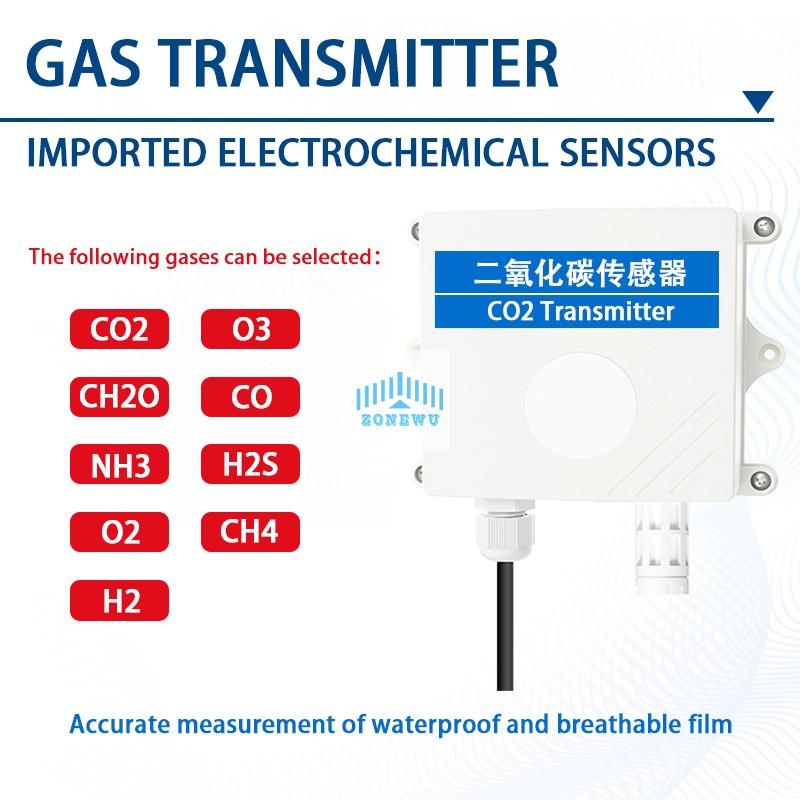

Gas Transmitter · Wired OutputCarbon dioxide CO2 detection in a wall-mounted ABS housing, wired out over 4-20mA, analog voltage or RS485 to your PLC, DCS or monitoring software.0-5000 / 0-10000 ppm CO2 ranges4-20mA, 0-5V, 0-10V, RS485 outputsWall-mounted ABS housing, 110×85×44 mm10-30 VDC wide supplyOEM / ODM / OBM supported

Key Features

CO2 dual range0-5000 ppm and 0-10000 ppm optional ranges for indoor air quality and high-CO2 environments.Accuracy & linearity±(50ppm+3%FS) on 5000 ppm, ±(50ppm+5%FS) on 10000 ppm; nonlinearity below 1%FS.
Response ≤90 sTimely CO2 level feedback for ventilation and indoor air quality control.Multiple wired outputs4-20mA, 0-5V, 0-10V and RS485 Modbus RTU integrate with PLC, DCS or monitoring software.
Wide supply & housing10-30 VDC, ABS wall-mounted enclosure with cable and mounting hardware for easy installation.Custom supportOEM, ODM and OBM customization available for CO2 monitoring projects.

Technical Specifications

Detecting gasCO2
Measuring range0-5000 / 0-10000 ppm (optional)
Accuracy±(50ppm+3%FS) (0-5000ppm) · ±(50ppm+5%FS) (0-10000ppm), 25°C
Nonlinearity<1%FS
Response time≤90 s
Output signal4-20mA / 0-5V / 0-10V / RS485
Power supply10-30 VDC
Housing materialABS plastic

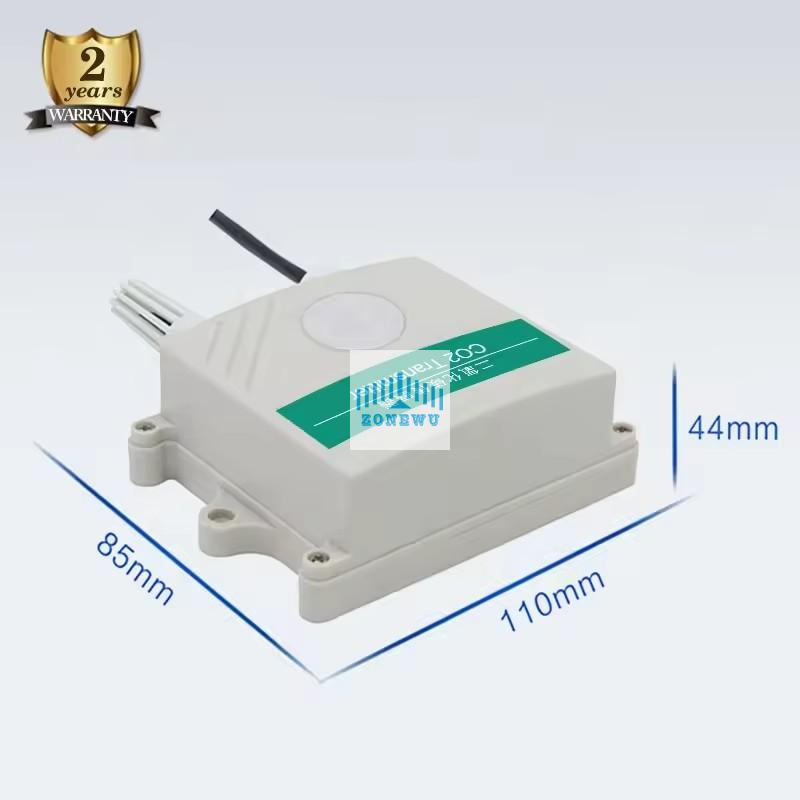

Dimensions110 × 85 × 44 mm

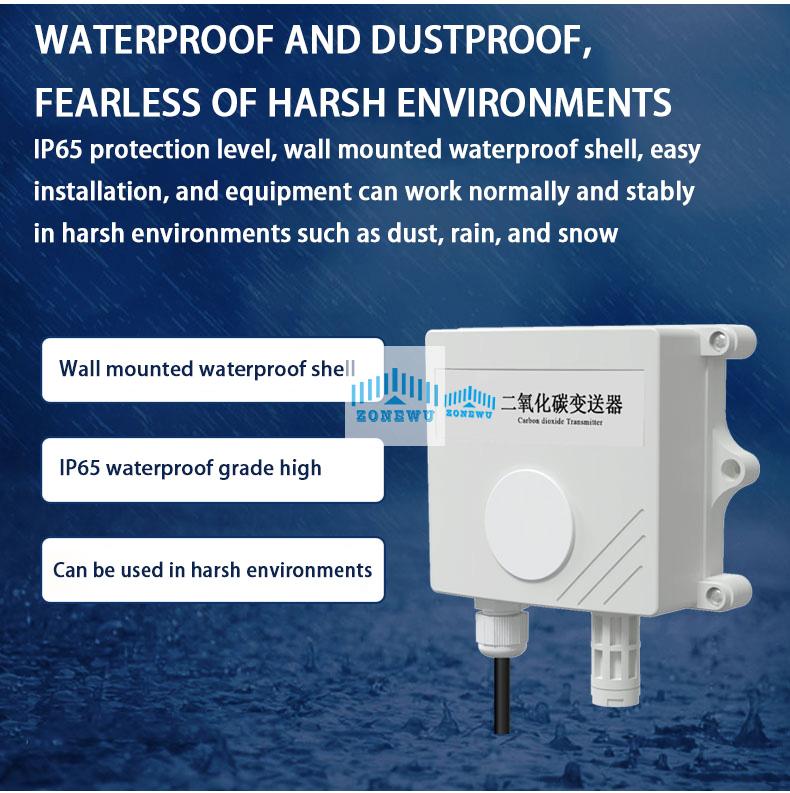

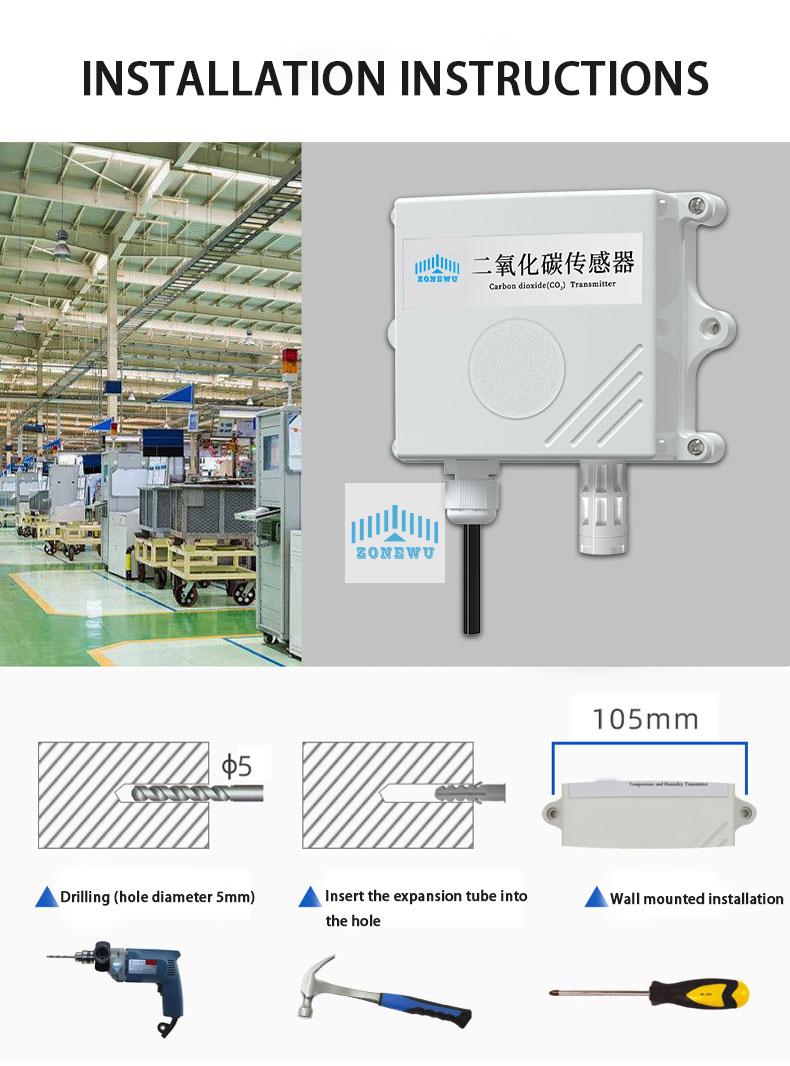

InstallationWall mounted
Operating environment-10 °C to +50 °C, 0-80 %RH (non-condensing)
Customized supportOEM, ODM, OBM

Applications

Greenhouse & AgricultureControl CO2 enrichment for plant growth in greenhouses and cultivation rooms.Indoor Air QualityMonitor ventilation in offices, schools, shops and commercial buildings.
Industrial WorkshopsTrack CO2 in production lines, storage areas and enclosed work spaces.Livestock & PoultryMaintain fresh air in livestock houses and enclosed breeding facilities.

Downloads

Product ManualZONEWU Configuration Tool
