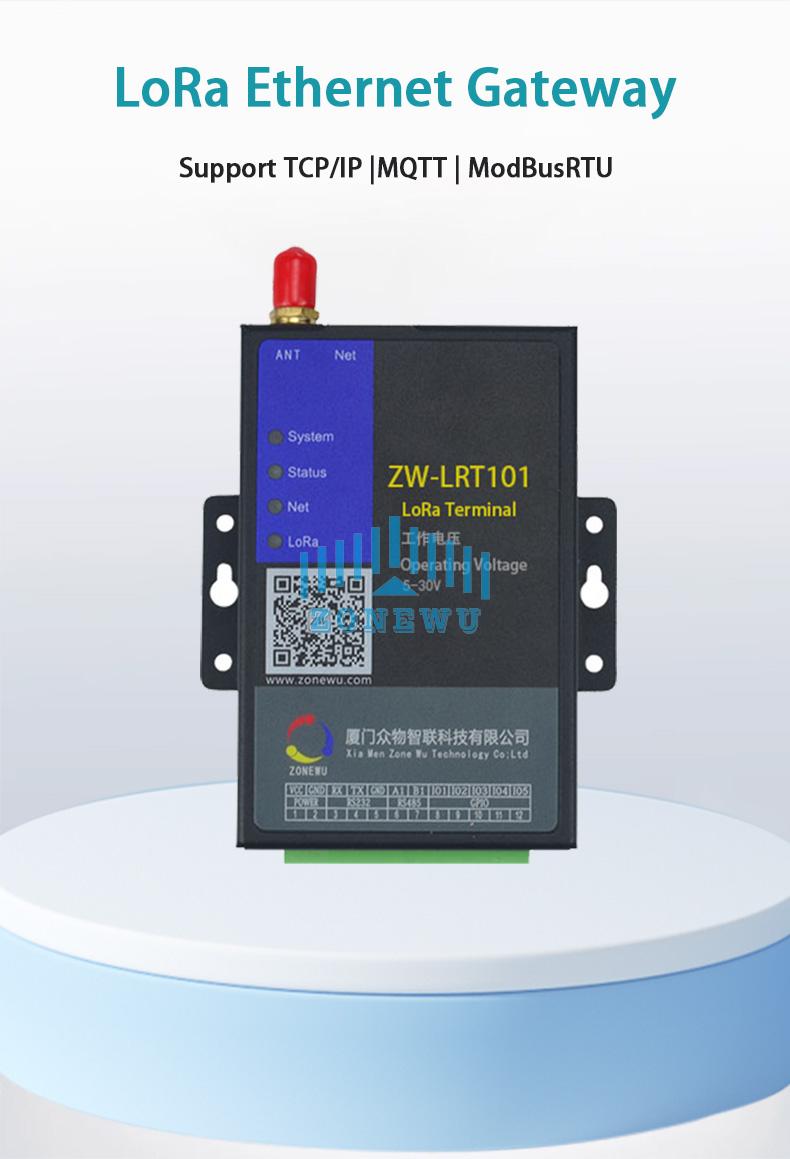

LoRa wired Ethernet terminal | gateway

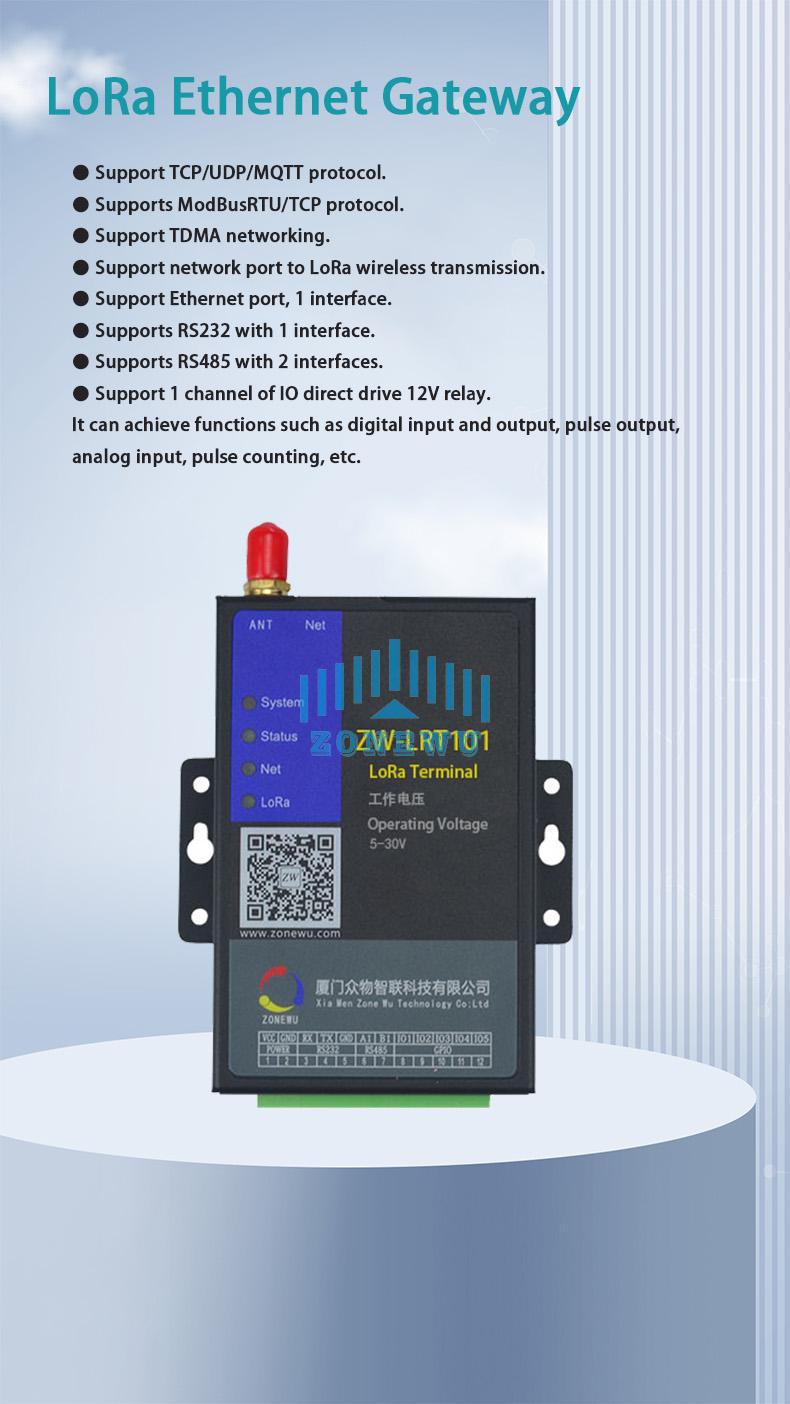

ZW-LRT101 is a LoRa gateway for wired Ethernet, supporting TCP/UDP and TDMA networking.The LRT101 LoRa Ethernet gateway manages the communication of LoRa terminals in this area, and connects the LoRa terminal data in this area to the server through Ethernet TCP or UDP. ZW-NR200 provides RS232 and RS485 interfaces, which can directly connect to serial devices and achieve data transparent transmission; It can achieve functions such as digital input and output, pulse output, analog input, pulse counting, etc.

Product details

ZW-LRT101 is a LoRa gateway for wired Ethernet, supporting TCP/UDP and TDMA networking.

The LRT101 LoRa Ethernet gateway manages the communication of LoRa terminals in this area, and connects the LoRa terminal data in this area to the server through Ethernet TCP or UDP. ZW-NR200 provides RS232 and RS485 interfaces, which can directly connect to serial devices and achieve data transparent transmission; It can achieve functions such as digital input and output, pulse output, analog input, pulse counting, etc.

This product is widely used in the M2M industry in the IoT industry chain, such as remote meter reading, smart cities, smart factories, smart buildings, smart firefighting, smart parking, smart homes, industrial control wireless transmission, and other fields.

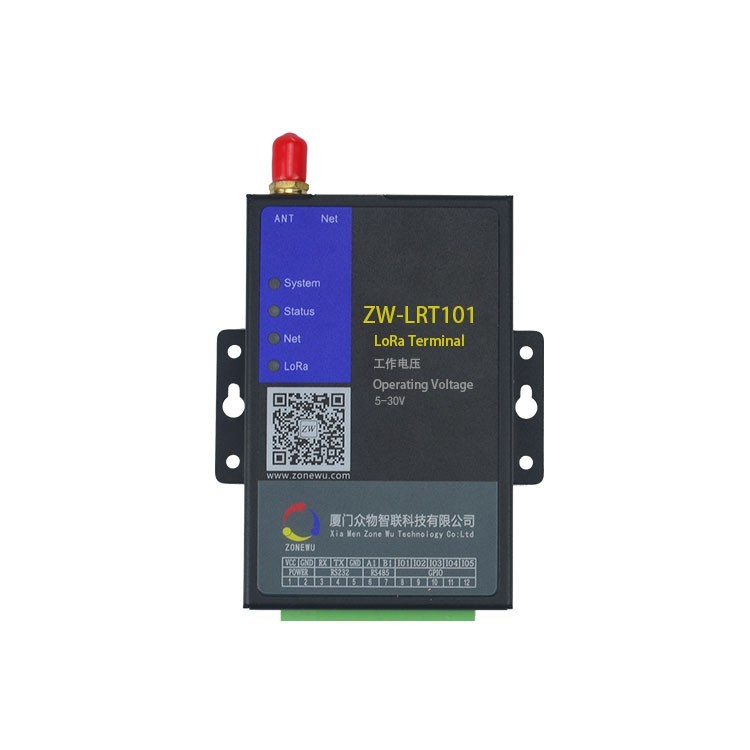

LoRa Ethernet gateway4.jpg

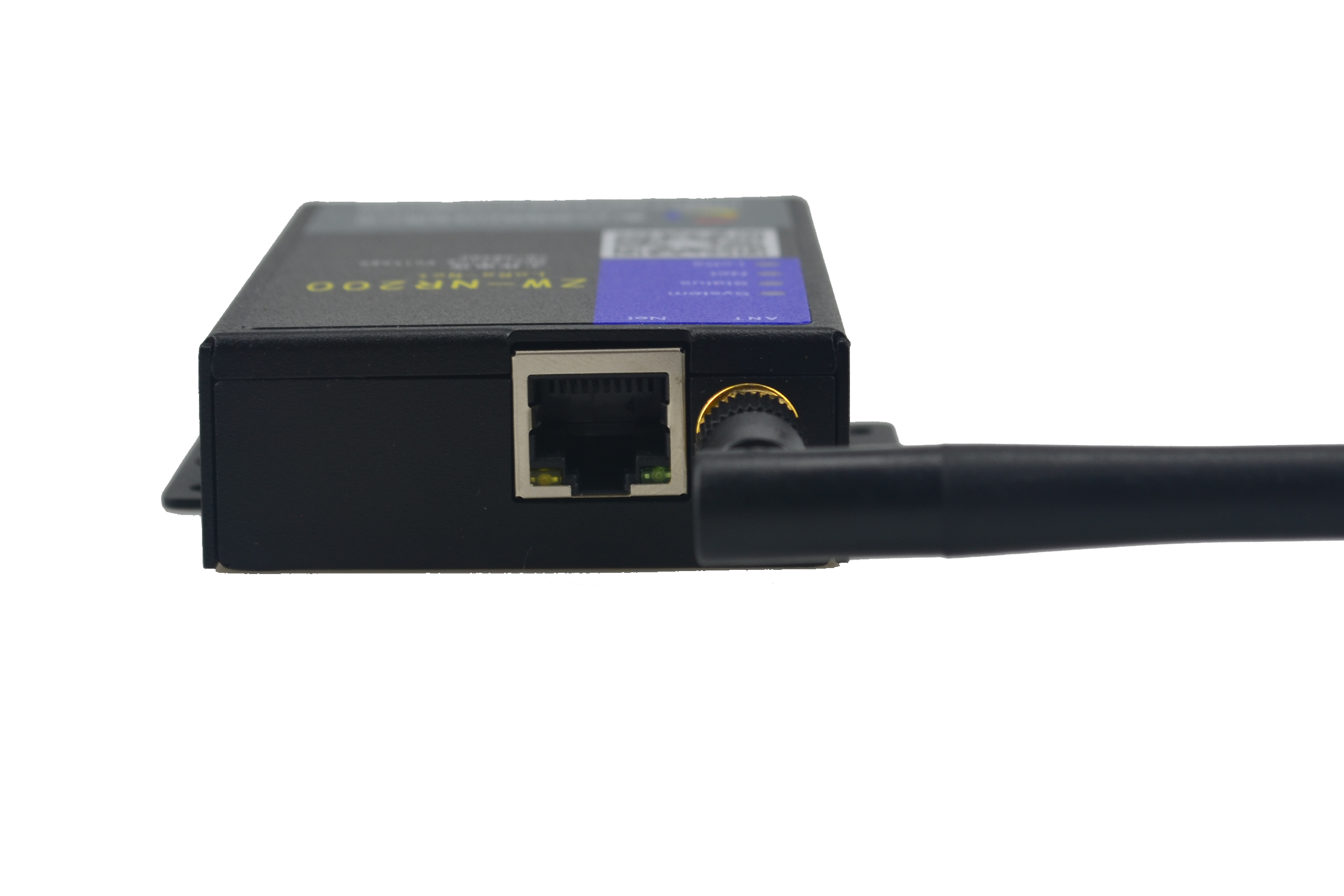

LoRa Ethernet gateway5.jpg

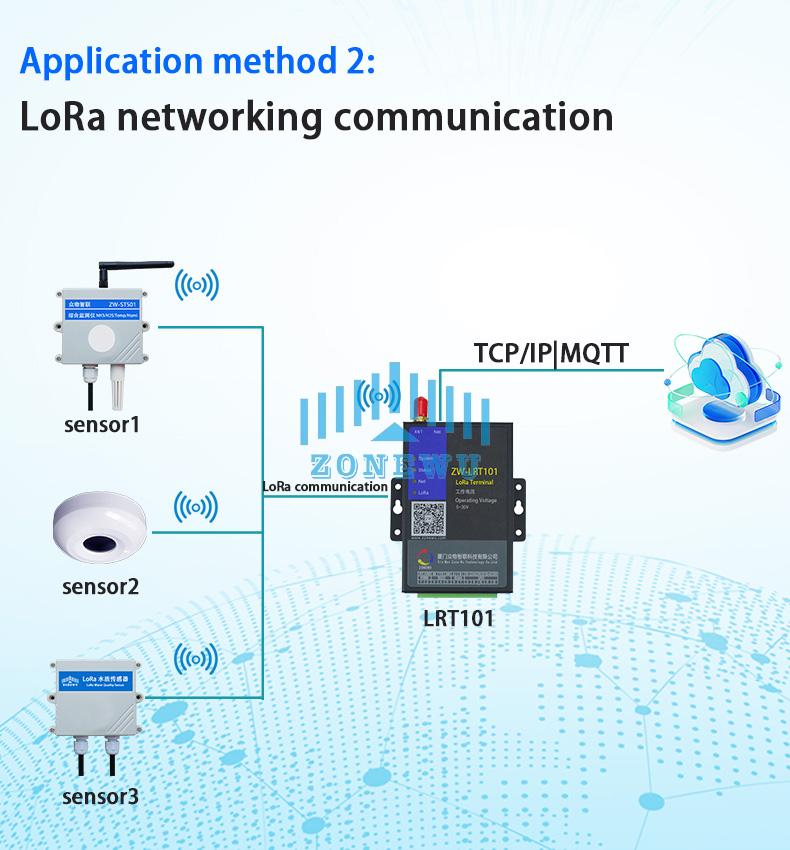

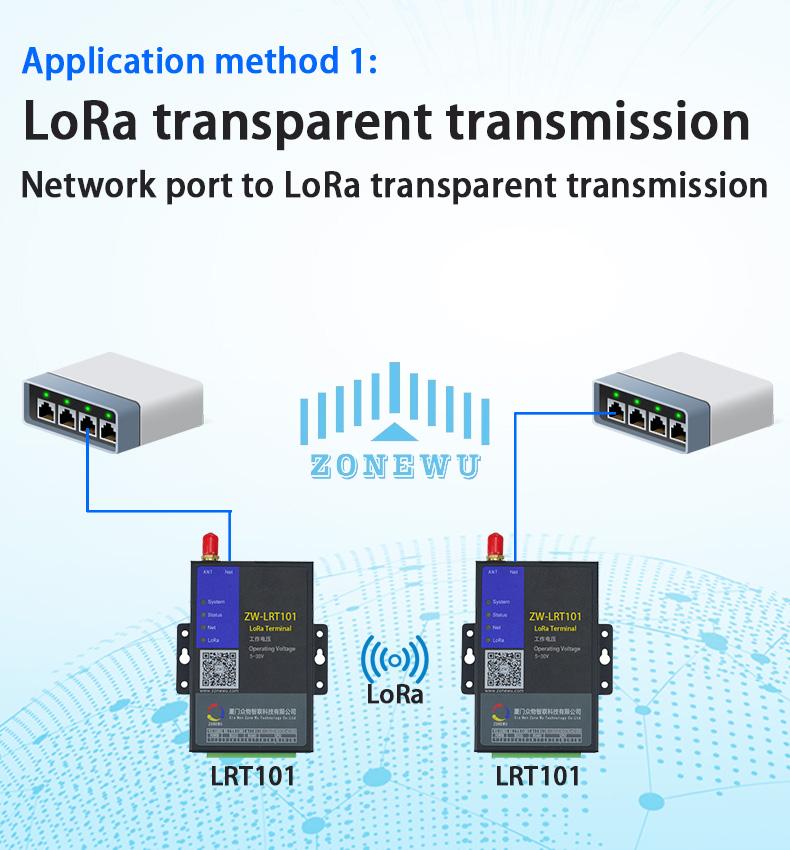

Application methods

LoRa Ethernet gateway6.jpg

LoRa Ethernet gateway7.jpg

Detailed Parameter

CPU

Industrial grade 32-bit CPU

Communication frequency band

433MHz、470MHz(470-510)、868MHz(862-870)、915MHz(902-928)

Communication distance

Indoor/Urban:3km

Outdoor/Sight Distance:6km

Transmission power

18dBm(±1dBm)

Theoretical communication rate

6-level adjustable:0.3、0.6、1.0、1.8、3.1、5.5Kbps

Sensitivity

SF=7,The receiving sensitivity is-125.5dBm

SF=10,The receiving sensitivity is-135dBm

SF=12,The receiving sensitivity is-140dBm

Serial port

1xRS232

1xRS485

Pilot lamp

Equipped with communication, status, and power indicator lights

Power interface

Terminal interface, built-in power reverse protection and overvoltage protection

Standard power supply

DC 12V/0.5A

Ethernet port

10/100M

Supports TCP/UDP/MQTT protocol

Power supply range

DC 5~28V

Current

Standby8mA@5 VDC

Receive42mA@5 VDC

Sending210mA@5 VDC

Housing

Metal shell, protection level IP30

External dimensions

91x58.5x22 mm(Excluding antennas and mounting components)

operation temperature

-35~+75ºC

Storage temperature

-40~+85ºC

Relative humidity

≤95%(No condensation)

Software specifications

Supporting self-developed networking protocols based on TDMA, FDMA, CDMA, and frequency modulation technologies

Supports standard ModBusRTU protocol and ModBusTCP protocol
