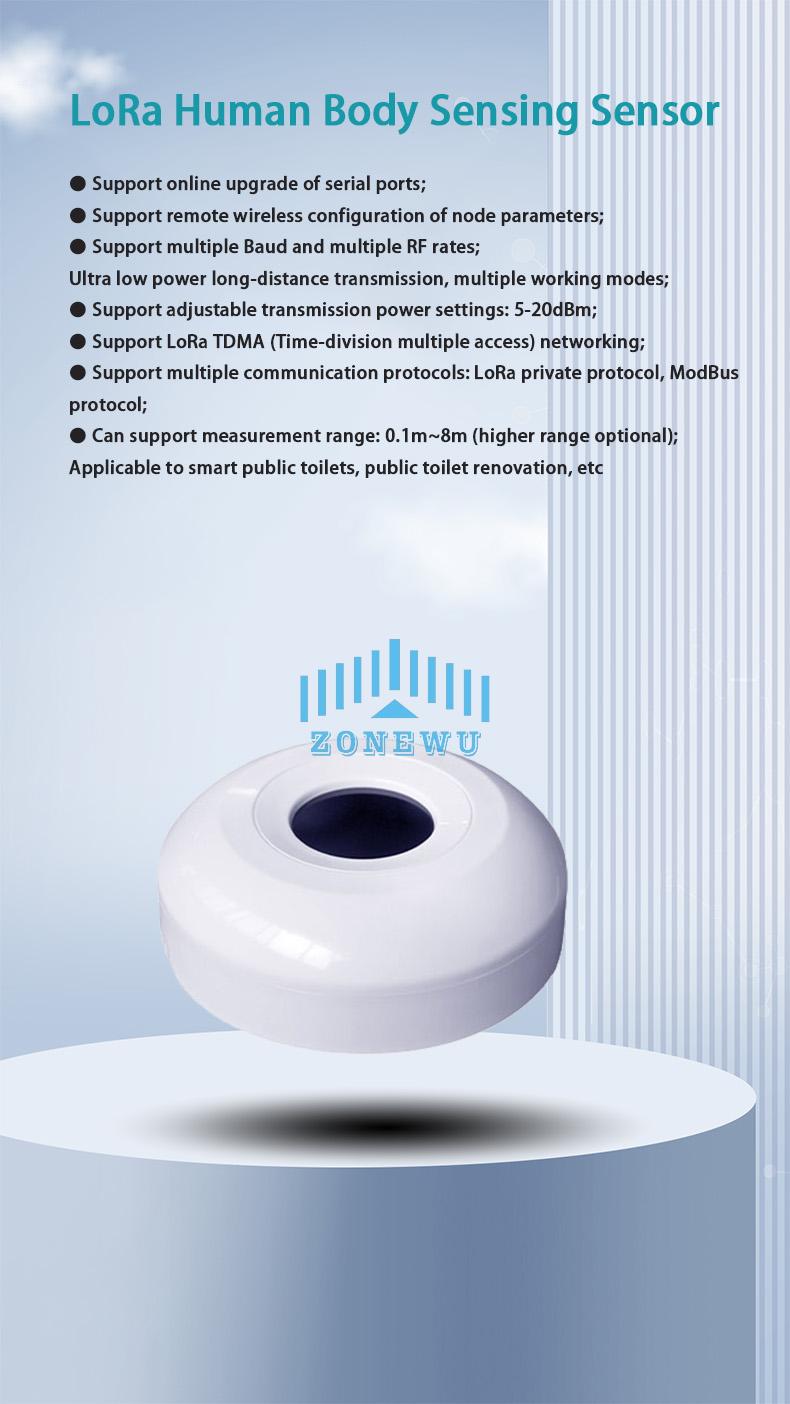

LoRa human body sensing sensor

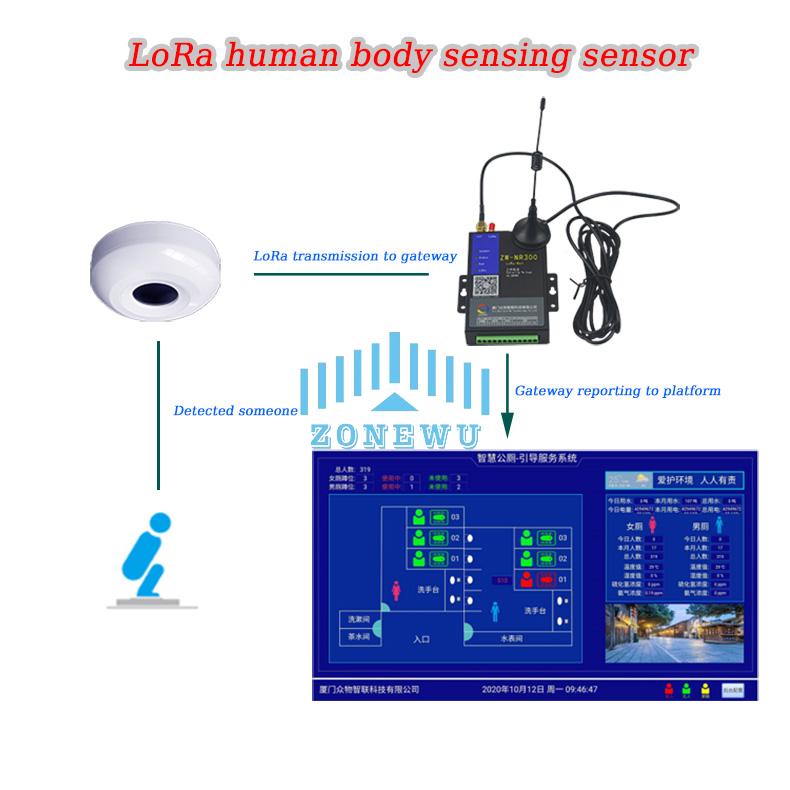

The ZW-ST804 human body sensing terminal is a product of LPWAN (Low Power Wide Area Network). Based on LoRaTM spread spectrum modulation technology, terminals can communicate over ultra long distances. The human body sensor in the public restroom adopts the principle of infrared laser photoelectric diffuse reflection, non-contact measurement. When in use, the detector is installed on the side of the squatting position, either ceiling mounted or wall mounted, and fixed. When the human body enters the detection area, it can be sent and timed to transmit data to the gateway. Once a person leaves, the signal will be automatically reported.

Product details

The ZW-ST804 human body sensing terminal is a product of LPWAN (Low Power Wide Area Network).

Based on LoRaTM spread spectrum modulation technology, terminals can communicate over ultra long distances. The human body sensor in the public restroom adopts the principle of infrared laser photoelectric diffuse reflection, non-contact measurement. When in use, the detector is installed on the side of the squatting position, either ceiling mounted or wall mounted, and fixed. When the human body enters the detection area, it can be sent and timed to transmit data to the gateway. Once a person leaves, the signal will be automatically reported.

This product is widely used in the M2M industry and is widely used in the IoT industry chain, such as smart homes, factory buildings, public toilets, station docks, and other environmental monitoring fields of the Internet of Things.

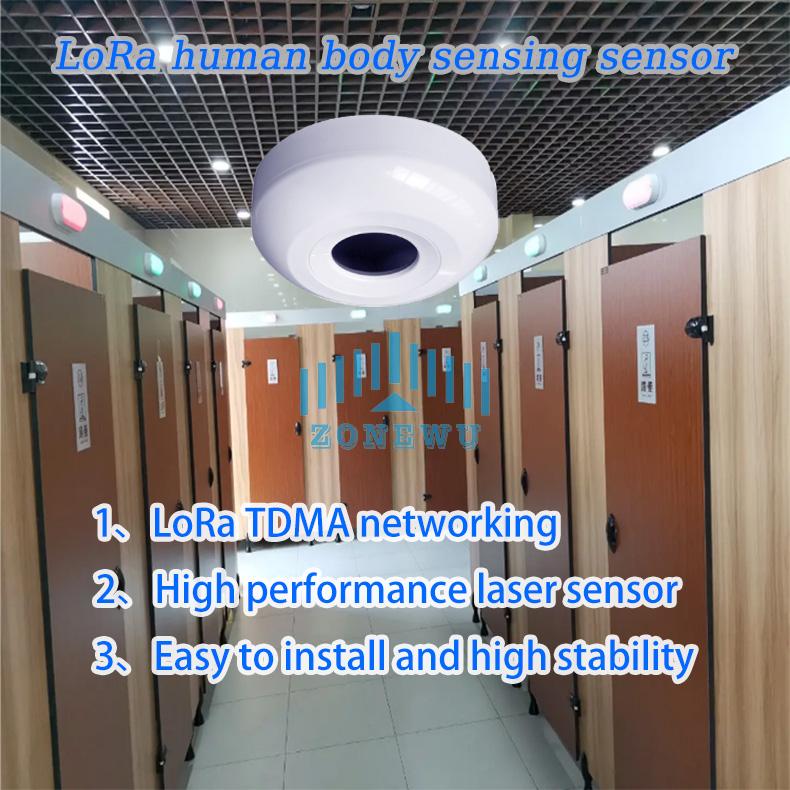

<a href=https://www.zonewu.com/en/LoRaWAN-Sensor.html target='_blank'>LoRa</a> human body sensing sensor2.jpg

<a href=https://www.zonewu.com/en/LoRaWAN-Sensor.html target='_blank'>LoRa</a> human body sensing sensor3.jpg

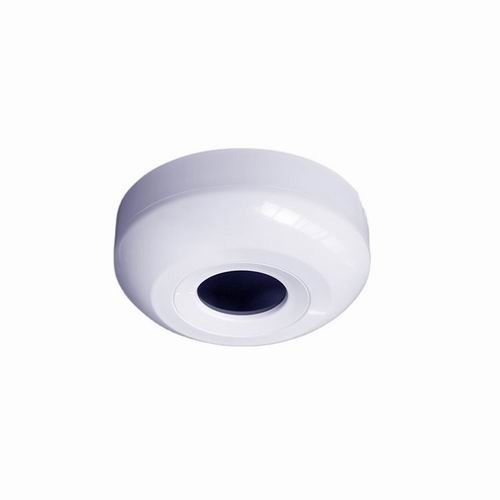

LoRa human body sensing sensor4.jpg

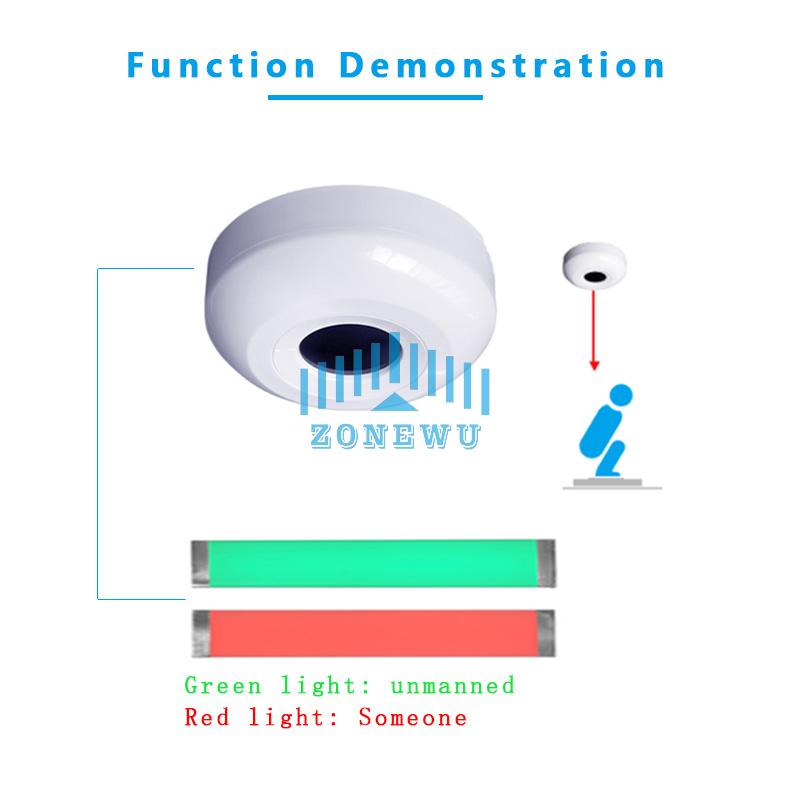

LoRa human body sensing sensor5.jpg

Specifications






Wireless Transmission

Communication Protocol

LoRaWAN,LoRa TDMA Networking

Frequency

CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4

Tx Power

20dBm (915) / 16dBm (868) / 17dBm (470)

Mode

OTAA/ABP Class A



Probe Arameters

Range

0-6m

Accuracy

1cm



Operation

Configuration

NFC Configuration via Mobile App、Local serial port, remote configuration



Physical Characteristics

Power Supply

12/24VDC

Operating Temperature

-30°C to 70°C

Dimensions

95x34  mm

Installation

Surface mounted
