LoRa wireless I/O acquisition controller

LoRa wireless I/O acquisition controller

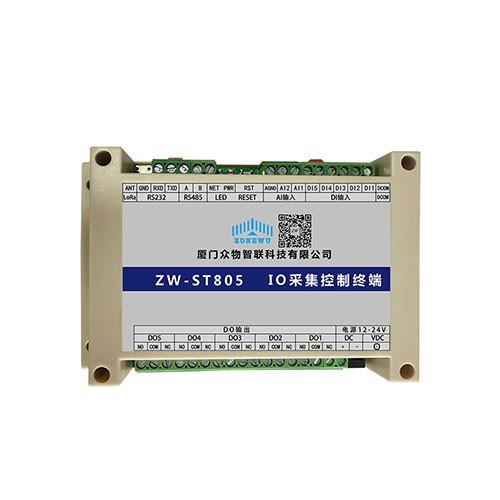

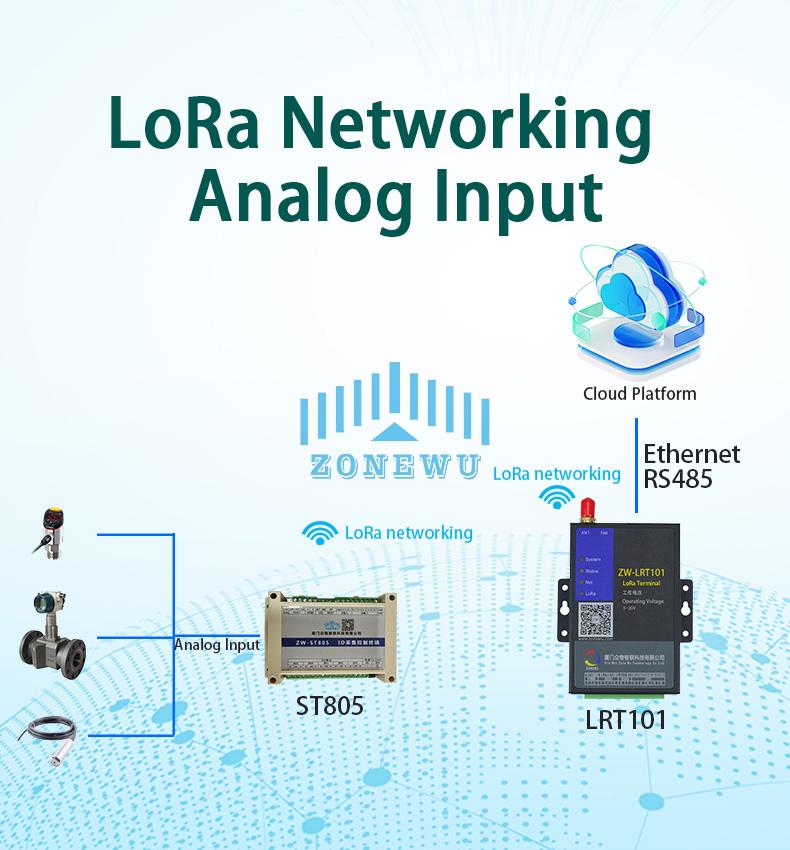

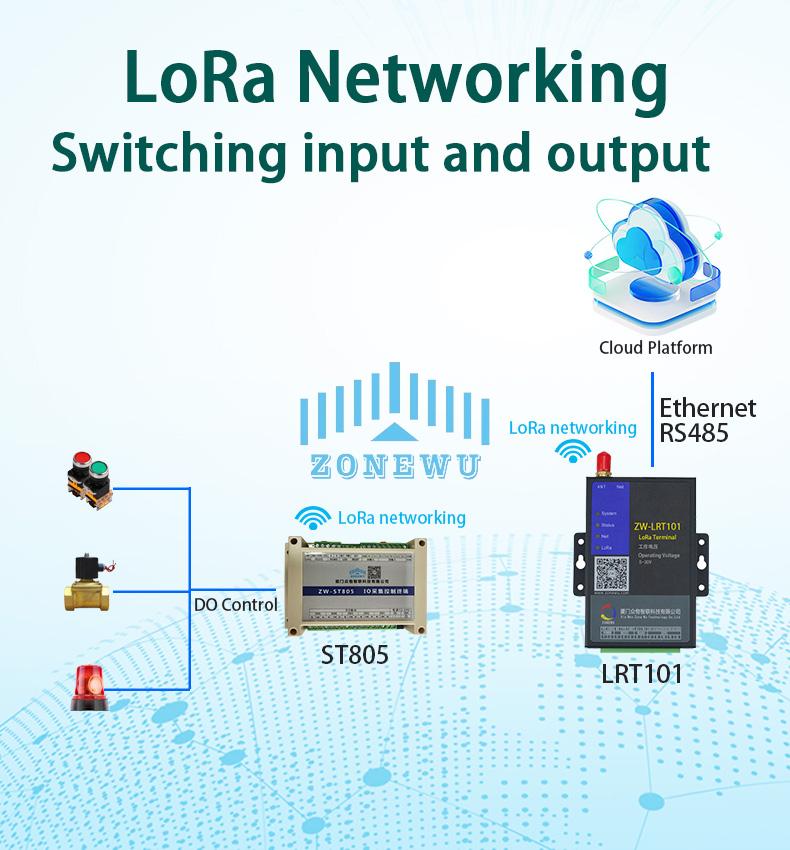

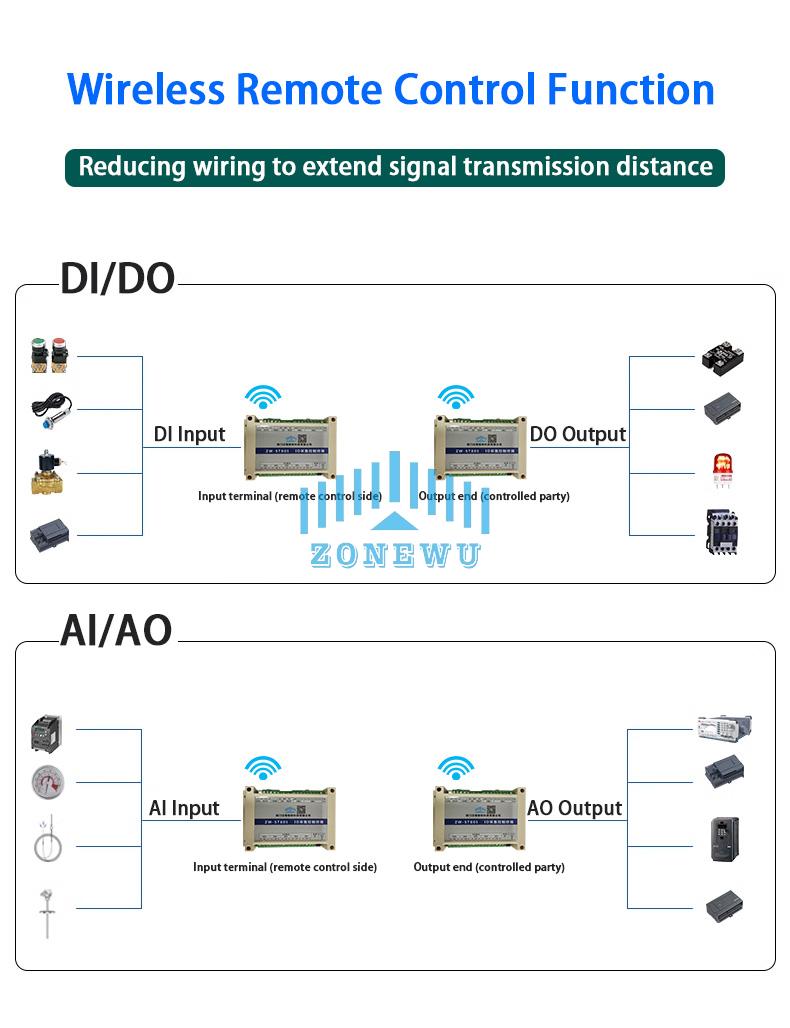

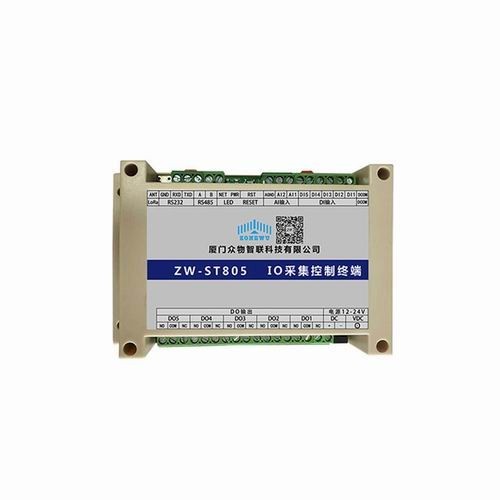

The ZW-ST805 acquisition and control terminal is a product of LPWAN (Low Power Wide Area Network).Supports various networking methods such as wireless networking and star networking based on LoRa technology, supports DI digital input detection, supports control of DO relay output control, supports AI 4-20mA current acquisition or 0-5V voltage acquisition, software and hardware WDT watchdog design, and dual monitoring of the system to ensure stable operation.

Product details

LoRa IO acquisition controller1.jpg

LoRa IO acquisition controller2.jpg

LoRa IO acquisition controller3.jpg

Specifications

Wireless Transmission
Communication Protocol	LoRaWAN,LoRa TDMA Networking
Frequency	CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4
Tx Power	20dBm (915) / 16dBm (868) / 17dBm (470)
Mode	OTAA/ABP Class A
Interface
Digital input	5 × DI
Digital Output	5 × DO
Analog Input	2 × AI
RS485	1 ×RS485
Operation
Configuration	Local serial port configuration、Remote configuration
Physical Characteristics
Power Supply	12/24VDC
Operating Temperature	-30°C to 70°C
Dimensions	145x90x40 mm
Installation	Rail mounted
