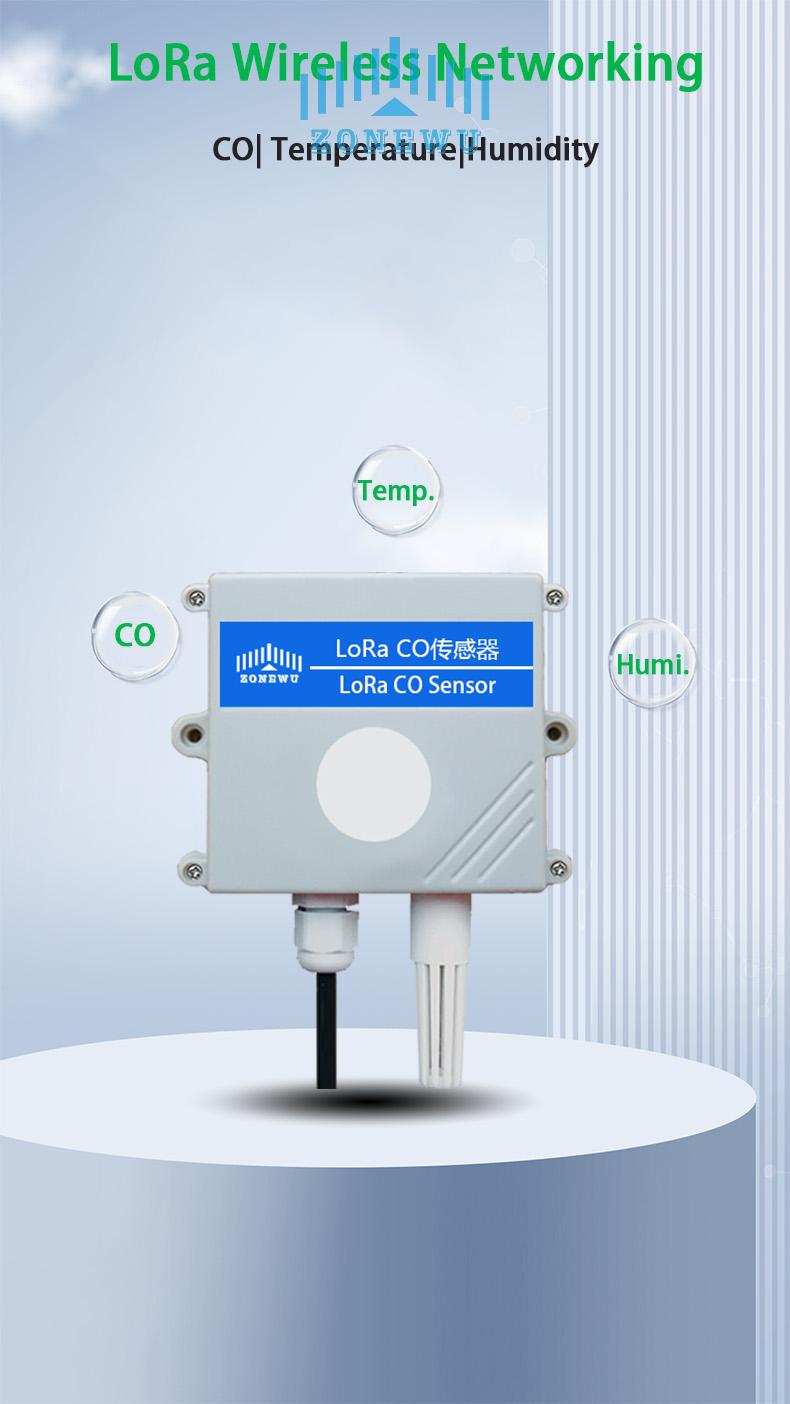

LoRa CO temperature and humidity sensor

The ZW-ST516 CO temperature and humidity sensor is a product of LPWAN (Low Power Wide Area Network).Based on LoRaTM spread spectrum modulation technology, terminals can communicate over ultra long distances. A wireless monitoring instrument that integrates data collection, monitoring, and transmission. This product is equipped with built-in COsensors and temperature and humidity sensors. The CO sensor adopts a two electrode or three electrode electrochemical sensor and a high-performance microprocessor, which has the characteristics of high detection accuracy, stable performance, and low power consumption. ST516 is equipped with emergency reporting of data anomalies, can preset threshold values according to the on-site environment, actively report anomalies, support remote wireless gateway configuration, and has good stability and reliability.

Product details

The ZW-ST516 CO temperature and humidity sensor is a product of LPWAN (Low Power Wide Area Network).

Based on LoRaTM spread spectrum modulation technology, terminals can communicate over ultra long distances. A wireless monitoring instrument that integrates data collection, monitoring, and transmission. This product is equipped with built-in CO sensors and temperature and humidity sensors. The CO sensor adopts a two electrode or three electrode electrochemical sensor and a high-performance microprocessor, which has the characteristics of high detection accuracy, stable performance, and low power consumption. ST516 is equipped with emergency reporting of data anomalies, can preset threshold values according to the on-site environment, actively report anomalies, support remote wireless gateway configuration, and has good stability and reliability.

This product is widely used in the M2M industry and is widely used in the IoT industry chain, such as safety testing in various carbon oxide environments such as factory workshops, agricultural greenhouses, laboratories, flower breeding, and smart pipe corridors.

<a href=https://www.zonewu.com/en/LoRaWAN-Sensor.html target='_blank'>LoRa</a> CO sensor1.jpg







Specifications






Wireless Transmission

Communication Protocol

LoRaWAN,LoRa TDMA Networking

Frequency

CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4

Tx Power

20dBm (915) / 16dBm (868) / 17dBm (470)

Mode

OTAA/ABP Class A



Sensors

Ammonia (O2)

Range: 0-25% VOL

Accuracy: 0.1VOL

Temperature

Range: -40~+80

Accuracy: ±0.3

Humidity

Range: 0~99.9 %RH

Accuracy: ±2 %RH



Operation

Configuration

NFC Configuration via Mobile App



Physical Characteristics

Power Supply

12/24VDC

Operating Temperature

-30°C to 70°C

Dimensions

90x85x40  mm

Installation

Wall Mounting
