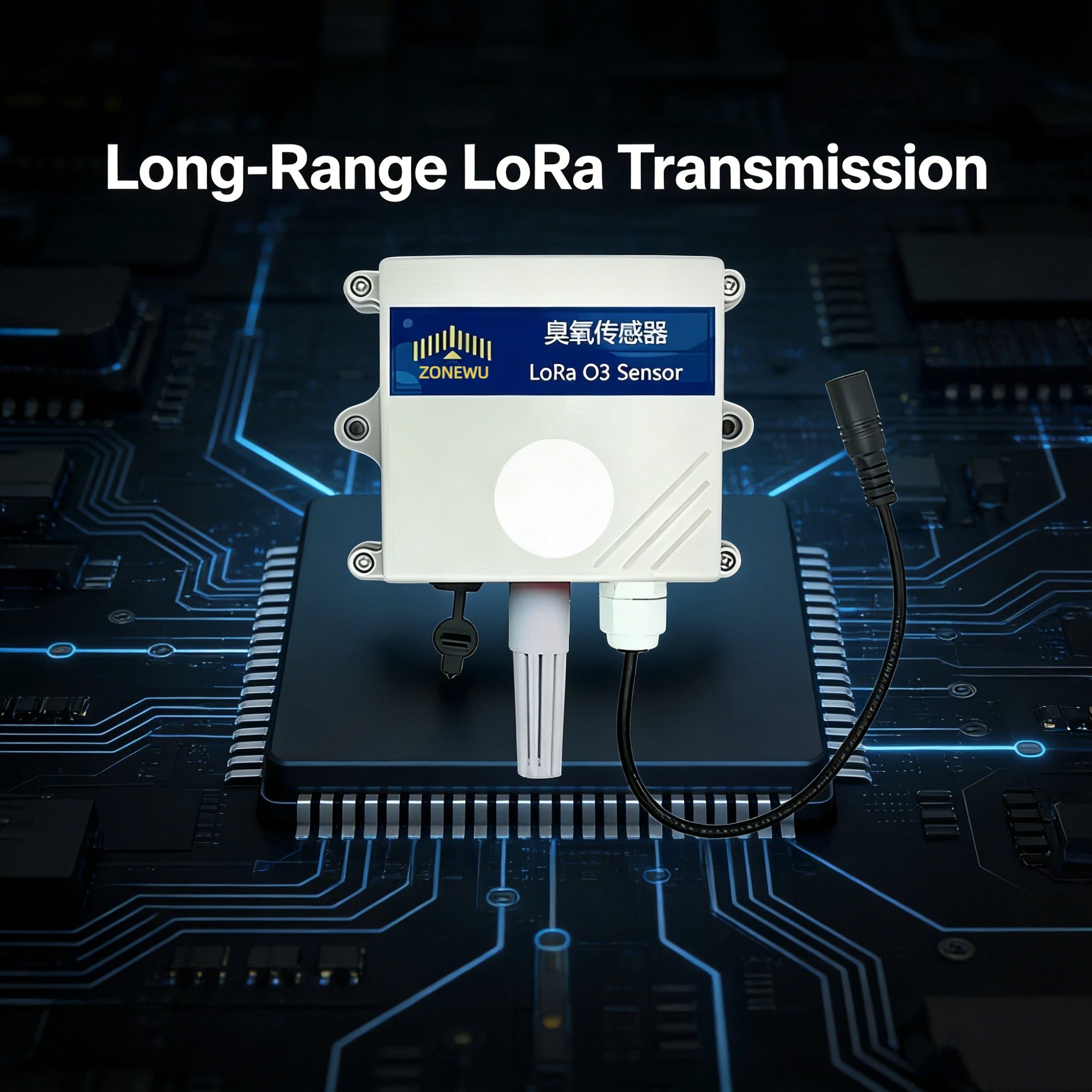

LoRa O3 Gas Temperature and Humidity 3-in-1 Sensor

LoRa O3 Gas Temperature and Humidity 3-in-1 Sensor

The 1LoRa ozone temperature and humidity 3-in-1 sensor is a wireless gas detection device designed specifically for atmospheric environment monitoring and disinfection process monitoring. Integrated high-sensitivity electrochemical O3 probe and digital temperature and humidity sensor, with a range of 0-1ppm (environmental monitoring) or 0-20ppm (industrial disinfection), and a resolution of up to 0.1ppm. Built in temperature and humidity compensation and anti cross interference algorithm ensure accurate and stable data. LoRa wireless transmission distance can reach 3-5 kilometers, suitable for urban grid monitoring, water treatment disinfection, food workshop sterilization, breeding farm purification and other scenarios. A device simultaneously outputs data on ozone concentration, temperature, and humidity, which can be viewed in real-time on a cloud platform. If the data exceeds the standard, it will automatically sound an alarm, helping with precise environmental protection and safe production.

High Sensitivity LoRaWAN Ozone (O3) Gas Sensor

ZONEWU High Sensitivity LoRaWAN Ozone (O3) Gas Sensor

Core Product Overview

A professional wireless ozone monitoring device tailored for real-time concentration detection in outdoor and industrial environments. It combines advanced electrochemical sensing technology with LoRaWAN low-power wide-area network capabilities, providing a reliable, low-maintenance solution for continuous ozone level tracking that meets the strict standards of European and American markets.

Key Performance Advantages

1.Exceptional sensitivity enables accurate capture of trace ozone levels, with strong anti-interference performance that minimizes data deviations caused by temperature and humidity fluctuations

2.LoRaWAN wireless connectivity eliminates complicated wiring work, significantly reducing on-site installation costs and labor input

3.Ultra-low power consumption supports battery-powered operation, allowing long-term deployment in remote or off-grid areas without relying on mains power

4.Industrial-grade weatherproof housing ensures stable operation in harsh conditions, resisting dust, condensation and extreme temperatures

Intelligent Remote Management

1.Supports remote device configuration, real-time data uploading and historical data tracking for convenient centralized management

2.Seamlessly integrates with mainstream LoRaWAN servers and IoT platforms, enabling threshold alarm notifications and intuitive data visualization

3.Meets the data recording and compliance requirements of environmental monitoring and industrial safety management systems

Versatile Application Scenarios

1.Urban air quality grid monitoring and industrial emission port ozone level tracking

2.Ozone leakage detection in chemical, pharmaceutical and water treatment facilities

3.Concentration control for ozone disinfection in agricultural greenhouses and food storage warehouses

4.Ozone level supervision in hospital sterilization areas and laboratory environments

Global Compliance Certification

1.Complies with EU RoHS and CE standards, as well as US FCC certification requirements

2.Compatible with local LoRaWAN frequency bands in Europe and America, facilitating quick integration into regional IoT ecosystems for global customers

O3 Sensor Specification:

Power Supply	5~28VDC
Weight	120g
Operating Emperature	-20℃～50℃
Operating Emperature	Humidity: 15%~ 90% RH without condensation NOTE: It is not recommended to stay in a high humidity (95%) environment for more than half a month
Measuring Principle	Electrochemical Principle
Measuring Range	O3: (0-10)ppm
Resolution Ratio	O3: 0.1 ppm
Temp.and Humi. Sensor	Temp Range:-40~+80 ℃
	Accuracy:±0.3 ℃
	Humi Range:0~99.9 %RH
	Accuracy:±2 %RH
Sensor Lifespan	< 2 years
Frequency	CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4
Mode	OTAA Class A/C(Default: Class C)
Reporting cycle	5 min(Default reporting cycle) Report after preheating for 3 minutes when powered on
Communication Protocol	LoRaWAN,LoRa TDMA Networking
Equipment information (Reference)	AppEUI：0000000000000001 DevEUI：aaaa202404150001 AppKey：00001111222233334444555566667777 MAC Version：LoRaWAN 1.0.3

Packaging:

Single gross weight: 0.600 KG

Single package size: 23X20X5 cm

Product Description:

Application:

The High precision O3 sensor also widely used for gas monitoring of Chemical production, Ward monitoring, Vegetable greenhouse, Livestock and poultry farms, Tunnel monitoring, Cold chain logistics vehicle, Cold storage monitoring, Biosafety laboratory.

applications of NO2 sensor

Certifications:

1.10+ years of experience as a leading gas sensor manufacturer and exporter in China

2.Specialized in high-performance, industry-grade gas detection solutions

3.Flagship ozone (O3) sensors engineered for precise, real-time concentration monitoring

4.Full compliance with CE and RoHS certifications, meeting strict European regulatory standards

5.Seamless global market access, eliminating cross-border procurement regulatory barriers

Production Process:

factory of gas sensor manufacturer

Why choose us:

1. Strong R & D: 30+ Senior experts and highly educated personnel formed a R & D team, heavy investment, master a number of core technologies and patents.2. Professional and effective solutions: for smart environmental protection, agriculture and other fields, to provide customized compound networking solutions.3. Full range of products: covering the whole industry chain products from data collection to platform services to meet diverse needs.4. Excellent quality: we have perfect quality control system, strictly quality control each production link, low defective rate. 5. Good service: 7×24 hours fast response, Professional pre-sale, sale, after-sales team support.
