LoRaWAN Wireless Durable High-sensitivity CH4 Sensor

Durable High-sensitivity LoRaWAN Wireless CH4 Sensor

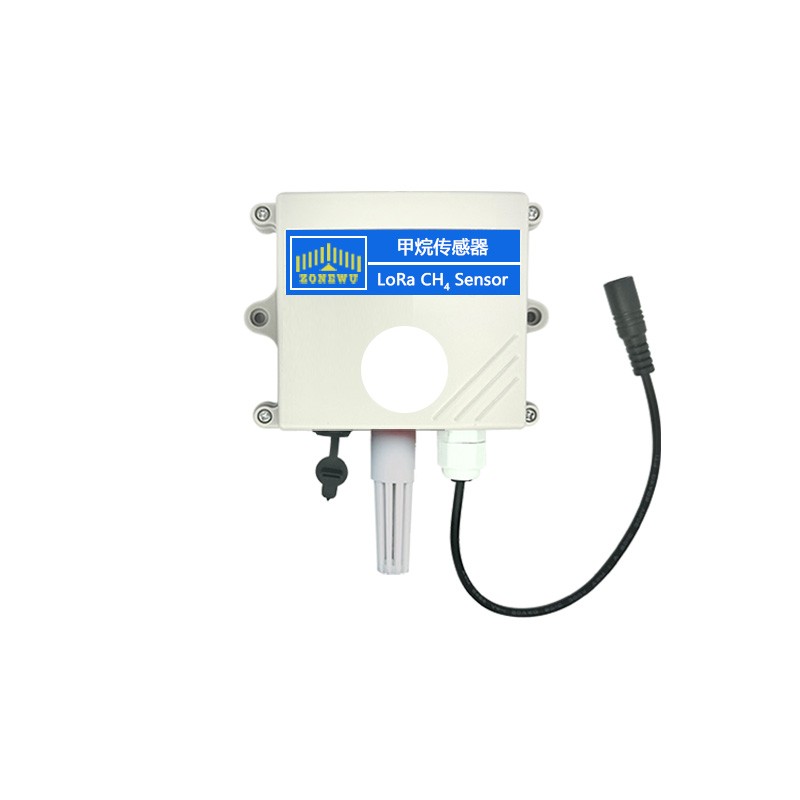

Xiamen ZoneWu LoRaWAN Wireless CH₄ Sensor , an intelligent sensor that can be used in any environment, uses infrared to detect methane gas.

Xiamen ZoneWu LoRaWAN Gas Sensor CH₄ Sensor Features:

This device uses the principle of non-dispersive infrared (NDIR) to specifically detect hydrocarbon combustible gases in the air. It's like "identifying" the gas, which can precisely find the carbon-hydrogen combustible gas.

It selects gases with a "precision eye" and responds only to the carbon-hydrogen flammable gases to be detected; It is not dependent on oxygen and can function normally in places where there is little oxygen. Performance is stable, not prone to failure, and can last a long time; There is also a built-in temperature compensation function, which does not affect its operation regardless of the hot or cold weather.

It is particularly convenient to use, and if you were previously using a catalytic combustion element, you can simply replace it without having to go through the trouble of adjusting it.

It supports the standard LoRaWAN protocol, which can achieve long-distance communication, data can be transmitted far away, without worrying about distance restrictions.

 In HVAC and indoor air data quality monitoring, it can detect the combustible gas in the air to ensure indoor safety and air health; When producing in agriculture and livestock, it can monitor the environment to ensure the safety of the growth environment of animals and plants. In the monitoring of industrial processes and safety protection, flammable gas hazards can also be promptly discovered to ensure the safety of industrial production.

This is an advanced principle, prominent advantages, simple use, strong communication and wide application of gas detection equipment, which can play an important role in many fields to ensure production and life safety.

Product Parameters

Product Applications

1. Petroleum, chemical, and coal mines: used to monitor methane concentration, prevent gas explosion accidents, and ensure production safety and the safety of miners' lives.

2. Urban gas: used for safety monitoring of urban gas pipelines, timely detection of gas leaks, and ensuring the safety of residents' lives.

3. Tunnels and underground pipe galleries: Methane sensors are used in tunnels and underground pipe galleries to monitor gas leaks, prevent explosion accidents caused by gas leaks, and ensure construction safety.

4. Biogas detection: Methane sensors are used in drainage networks, sewers, and other places to monitor the concentration of biogas and prevent explosion accidents caused by biogas accumulation.

5. Household gas leak monitoring: Laser methane sensors can also be used for civilian gas leak monitoring to promptly detect and address gas leak issues.

6. Environmental monitoring: used for monitoring methane emissions in landfills, sewage treatment plants, and other places to protect the environment.

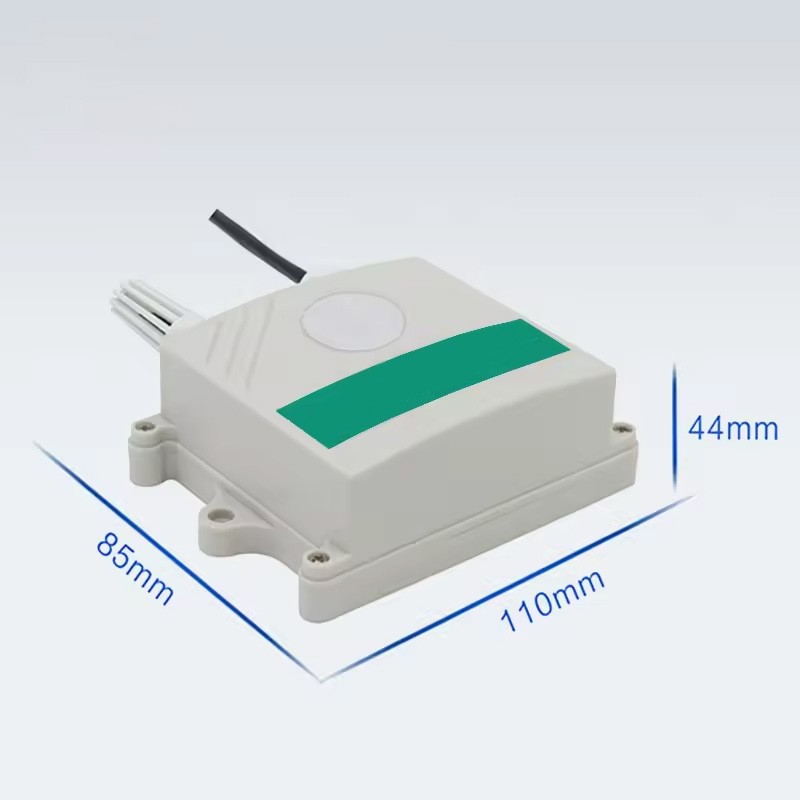

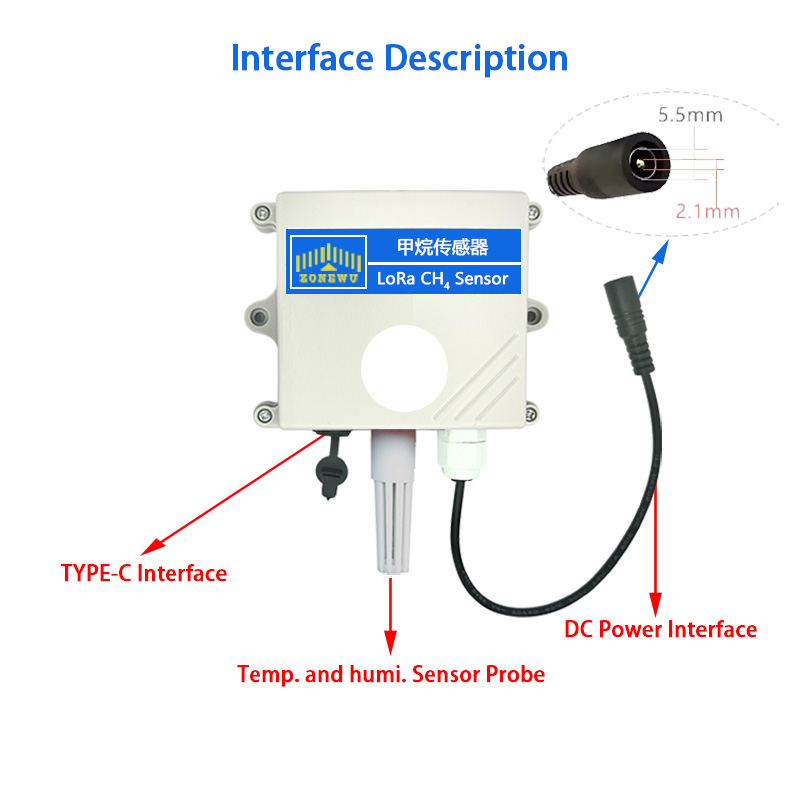

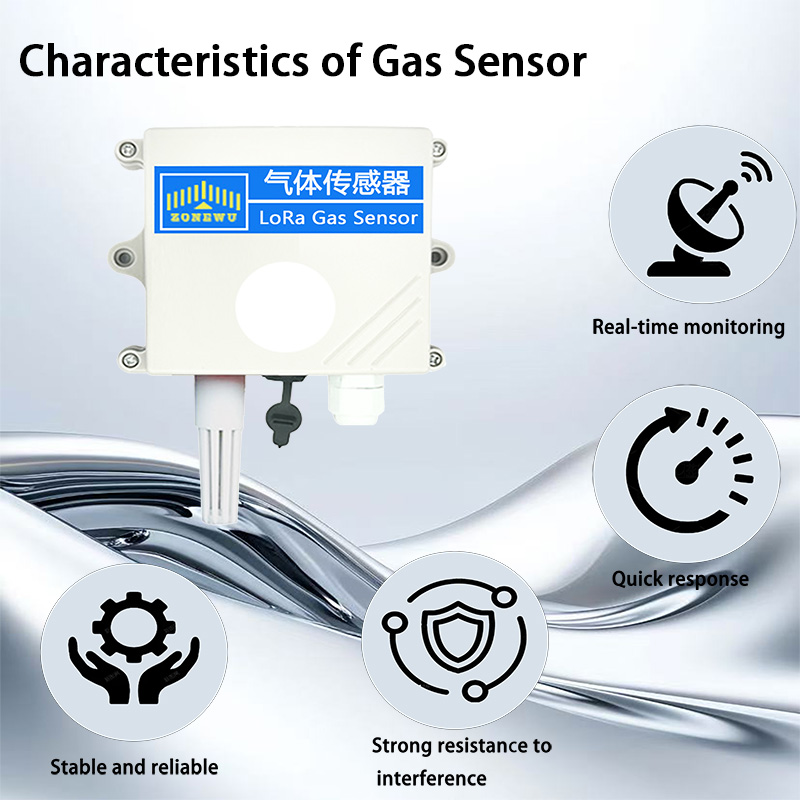

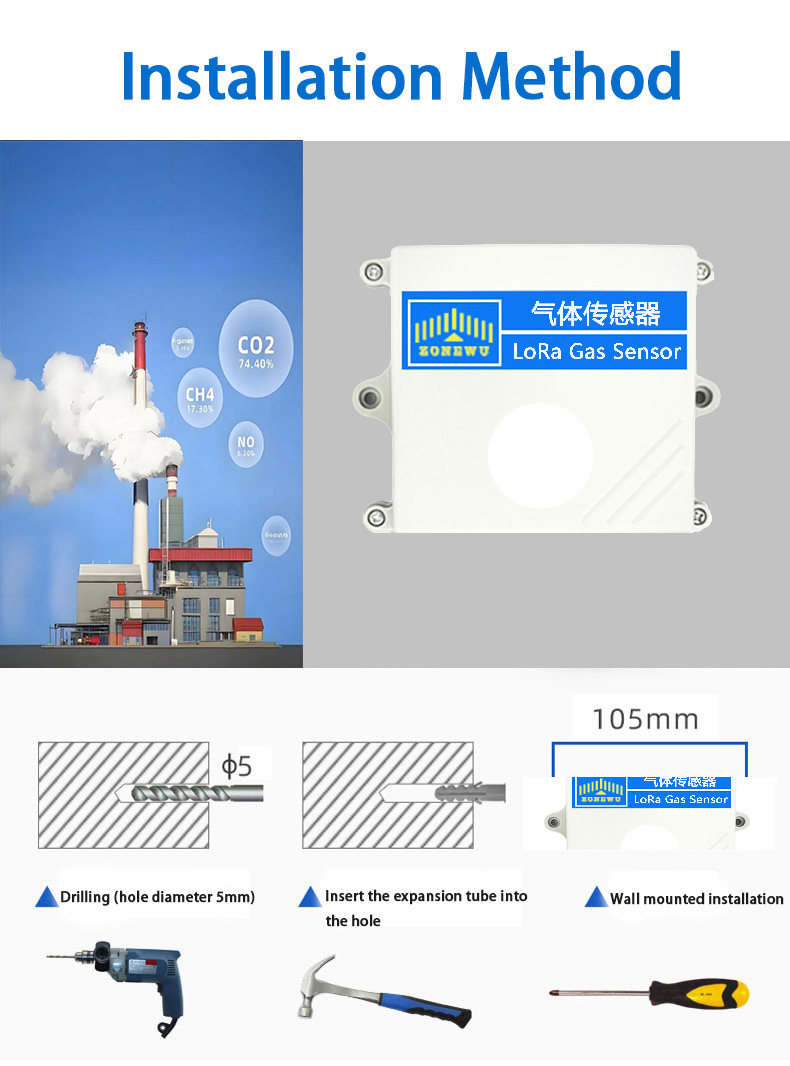

Detailed Images

Common knowledge of  CH₄

In the field of combustible gas detection, LEL and explosion limit are often mentioned, what does this mean

LEL is the lower explosive limit of a gas, expressed as a percentage. When a combustible gas, vapor of a flammable liquid, or combustible dust is mixed with air to reach a certain concentration, it will explode if it touches an open flame. This concentration range where an explosion can occur is called the explosion limit. In the area of combustible gas detection, the explosive limit is often used to indicate the hazard level. The explosive limit for each gas is different, for example, methane, which has a lower limit of 5% LEL and an upper limit of 16% LEL. Our LoRa methane sensors measure 0 to 100% LEL; The lower explosive limit of CO is 12.5% LEL and the upper limit is 74% LEL. The lower explosive limit of hydrogen is 4.0% and the upper explosive limit is 74.2%. You should know that if the concentration of various gases is less than the lower explosion limit or greater than the upper explosion limit, they will not burn or explode even when encountering air and open flame.

How to convert LEL (explosion limit) and VOL% (gas percentage concentration)

To convert the VOL% and LEL of a combustible gas into each other, the lower explosive limit of the gas must be known.Take methane, methane LEL is 4% VOL, its lower explosive limit is 5.0 VOL%, which is equivalent to 100% LEL = 5.0 VOL%.If you calculate the VOL% corresponding to 20% LEL, multiply 5.0 VOL% by 20%, and the result is 1.0 VOL%.

In simple terms, VOL% (gas percentage concentration) is equal to LEL (explosion limit) multiplied by the percentage concentration of the explosion limit. When the concentration of flammable gases in the air reaches its explosion lower limit value, we say that the explosion hazard degree of the flammable environment in this place is 100%.

What is the conversion relationship between ppm, VOL% and LEL

The meaning of VOL% is expressed in percentages, while the meaning of ppm is expressed in parts per million. It can be said that 10000ppm=1Vol%. Therefore, the conversion relationship between them is:

1ppm=0.00001x100VOL%，1VOL%=10000ppm

But PPM and LEL cannot be directly converted, LEL needs to be converted to VOL first, and then converted from VOL to PPM.

In common use, the volumetric concentration of oxygen transmitters is expressed in VOL, the volumetric concentration of combustible gas transmitters such as methane is expressed in LEL, and the volumetric concentration of toxic gas transmitters such as sulfur dioxide, phosphine, formaldehyde, etc. is expressed in ppm. In addition, the volumetric concentration of some gases in the air is also expressed in units such as ppb and ppt.

Application Scenarios

Industrial production

Waste gas emission monitoring: Conduct real-time monitoring of industrial waste gas emissions to ensure that waste gases meet emission standards and reduce pollution to the environment.

Environmental inspection

Air quality monitoring helps people understand air quality and protect the environment and health by detecting harmful gases such as sulfur dioxide.

Safety protection

In coal mines and tunnels, gas sensors detect toxic and harmful gases such as methane and warn against accidents.

FAQ

1.Are you manufacture?

A:Yes,we are Tranmitter manufacturer and exporter in China with more than 10 years of CE,ROHS,FCC,ISO and 11 patents experience.

2.Do you offer OEM services?

A:Yes,we can provide you with OEM services and design housings and logos.

3.DO you offer free samples?

A:Sorry,we don't offer free samples. After ordering in bulk, we will deduct the sample fee from the second order.

Why Choose ZONEWU

• Professional IoT Sensor Manufacturer

  Specializes in R&D, production, and sales of IoT sensors with strong technical expertise

• High Quality and Reliability

  Products certified with international standards (e.g., CE, RoHS), ensuring high quality and long lifespan.

• Wide Range of Applications

  Products serve diverse industries such as water quality monitoring, environmental monitoring, and industrial automation, offering strong market adaptability.

• Advanced Technology

  Utilizes cutting-edge communication technologies like LoRaWAN and NB-IoT for remote, low-power data transmission.

• Customized Solutions

  Provides tailored products and OEM/ODM services to meet diverse application needs.
