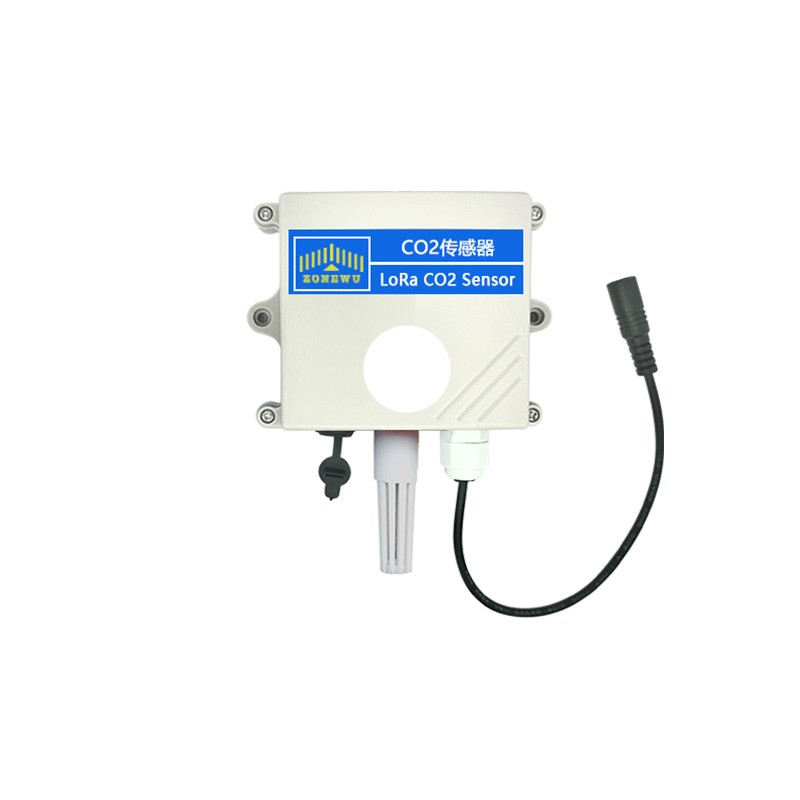

ZONEWU LW303D LoRaWAN Wireless CO2 Sensor with Temperature and Humidity

The LW303D is a LoRaWAN wireless CO2 sensor built on NDIR infrared detection, measuring CO2 (0-5000 ppm), temperature and humidity in one device. Built-in temperature compensation keeps readings stable, data is uplinked over standard LoRaWAN to gateway and cloud platforms, and threshold alarms can trigger a DO output for local warning or power control.

Overview

Gas Sensor · LoRaWANNDIR CO2, temperature and humidity in one wall-mounted node, uplinked over LoRaWAN to your gateway and cloud.NDIR CO2, 0–5000 ppmCO2 / T / RH 3-in-1LoRaWAN 1.0.3Threshold alarm + DO outputSensor life > 5 years

Key Features

NDIR detectionOxygen-independent NDIR, stable CO2 readings; sensor life > 5 years.3-in-1 climateCO2, temperature and humidity measured in one wall-mounted unit.
Temperature compensationBuilt-in compensation keeps CO2 accuracy across ambient swings.LoRaWAN uplinkOTAA, Class A/C, multi-region bands; LoRaWAN 1.0.3.
Threshold alarmAdjustable upper/lower limits; DO output drives alarm or control.Flexible reportingCycle 1–65535 s (5 min default), configurable over downlink.
Wide-range supply5–28 VDC; Type-C port for serial configuration.Remote managementRestart, thresholds, cycle and calibration set remotely.

Technical Specifications

Measuring principleNon-dispersive infrared (NDIR)
CO2 measuring range0–5000 ppm (other ranges on request)
CO2 resolution±50 ppm
Temperature range-40 °C to +80 °C, accuracy ±0.3 °C
Humidity range0–99.9 %RH, accuracy ±2 %RH

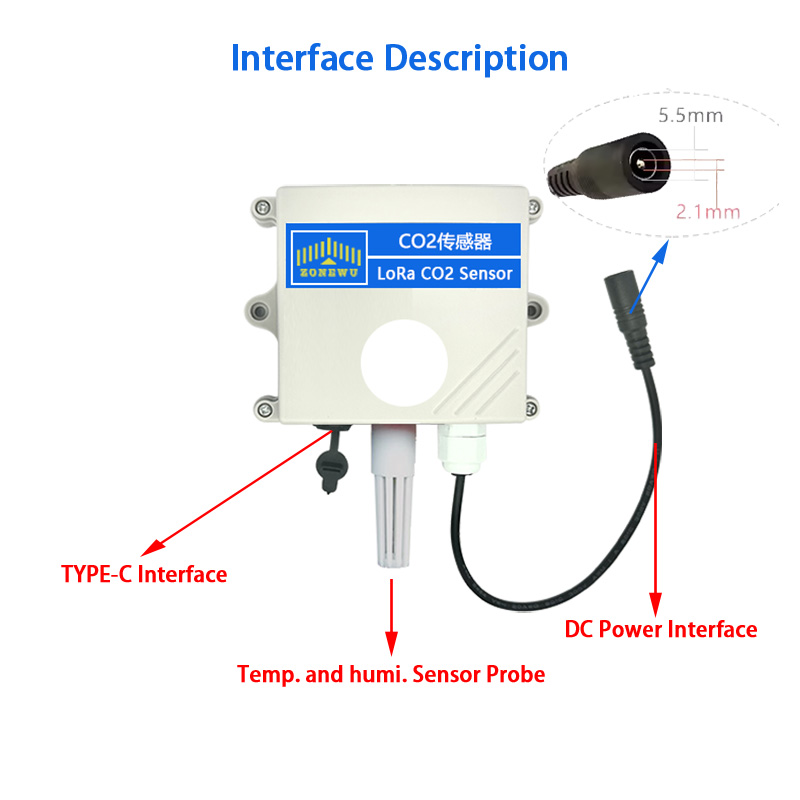

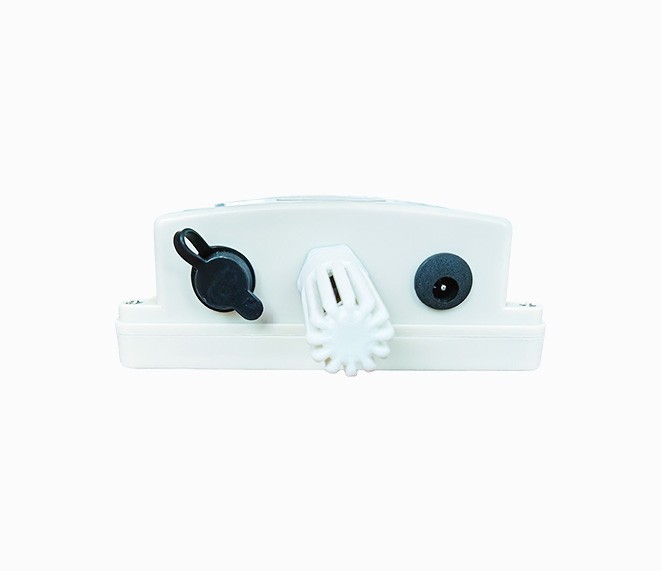

Power supply5–28 VDC, DC5.5×2.1 socket; Type-C for configuration
Weight / Dimensions120 g · 110 × 85 × 44 mm
Operating environment-20 °C to 60 °C, 0–95 %RH (non-condensing)
CommunicationLoRaWAN 1.0.3, LoRa TDMA
Frequency bandsCN470 / IN865 / EU868 / RU864 / US915 / AU915 / KR920 / AS923
Activation / ClassOTAA, Class A / C (default Class A)
Reporting cycle5 min default, configurable 1–65535 s
DO outputTransistor output for alarm / power control
Sensor lifespan / Warranty> 5 years · 1 year

System Architecture

Sensor to gateway to cloud architecture

Applications

Greenhouse CO2 monitoringGreenhouse Climate ControlMonitor CO2, temperature and humidity to guide ventilation and crop growth.HVAC indoor air qualityHVAC & Building AutomationIndoor air quality data for demand-controlled ventilation and comfort.
Livestock barn monitoringLivestock BarnsTrack CO2, temperature and humidity to support ventilation and animal health.Warehouse confined space monitoringWarehouses & Confined SpacesEarly CO2 buildup warning with threshold alarm and ventilation link.

Dimensions & Package

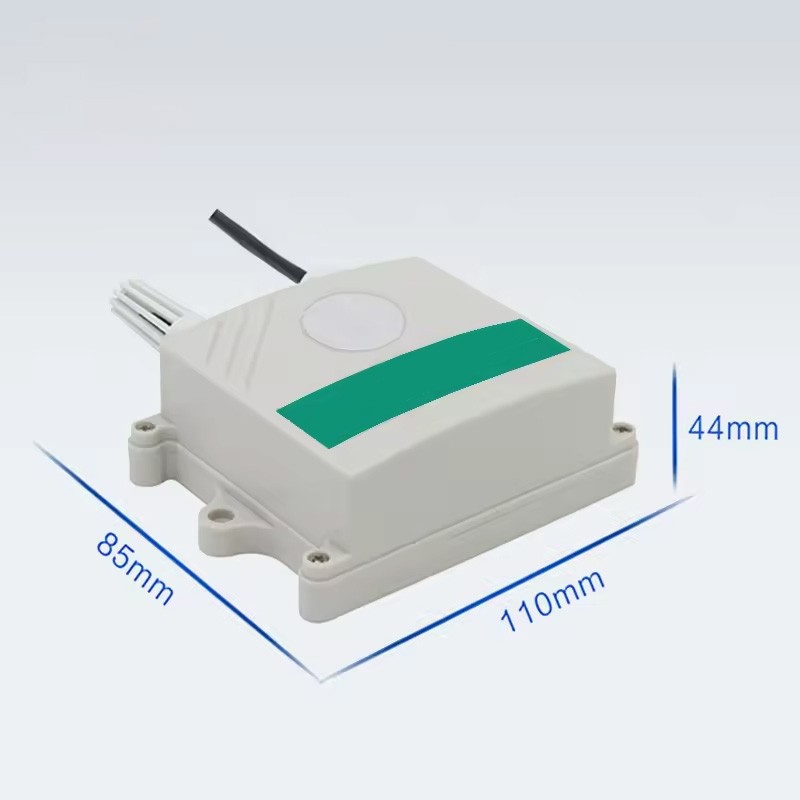

Mounting dimensions 110 x 85 x 44 mm

1×LW303D LoRaWAN CO2 / T / RH sensor

1×Type-C data cable
