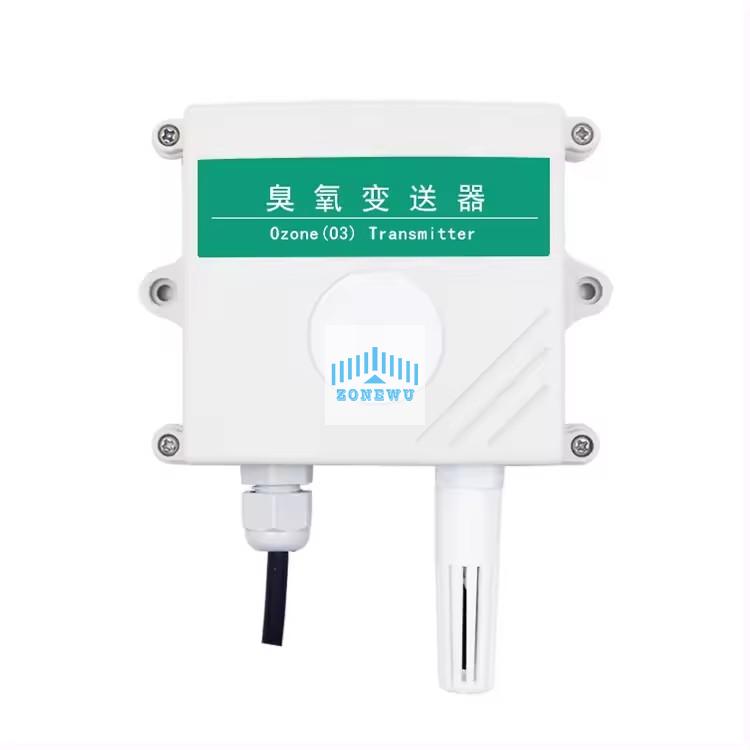

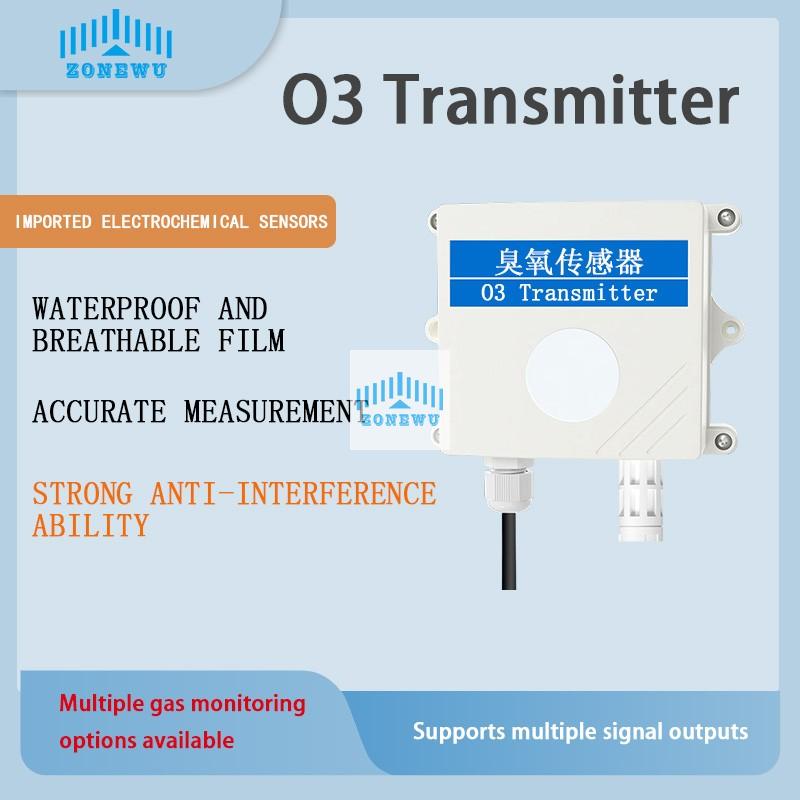

O3 transmitter

This transmitter uses electrochemical technology for ozone concentration measurement, with a rapid and sensitive response, and can reliably detect ozone concentration; The equipment is powered by a wide voltage of 10-30V and has a high level of protection for the casing, which can adapt to various harsh conditions on site.

Ozone transmitter5.jpg Ozone transmitter4.jpg CO sensor5.jpg CO sensor6.jpg

Specifications

Attribute
Customized support	OEM, ODM, OBM
Name	Factory Price RS485 modbus air quality O3 detector O3 gas sensor
Detecting Gas	O3

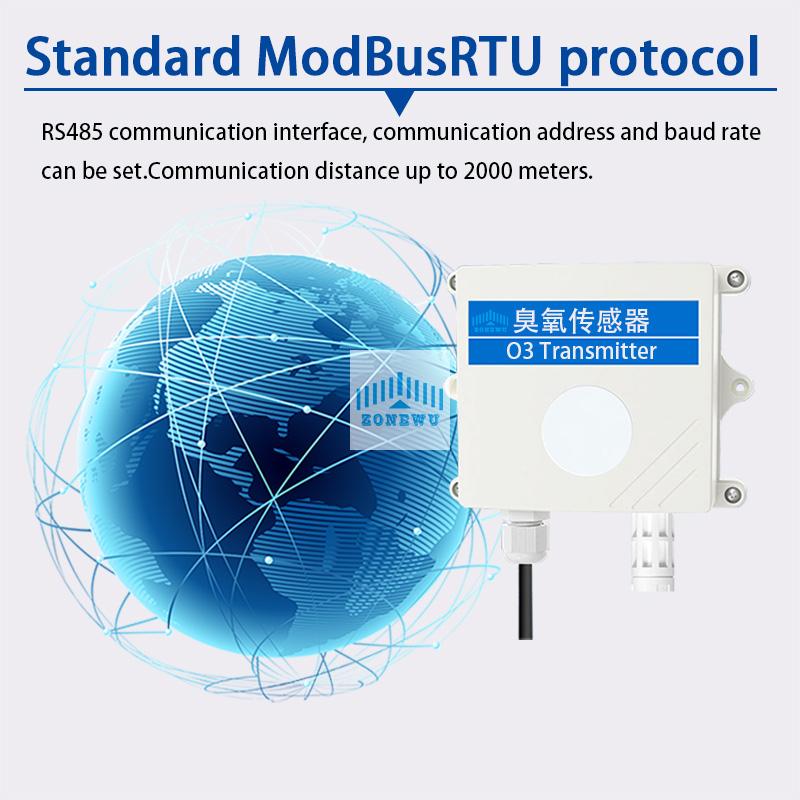

Output signal	4-20mA/0-5V/0-10V/RS485
Working temperature	-20~+50 ℃, 15-90% RH (no condensation)
Response time	≤180s
Application	Environmental Monitoring
O3 Measurement
Range	0~10ppm、0~100ppm、0~1000ppm
Resolution ratio	0~10ppm：0.01ppm 0~100ppm、0~1000ppm：1ppm
O3 accuracy	0~10ppm：±6%FS（@5ppm、25℃、50%RH） 0~100ppm：±6%FS（@50ppm、25℃、50%RH） 0~1000ppm：±12%FS（@500ppm、25℃、50%RH）
Physical Characteristics
Power Supply	10-30VDC
Material	ABS Plastic

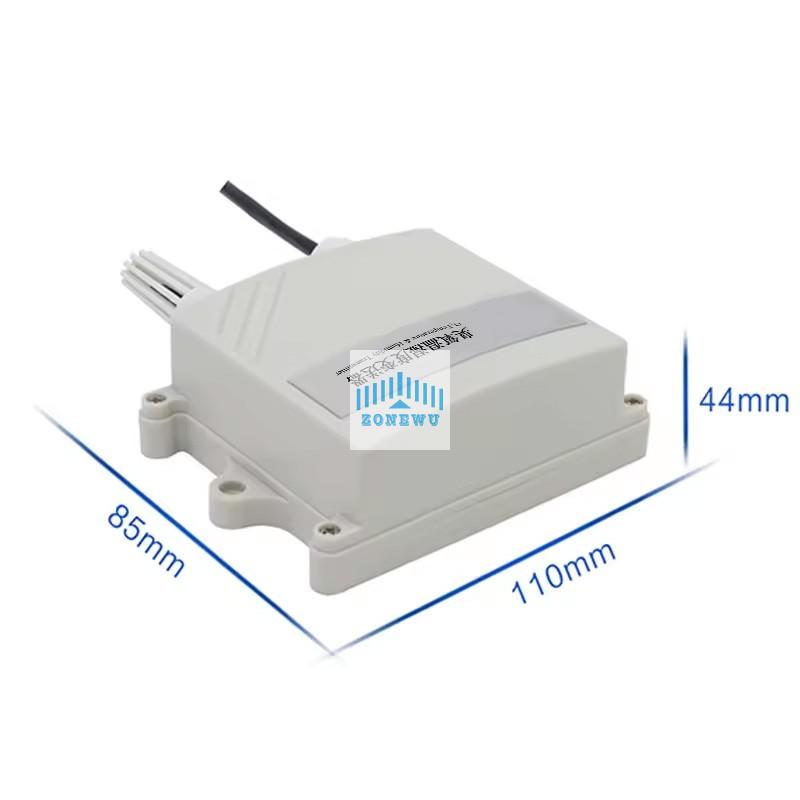

Physical dimensions	110x85x44mm
Installation	Wall mounted installation
