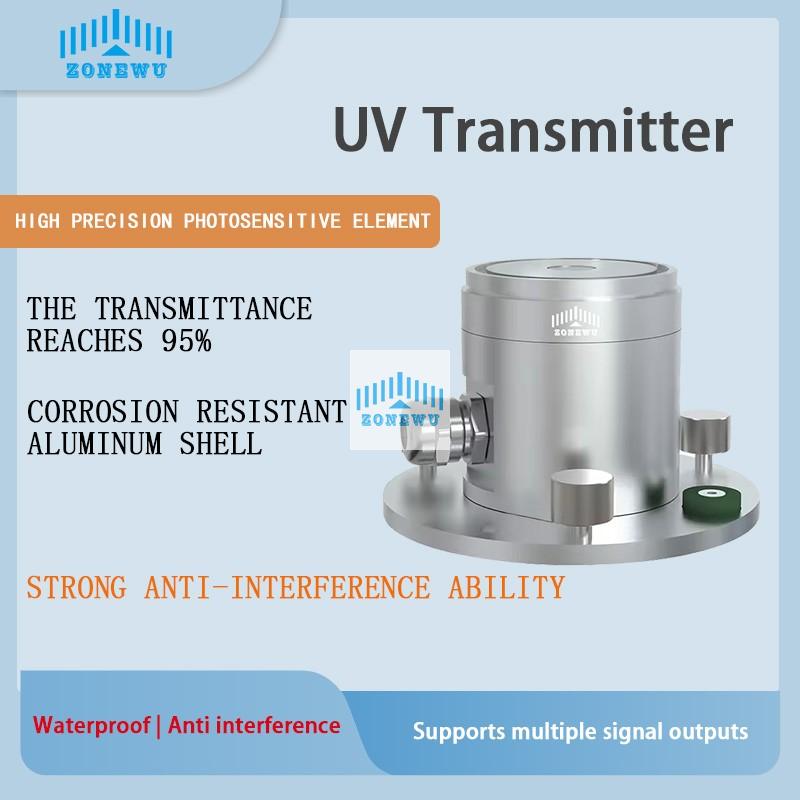

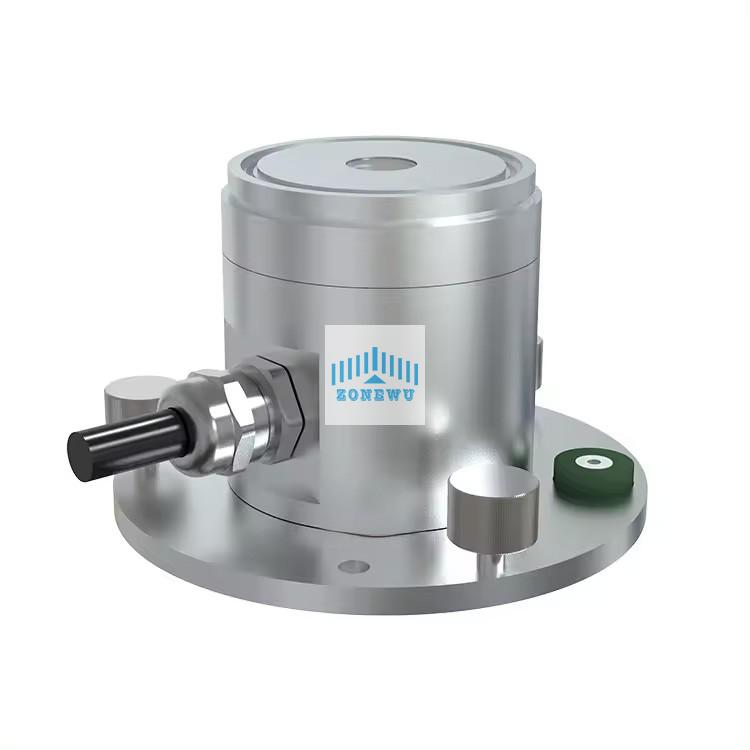

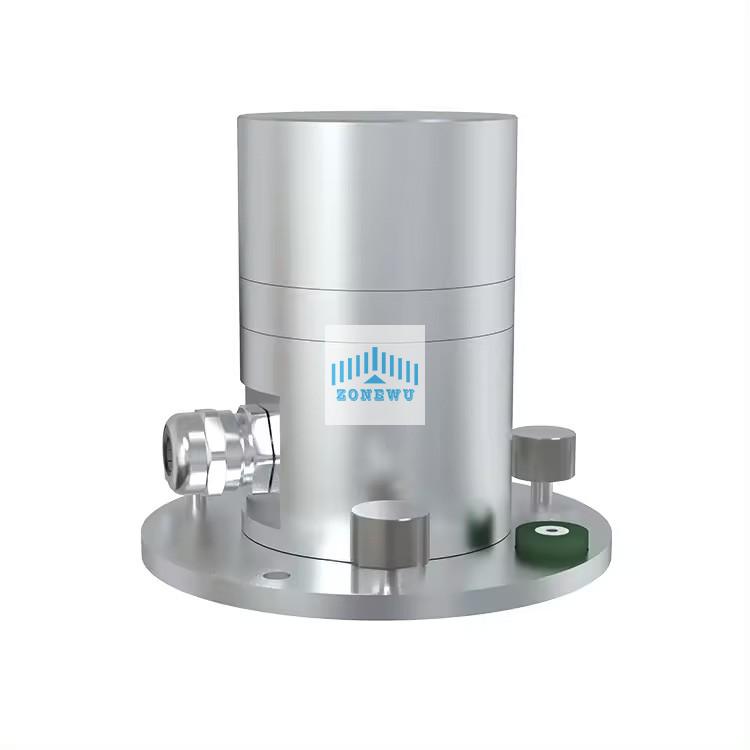

The ZONEWU UV transmitter measures ultraviolet intensity at 290-390nm with 4-20mA, 0-5V, 0-10V or RS485 output. The 10-30VDC aluminum housing unit supports meteorological, agricultural and environmental UV monitoring.

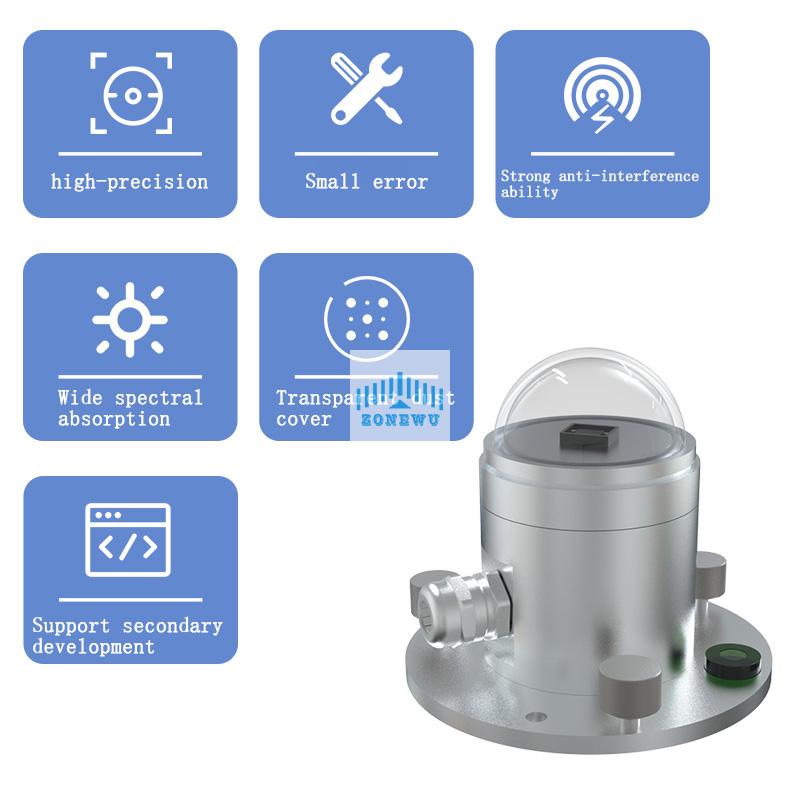

| UV Transmitter · 4-20mA / RS485Ultraviolet intensity measurement at 290-390nm, with analog and RS485 outputs for meteorological, agricultural and environmental UV monitoring.290-390nm UV detection bandResolution 1W/㎡, accuracy ±10%FS (@365nm)0.2s fast response4-20mA / 0-5V / 0-10V / RS485 outputs10-30VDC, aluminum waterproof case |

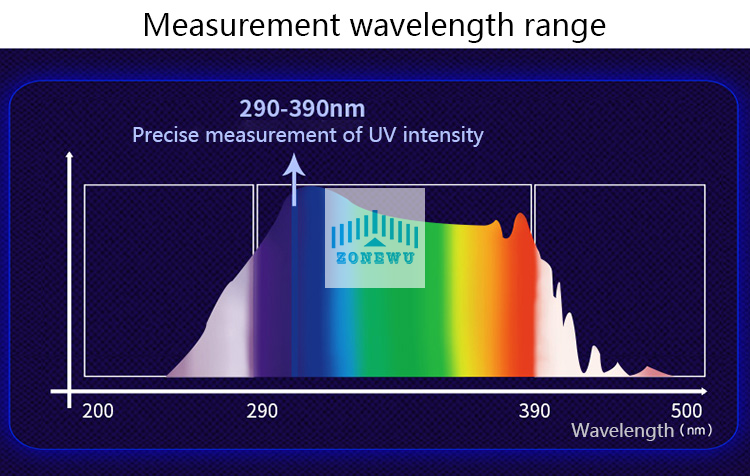

| UV detection bandSensitive photosensitive element covers 290-390nm for ultraviolet intensity measurement. | Accuracy & resolutionResolution 1W/㎡, accuracy ±10%FS (@365nm, 60%RH, 25°C). |
| Fast response0.2s response time for real-time UV intensity tracking. | Multiple outputs4-20mA, 0-5V, 0-10V and RS485 to connect to PLC, DCS or monitoring software. |

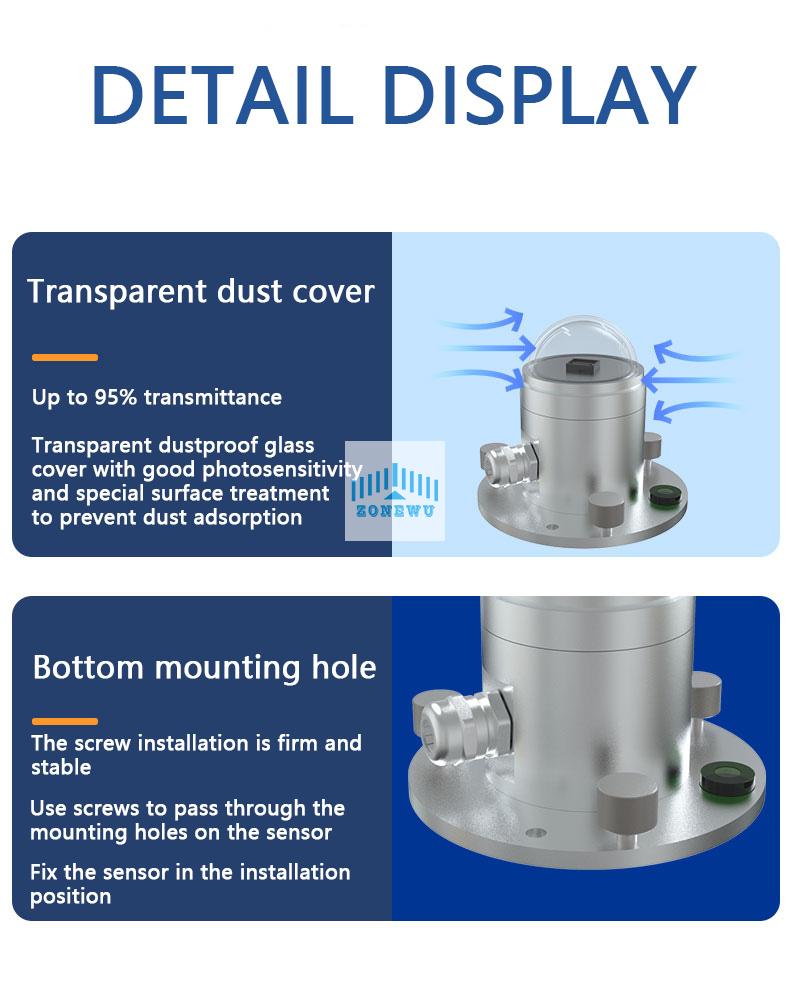

| Durable aluminum caseCorrosion-resistant aluminum housing, 10-30VDC supply, suitable for outdoor use. | Custom supportOEM, ODM and OBM customization available for UV monitoring projects. |
| Measured variable | Ultraviolet (UV) intensity |
| Spectral range | 290-390 nm |
| Resolution | 1 W/㎡ |
| Accuracy | ±10%FS (@365nm, 60%RH, 25°C) |
| Response time | 0.2 s |
| Output signal | 4-20mA / 0-5V / 0-10V / RS485 |
| Operating temperature | -40 to +60 °C |
| Power supply | 10-30 VDC |
| Housing material | Aluminum metal case |
| Customized support | OEM, ODM, OBM |
| Meteorological StationMonitor UV intensity in weather stations and environmental monitoring sites. | Agriculture & GreenhouseTrack UV radiation in greenhouses, fields and plant growth areas. |
| Outdoor Public SpaceUV index monitoring for parks, playgrounds and open public areas. | Industrial UV ProcessUV intensity monitoring in curing, coating and UV exposure processes. |
| Product Manual | ZONEWU Configuration Tool |
