Xiamen ZONEWU LoRaWAN carbon monoxide sensor is a new wireless IoT gas sensor that integrates collection, monitoring, and transmission. Using a three electrode electrochemical gas sensor and high-performance microprocessor to monitor the concentration of carbon monoxide in the environment. Built in temperature and humidity sensors can be used to monitor temperature and humidity values in the environment. It has the characteristics of high sensitivity, high resolution, small size, low power consumption, high stability, and strong anti-interference ability.
Environmental LoRaWAN Nitric Oxide (CO) Sensor
Xiamen ZONEWU The LoRaWAN Nitric Oxide (CO) Sensor is a new type of wireless IoT device that can collect, monitor, and transmit data.
Xiamen ZoneWu LoRaWAN Gas Sensor CO Sensor Features:
It can simultaneously monitor the concentration of carbon monoxide, temperature, and humidity in the environment in real time.
Using a three-electrode electrochemical gas sensor to measure carbon monoxide, coupled with a high-performance chip to process data, and a built-in temperature and humidity sensor to monitor temperature and humidity in real time.
It is small in size, does not take up space, and is suitable for installation in various scenarios.

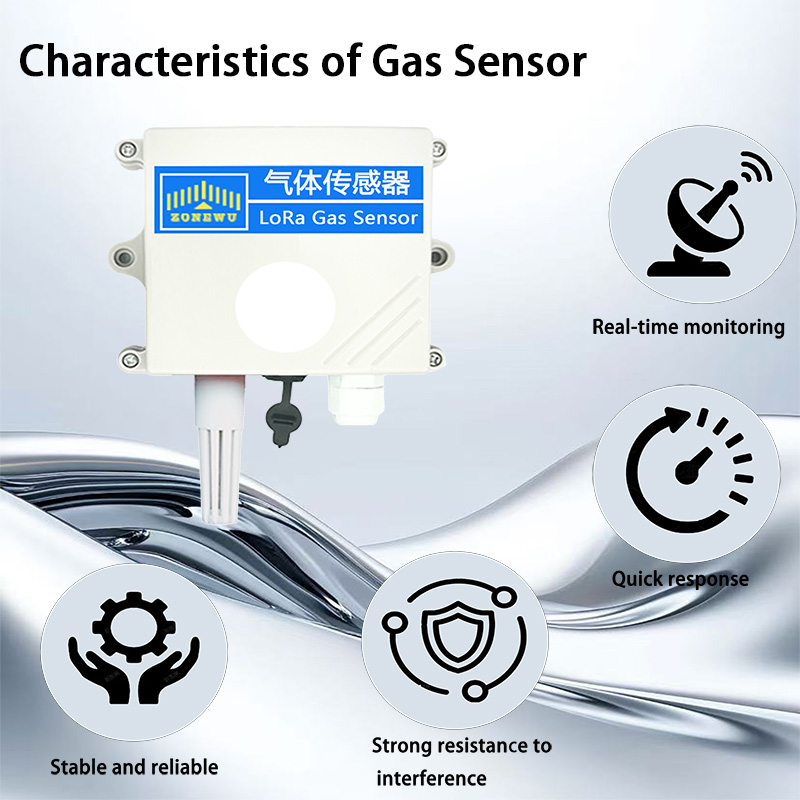

Performance characteristics:
High sensitivity: can quickly detect trace carbon monoxide;
High resolution: precise measurement and accurate data;
Strong stability: long-term use performance is reliable, strong anti-interference ability, and is not easily affected by other gases.
Low power consumption, long battery life; It supports the LoRaWAN protocol, has a long wireless transmission distance, and does not require wiring.
It can be used in industrial environments, energy fields (such as coal mines, gas stations) and other places that need to monitor gas and temperature and humidity.
Technical Parameters
| Power Supply | 5~28VDC |
| Weight | 120g |
| Operating Emperature | -20℃～50℃ |
| Measuring Principle | Electrochemistry |
| Lifespan | <2 years |
| Measuring Range | CO:(0-1000)ppm Temp:-40~+80 ℃ Humi:0~99.9 %RH |
| Frequency | CN470/IN865/EU868/RU864/US915/AU915/ KR920/AS923-1&2&3&4 |
| Mode | OTAA Class A/C(Default: Class C) |
| Reporting cycle | External power supply:5min(Default reporting cycle) Report after preheating for 3 minutes when powered on |
| Communication Protocol | LoRaWAN,LoRa TDMA Networking |
Equipment information (Reference) | AppEUI：0000000000000001 DevEUI：aaaa202404150001 AppKey：00001111222233334444555566667777 MAC Version：LoRaWAN 1.0.3 |
Product Applications
1. Fast response: The electrochemical carbon monoxide sensor can quickly detect changes in carbon monoxide concentration, such as when the gas concentration in the environment just increases, it can "react" and give a signal immediately.
2. High sensitivity: the concentration of carbon monoxide and the current output of the sensor are proportional, the higher the concentration, the larger the current, just like a ruler with clear scales, the signal processing and concentration calculation are simple and accurate.
3. Low cost: Compared with other types of sensors, this kind of electrochemical carbon monoxide sensor is cheaper and has a high cost-performance ratio.

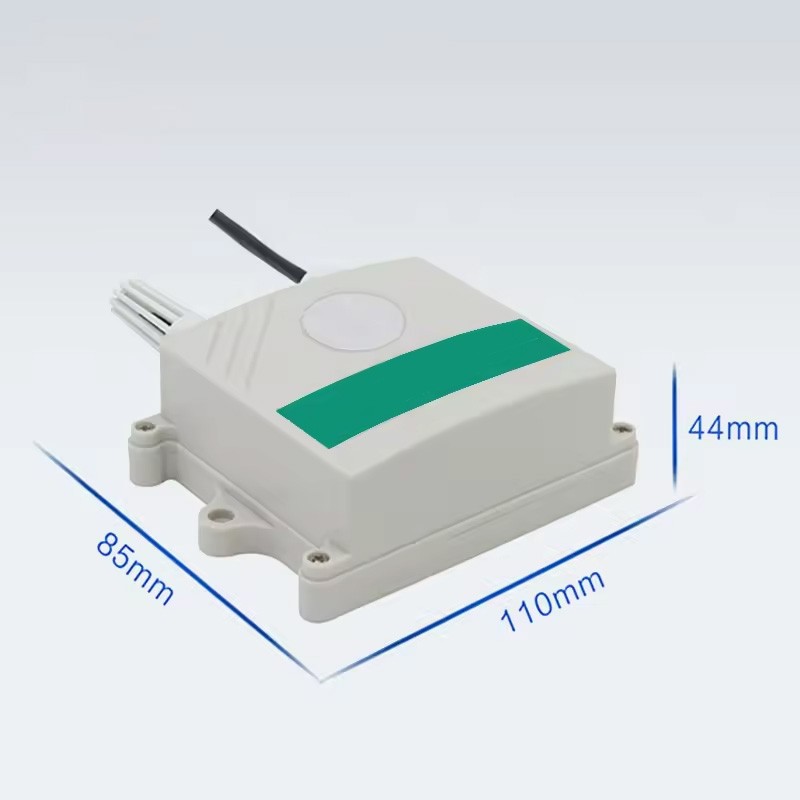

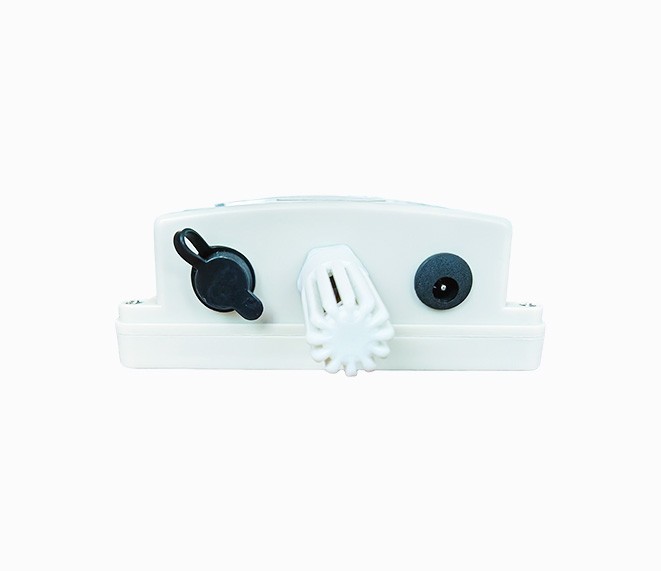

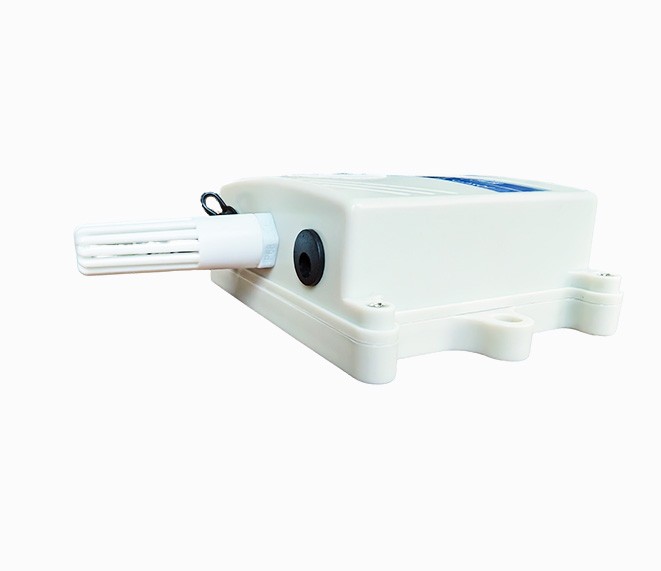

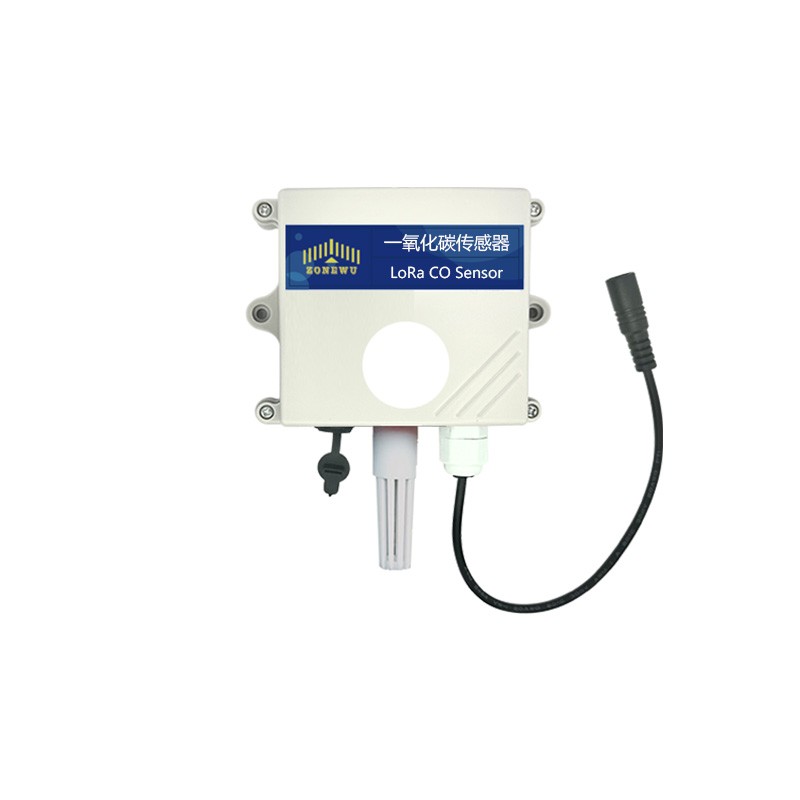

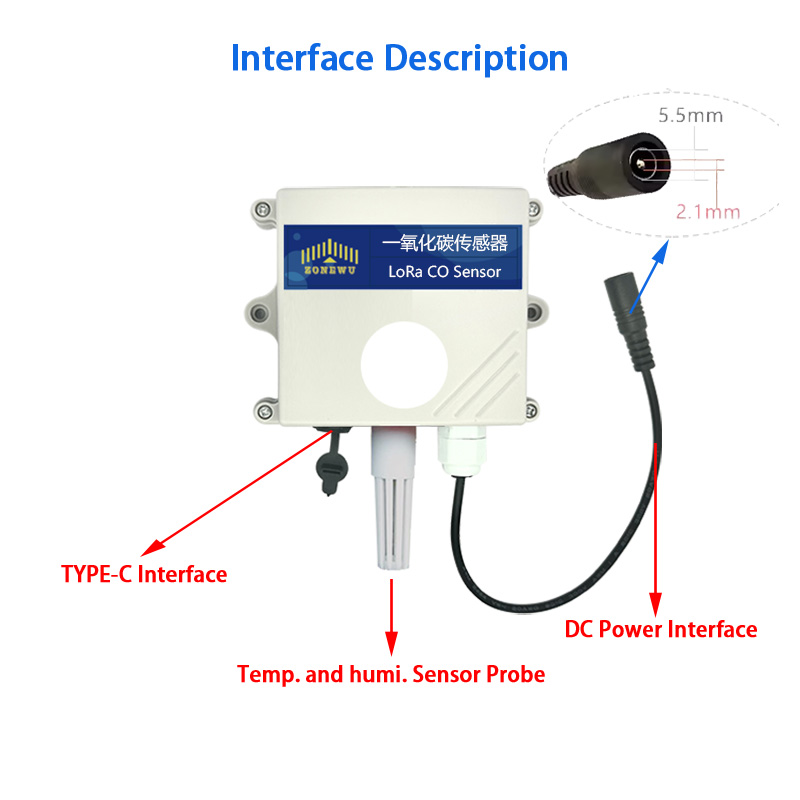

Detailed Images
Common knowledge of CO
How to detect carbon monoxide concentration
Electrochemical sensors, infrared sensors, or portable detectors can be used, and gas alarm devices are commonly used in homes for monitoring.
Where does carbon monoxide come from
Mainly from incomplete combustion of carbon-containing fuels, such as automobile exhaust, coal/gas stove, industrial waste gas, fire, etc.
What is carbon monoxide
Carbon monoxide (CO) is a colorless, odorless, tasteless gas that is toxic, flammable, and a common air pollutant.
Application Scenarios
Industrial production
Waste gas emission monitoring: Conduct real-time monitoring of industrial waste gas emissions to ensure that waste gases meet emission standards and reduce pollution to the environment.
Environmental inspection
Air quality monitoring helps people understand air quality and protect the environment and health by detecting harmful gases such as sulfur dioxide.
Safety protection
In coal mines and tunnels, gas sensors detect toxic and harmful gases such as methane and warn against accidents.
FAQ
1.Are you manufacture?
A:Yes,we are Tranmitter manufacturer and exporter in China with more than 10 years of CE,ROHS,FCC,ISO and 11 patents experience.
2.Do you offer OEM services?
A:Yes,we can provide you with OEM services and design housings and logos.
3.DO you offer free samples?
A:Sorry,we don't offer free samples. After ordering in bulk, we will deduct the sample fee from the second order.
Why Choose ZONEWU
Professional IoT Sensor Manufacturer
Specializes in R&D, production, and sales of IoT sensors with strong technical expertise
Products certified with international standards (e.g., CE, RoHS), ensuring high quality and long lifespan.
Products serve diverse industries such as water quality monitoring, environmental monitoring, and industrial automation, offering strong market adaptability.
Utilizes cutting-edge communication technologies like LoRaWAN and NB-IoT for remote, low-power data transmission.
Provides tailored products and OEM/ODM services to meet diverse application needs.
