ZONEWU LoRaWAN Powered Multi-Parameter Soil Sensor is a high-precision, low-power soil environment monitoring device developed based on LoRaWAN wireless communication technology. Specifically designed for scenarios such as agricultural irrigation, forestry cultivation, ecological monitoring, and horticultural planting, this product can simultaneously collect multiple key parameters in the soil.

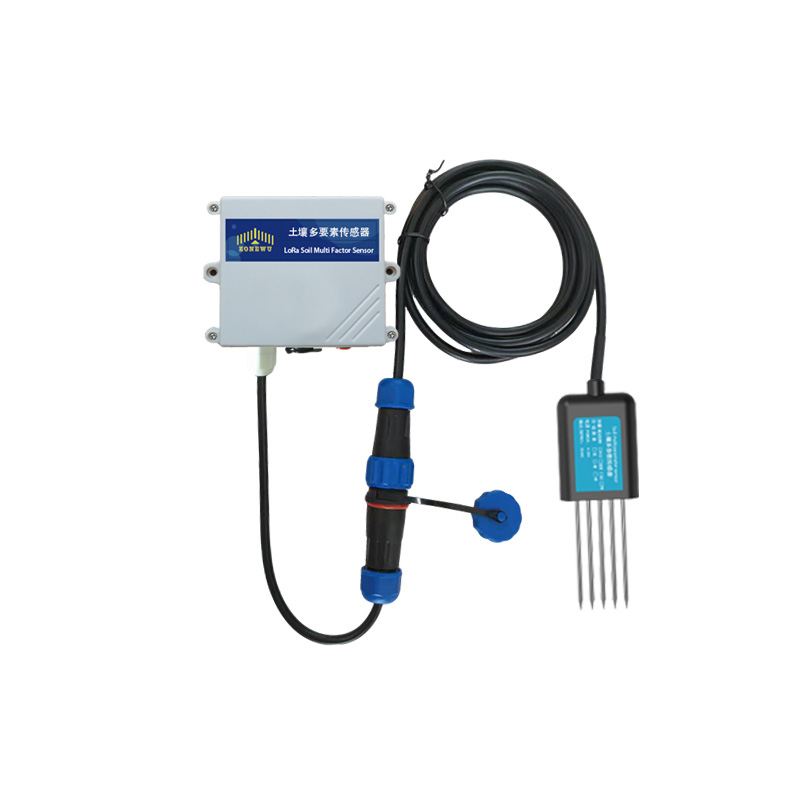

ZONEWU LoRaWAN Powered Multi-Parameter Soil Sensor
Xiamen ZONEWU LoRaWAN Multi-Parameter Soil Sensor is a wireless soil monitoring device tailored for precision agriculture scenarios. Its core advantage lies in leveraging LoRaWAN wireless technology to achieve stable collection and long-distance transmission of multi-dimensional soil data. Below is a detailed introduction to its key information:
1. Core Detection Capabilities
The sensor focuses on comprehensive multi-parameter monitoring. Beyond basic indicators like soil temperature, humidity, and electrical conductivity (EC), it emphasizes the detection of core agricultural nutrients and pH value. It can accurately measure soil nitrogen, phosphorus, potassium (NPK) content and pH level, enabling growers to fully grasp soil fertility and acid-base status. This avoids blind fertilization and provides data support for formulating precise water and fertilizer management plans for crops, distinguishing it from basic soil sensors that only monitor temperature and humidity.
2. Key Performance Features
Stable Wireless Transmission: Adopts LoRaWAN communication protocol to meet the long-distance transmission needs of the Internet of Things (IoT). It can stably transmit on-site soil data to gateways without complex wiring, suitable for monitoring large-area farmland, orchards, and other open scenarios.
Using aviation connectors as equipment interfaces, it has high reliability and strong protection characteristics, can adapt to complex outdoor environments, ensure stable connection between sensors and LoRaWAN collectors, and guarantee the security and durability of data transmission links.
Building wireless communication links based on LoRa technology, combined with LoRaWAN collectors, to form a low-power wide area network communication system, breaking through the limitations of traditional wired transmission, achieving long-distance wireless transmission of sensor data, and reducing deployment costs and construction difficulties.
Based on the low-power characteristics of LoRa technology and combined with solar power supply systems, sensors can achieve long-term, low-energy operation; Simultaneously supporting wireless remote data transmission, it can quickly send monitoring data to the central system, meeting the needs of real-time data collection and management.
In the field of agriculture, sensor monitoring data provides decision-making basis for precision irrigation and scientific fertilization, helping users adjust water and fertilizer supply according to the actual soil conditions, avoid excessive use of water resources and fertilizers, reduce production costs, and improve agricultural production efficiency and resource utilization.
In addition to agriculture, this sensor is also widely used in horticultural planting and environmental monitoring scenarios. By continuously monitoring soil conditions, providing a suitable growth environment for horticultural plants and helping to improve crop quality; In environmental monitoring, it can be used for soil state analysis in ecological protection areas, maintaining ecological balance, and promoting sustainable development.
Product Parameters
Model | LW504B-Mul |
Power Supply | ER26500 Li-SOCl2 8500 mAh battery,3.6V |
Weigt | 200g |
Operating Emperature | 0℃~60℃ |
Measuring Range | Humidity：0%RH-100%RH 0-50% inner soil 2%, 50-100% inner soil 3% (brown soil, 60%. 25 ° C) |
Temperature：-40°C~+80°C,±0.5℃(25°℃) | |
EC: 0-20000us/cm Within the range of 0-10000 US/cm, it is ± 3%; Within the range of 10000-20000us/cm | |
it is ± 5%. (Brown soil, 60% RH, 25 ° C) | |
NPK: 0-1999 mg/kg(mg/L) 0-2999 mg/kg(mg/L) ≤5% | |
PH:3-9PH | |
Sensor External Dimensions | 45*15*127mm |
Steel Needle Material | Stainless Steel |
Sealing Material | Black flame retardant epoxy resin |
Transmitter Line length | Default 2m (other lengths can be customized) |
Frequency | CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4 |
Mode | OTAA Class A/C |
Reporting cycle | 60min(Default ) |
Battery Life | ≤3 years （Depending on the reporting cycle） Note: Due to the high power consumption of Soil Sensor |
it is not recommended touse short cycle data reports | |
Communication Protocol | LoRaWAN,LoRa TDMA Networking |
Equipment information (Reference) | AppEUI:0000000000000001 |
DevEUI:aaaa202404150001 | |
AppKey:00001111222233334444555566667777 | |
MAC Version:LoRaWAN 1.0.3 |
Product Applications
Detailed Images
Why Choose ZONEWU
Professional IoT Sensor Manufacturer
Specializes in R&D, production, and sales of IoT sensors with strong technical expertise
Products certified with international standards (e.g., CE, RoHS), ensuring high quality and long lifespan.
Products serve diverse industries such as water quality monitoring, environmental monitoring, and industrial automation, offering strong market adaptability.
Utilizes cutting-edge communication technologies like LoRaWAN and NB-IoT for remote, low-power data transmission.
Provides tailored products and OEM/ODM services to meet diverse application needs.
