Wireless Soil Acidity Monitor for Precision Agriculture

Wireless Soil Acidity Monitor for Precision Agriculture

ZONEWU LoRaWAN Operated Soil pH Sensor Long-Distance Wireless Transmission: Based on LoRaWAN communication technology, it offers ultra-long-distance spread spectrum communication capability and high anti-interference performance.

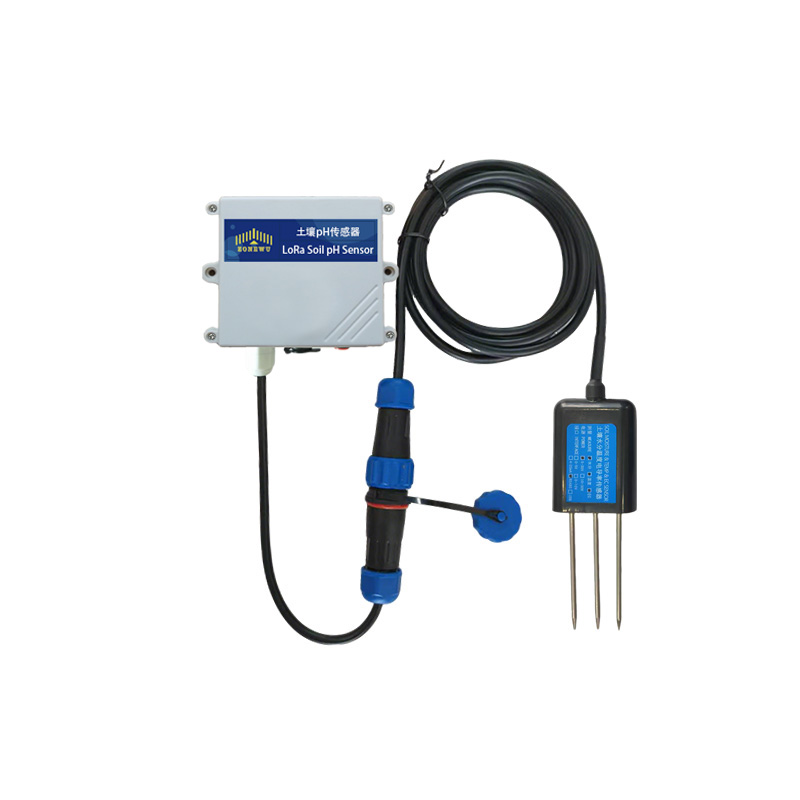

ZONEWU LoRaWAN Operated Soil pH Sensor

Long - lasting Power Supply: Adopting high - capacity lithium - thionyl chloride battery, it boasts excellent low - power performance, which can support long - term outdoor unattended operation and reduce the trouble of frequent battery replacement.

Reliable Waterproof Design: Its probe has IP68 waterproof rating, which can resist the humid environment in soil and even rainwater immersion. It can be buried in soil for long - term stable work without being affected by harsh outdoor conditions.

User - Friendly & Versatile ApplicationIt adopts a split - type design, supporting multiple signal output modes such as RS485 and 4 - 20mA. It is flexible to install and easy to maintain and calibrate later. It is mainly applied to smart agriculture scenarios including greenhouses, orchards and field planting.

It helps growers adjust irrigation and fertilization plans timely. In addition, it can also be used in soil research and vegetation cultivation that require long - term soil monitoring.

LoRaWAN Operated Soil pH Sensor Specification:

Model	LW502-PH
Power Supply	ER26500 Li-SOCl2 8500 mAh battery,3.6V
Operating Emperature	20℃~60℃
Soil pH Parameters	-Range: 3-9 pH
Soil pH Parameters	Resolution: 0.1
Long Term Stability	≤ 5%/year
Probe Material	Anti corrosion special electrode
Transmitter Line length	Default 2m (other lengths can be customized)
Frequency	CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4
Mode	OTAA Class A/C
Reporting cycle	60min(Default )
Battery Life	≤3 years （Depending on the reporting cycle） Note: Due to the high power consumption of Soil Sensor
Battery Life	it is not recommended touse short cycle data reports
Communication Protocol	LoRaWAN,LoRa TDMA Networking
Equipment information (Reference)	AppEUI:0000000000000001
	DevEUI:aaaa202404150001
	AppKey:00001111222233334444555566667777
	MAC Version:LoRaWAN 1.0.3

Product Applications

High precision: accurately measure the slightest changes in soil electrical conductivity, with a wide measurement range.
Multi - parameter integration: simultaneously detect soil temperature and humidity while measuring EC value for comprehensive data collection.
Features battery-powered design, compatible with outdoor deployment scenarios without external power sources. It meets the requirements of long-term agricultural monitoring and reduces operational and maintenance costs associated with frequent power replacement.
Low - power wireless transmission: use LoRa technology for long - range, low - power data transmission, reducing energy consumption.
Strong environmental adaptability: withstand harsh outdoor conditions such as rain, dust, and extreme temperatures.
Easy installation and deployment: quick setup with an aviation connector and flexible placement in various soil monitoring scenarios.

Detailed Images

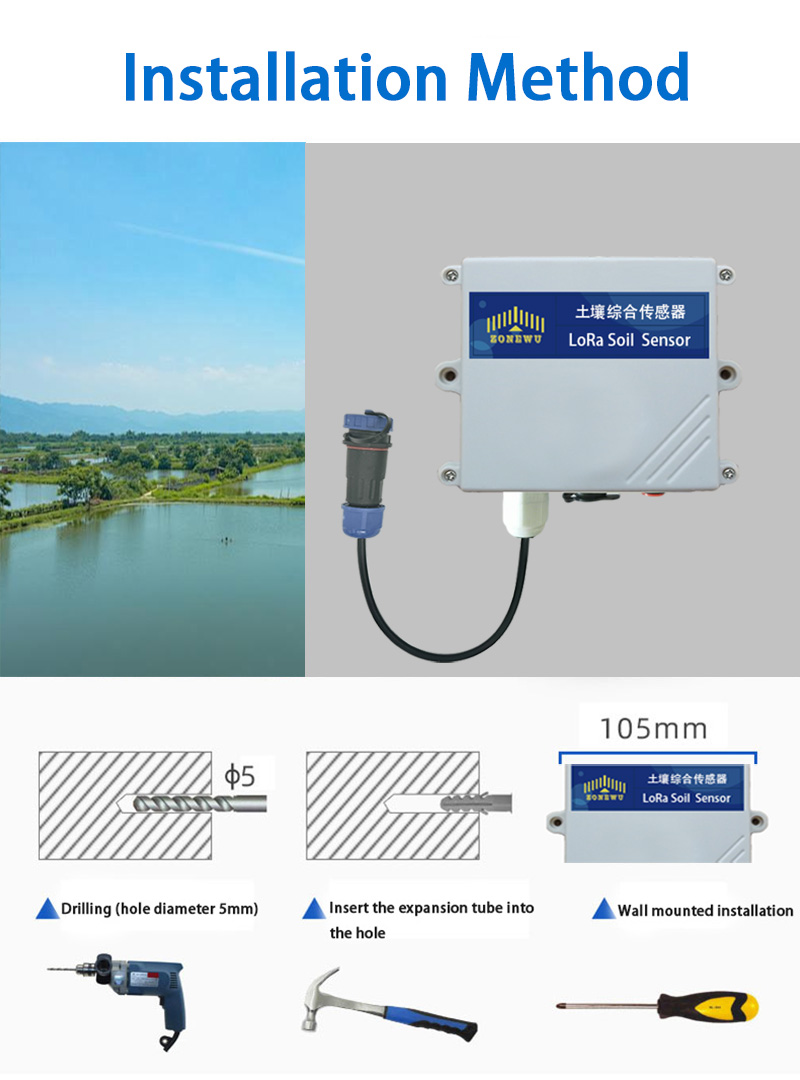

LoRa soil sensor Installation method.jpg

LoRa soil sensor size.jpg

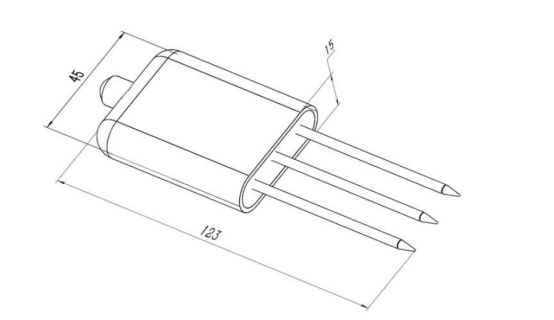

Soil EC size.jpg

Application Scenarios.jpg
