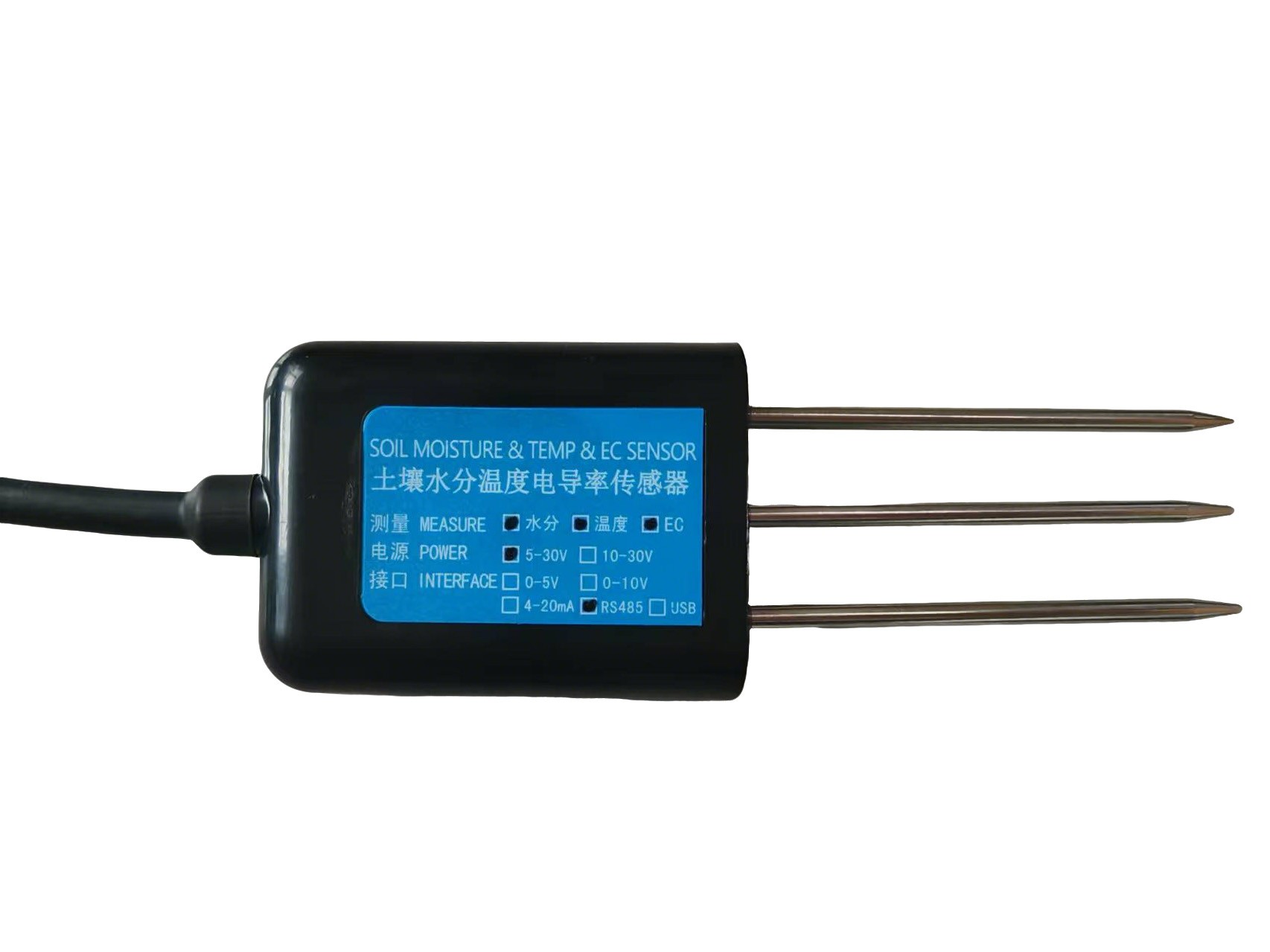

Smart High Precision LoRa Solar Soil EC Sensor

LoRaWAN soil moisture, temperature, and electrical conductivity (EC) three in one sensor, designed specifically for precision agriculture. It can penetrate deep into the soil, accurately detect soil temperature, humidity, conductivity, and other values in real time, with minimal measurement error, and is powered by solar energy.

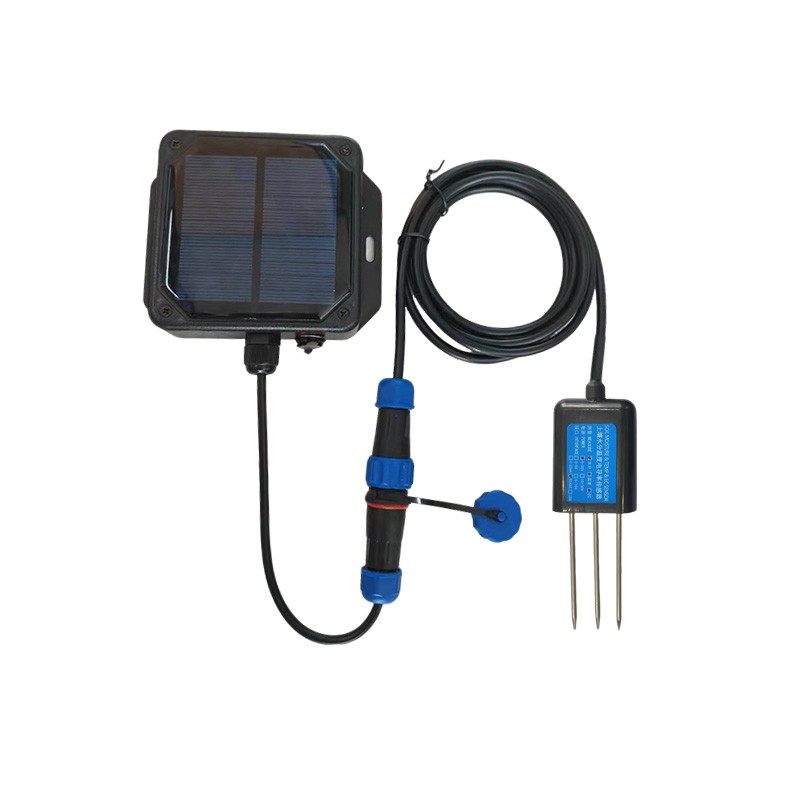

LoRa Solar Soil Electrical Conductivity (EC) Sensor


xiamen ZONEWU LoRa Soil EC Sensor is a wireless IoT sensor that integrates data collection, monitoring, and transmission.


xiamen ZoneWu LoRa Solar Soil EC Sensor Features:


This solar soil sensor integrates three core parameter measurement functions: soil conductivity, temperature, and humidity. It can accurately capture data on soil salt concentration and temperature and humidity changes, providing comprehensive and accurate basic data support for soil environment analysis.

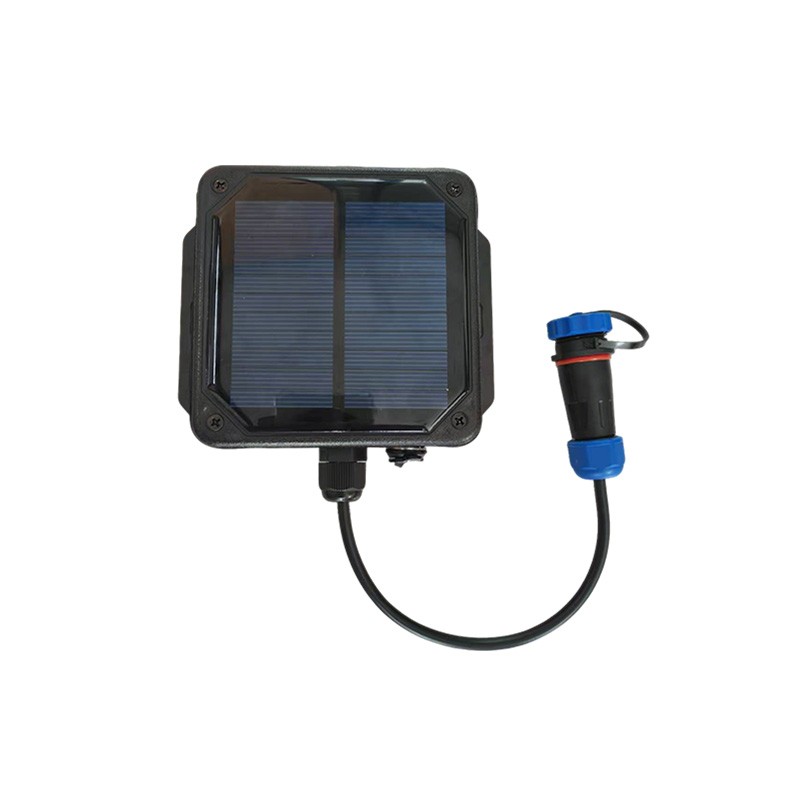

Using aviation connectors as equipment interfaces, it has high reliability and strong protection characteristics, can adapt to complex outdoor environments, ensure stable connection between sensors and LoRaWAN collectors, and guarantee the security and durability of data transmission links.


Building wireless communication links based on LoRa technology, combined with LoRaWAN collectors, to form a low-power wide area network communication system, breaking through the limitations of traditional wired transmission, achieving long-distance wireless transmission of sensor data, and reducing deployment costs and construction difficulties.

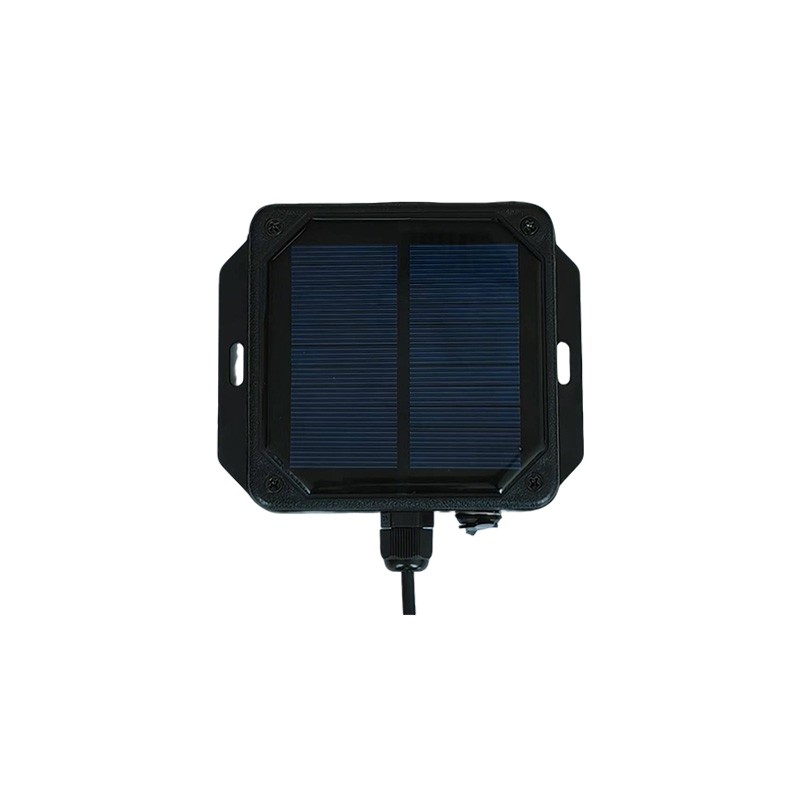

Based on the low-power characteristics of LoRa technology and combined with solar power supply systems, sensors can achieve long-term, low-energy operation; Simultaneously supporting wireless remote data transmission, it can quickly send monitoring data to the central system, meeting the needs of real-time data collection and management.


In the field of agriculture, sensor monitoring data provides decision-making basis for precision irrigation and scientific fertilization, helping users adjust water and fertilizer supply according to the actual soil conditions, avoid excessive use of water resources and fertilizers, reduce production costs, and improve agricultural production efficiency and resource utilization.


In addition to agriculture, this sensor is also widely used in horticultural planting and environmental monitoring scenarios. By continuously monitoring soil conditions, providing a suitable growth environment for horticultural plants and helping to improve crop quality; In environmental monitoring, it can be used for soil state analysis in ecological protection areas, maintaining ecological balance, and promoting sustainable development.


Product Parameters

Power SupplySolar Powered + Li-ion Battery
LW501S Weight230g
Work EnvironmentTemperature: -30 ℃ to 70 ℃; Humidity: ≤ 95% RH




Measuring Range

Humidity:0%RH-100%RH

0-50% inner soil 2%, 50-100% inner soil 3%

(brown soil, 60%. 25 ° C)

Temperature:-40°C~+80°C,±0.5℃(25°℃)

EC: 0-20000us/cm

Within the range of 0-10000 US/cm, it is ± 3%; Within the range

of 10000-20000us/cm, it is ± 5%. (Brown soil, 60% RH, 25 ° C)

EC Sensor External Dimensions45*15*123mm
Steel Needle MaterialStainless Steel
Sealing MaterialBlack flame retardant epoxy resin
Transmitter Line lengthDefault 2m (other lengths can be customized)
Frequency

CN470/IN865/EU868/RU864/US915/AU915/

KR920/AS923-1&2&3&4

ModeOTAA Class A


Reporting cycle

≤5 years (Depending on the on-site lighting conditions)

Note: Due to the high power consumption of EC sensors, it is

not recommended to use short-term data reports for a long time

Communication ProtocolLoRaWAN



Equipment information

(Reference)

AppEUI:0000000000000001

DevEUI:aaaa202404150001

AppKey:00001111222233334444555566667777

MAC Version:LoRaWAN 1.0.3


Product Applications

  1. High precision: accurately measure the slightest changes in soil electrical conductivity, with a wide measurement range.

  2. Multi - parameter integration: simultaneously detect soil temperature and humidity while measuring EC value for comprehensive data collection.

  3. Solar - powered sustainability: continuous operation via solar energy, eliminating the need for frequent battery replacements.

  4. Low - power wireless transmission: use LoRa technology for long - range, low - power data transmission, reducing energy consumption.

  5. Strong environmental adaptability: withstand harsh outdoor conditions such as rain, dust, and extreme temperatures.

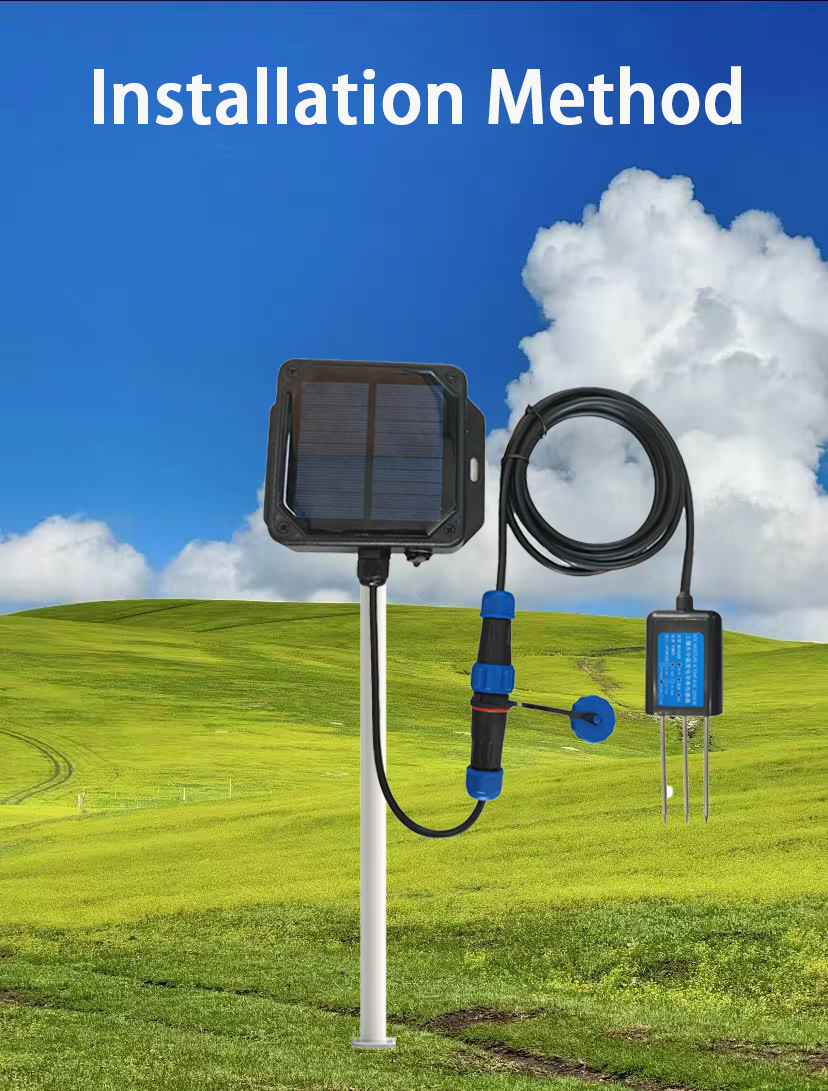

  6. Easy installation and deployment: quick setup with an aviation connector and flexible placement in various soil monitoring scenarios.


Detailed Images

Soil EC (3).png


EC (2.jpg
