Ethernet type temperature and humidity transmitter (TCP/IP)

The industrial grade Ethernet type temperature and humidity transmitter uploads the collected temperature and humidity data to the server through Ethernet, supports communication within the local area network, cross gateway wide area network communication, and supports dynamic domain name resolution DNS. The product adopts a large LCD display, with dual control of temperature and humidity upper and lower limits, free setting of limit values, temperature and humidity calibration based on password, network port data transmission and other functions. The internal integrated alarm function module (buzzer or relay) can achieve high and low temperature alarms and high and low humidity alarms.

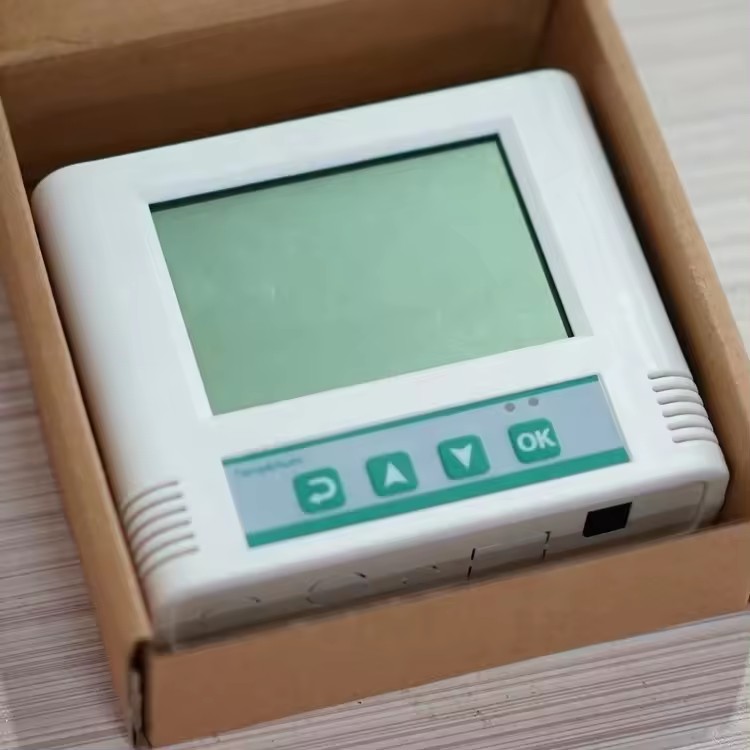

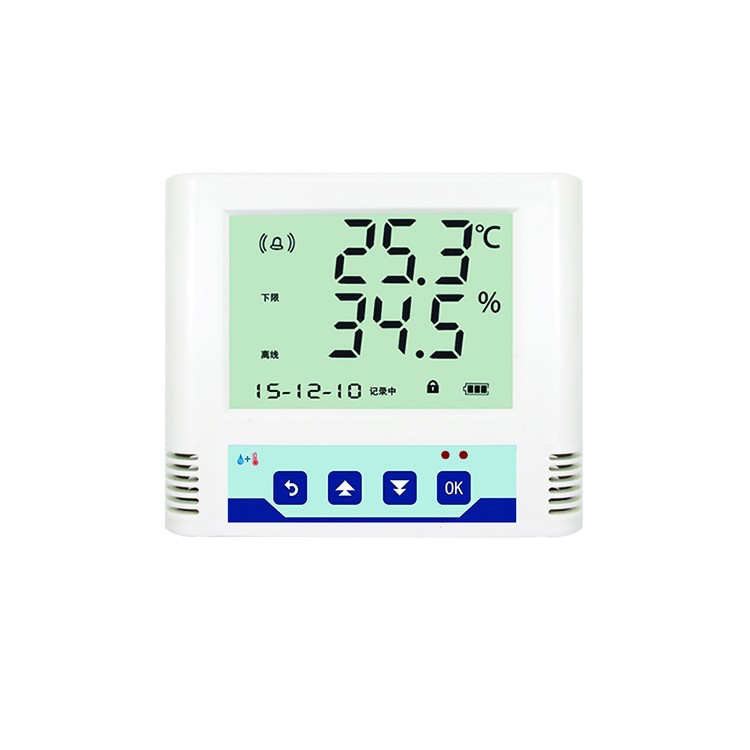

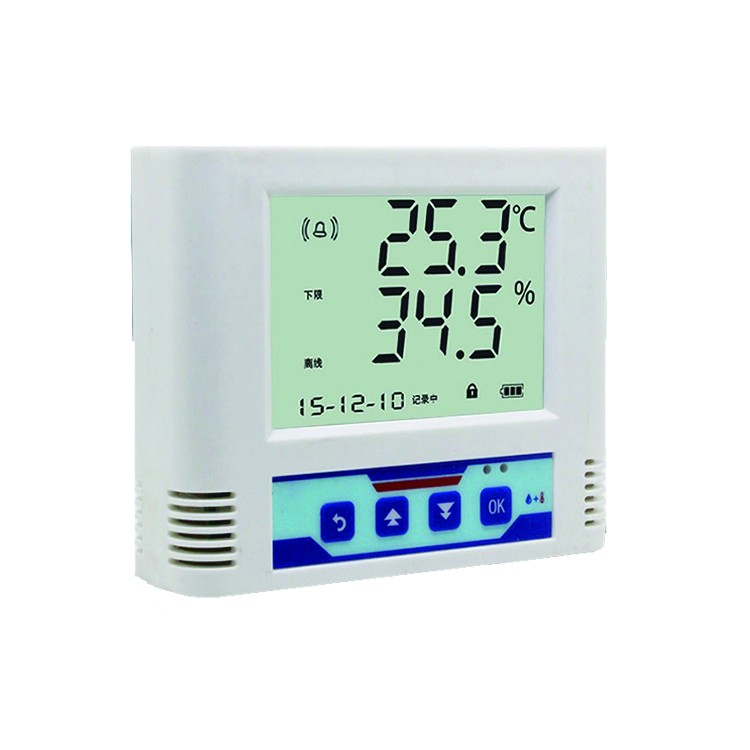

Ethernet type <a href=https://www.zonewu.com/en/product/RS100.html target='_blank'>Temperature and Humidity Transmitter</a> TCP-1.jpg

Ethernet type temperature and humidity transmitter TCP-2.jpg

Ethernet type temperature and humidity transmitter TCP-4.jpg




Ethernet type temperature and humidity transmitter TCP-3.jpg


Specifications





Attribute

Customized support

OEM, ODM, OBM

Name

Indoor LCD display smart temperature and humidity sensor

Keywords

Temperature and Humidity Probe Sensor

Display

LCD Screen

Alarm

Built in buzzer, external sound and light alarm, optional relay

Storage mode

Automatic loop storage

Storage capacity

65535 articles

Output signal

Ethernet(TCP/IP)

Temperature Measurement

Range

-40°C to + 80°C

Accuracy

± 0.5°C



Humidity Measurement

Range

0% to 100% RH

Accuracy

± 3%



Physical Characteristics

Power Supply

10-30VDC

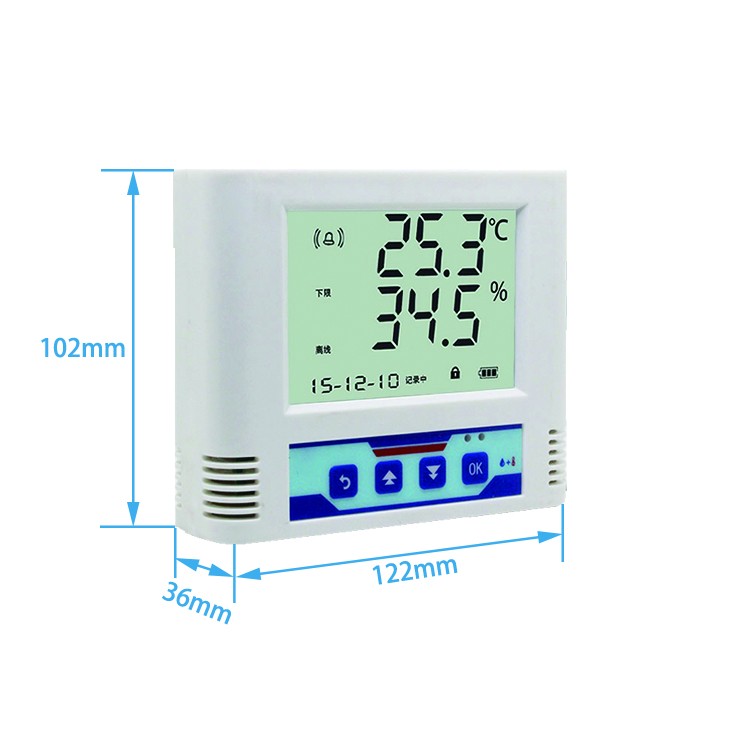

Dimensions

122x102x36  mm

Installation

Wall Mounting
