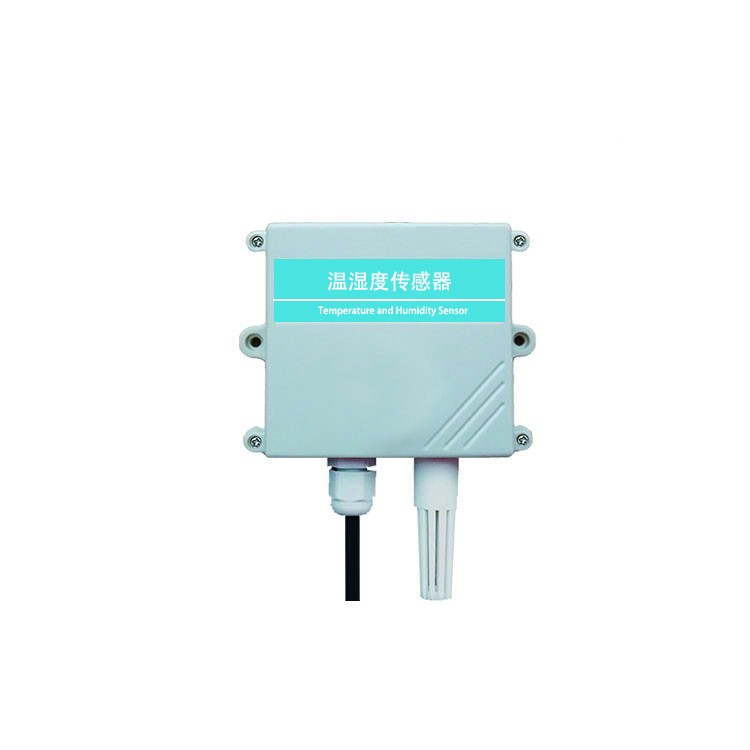

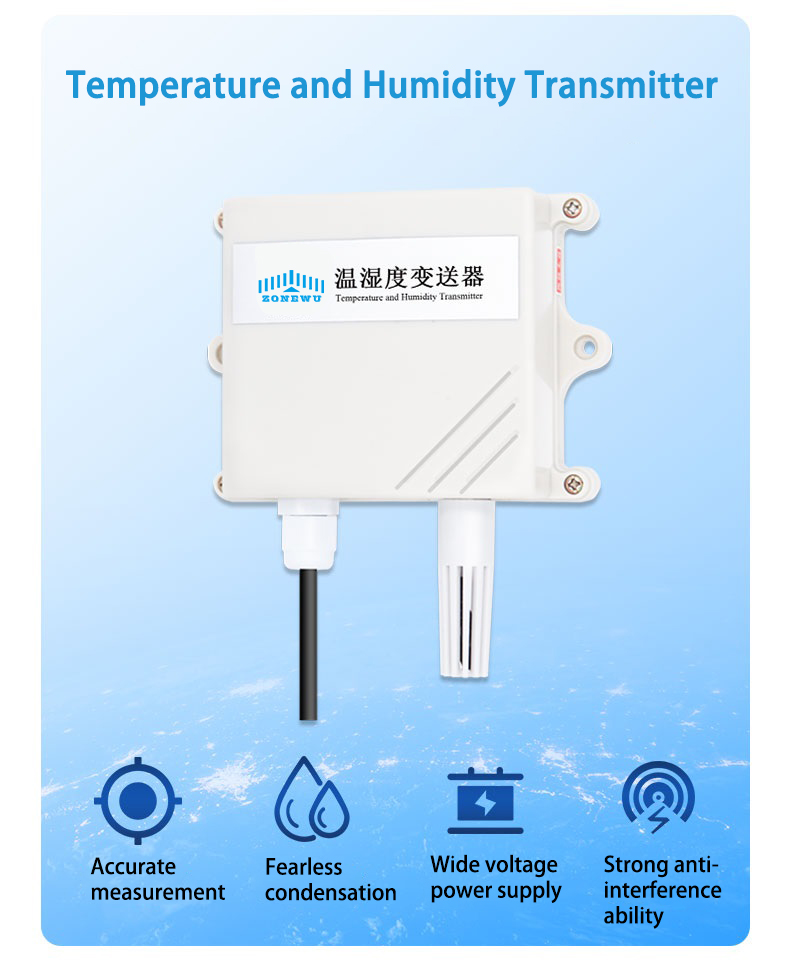

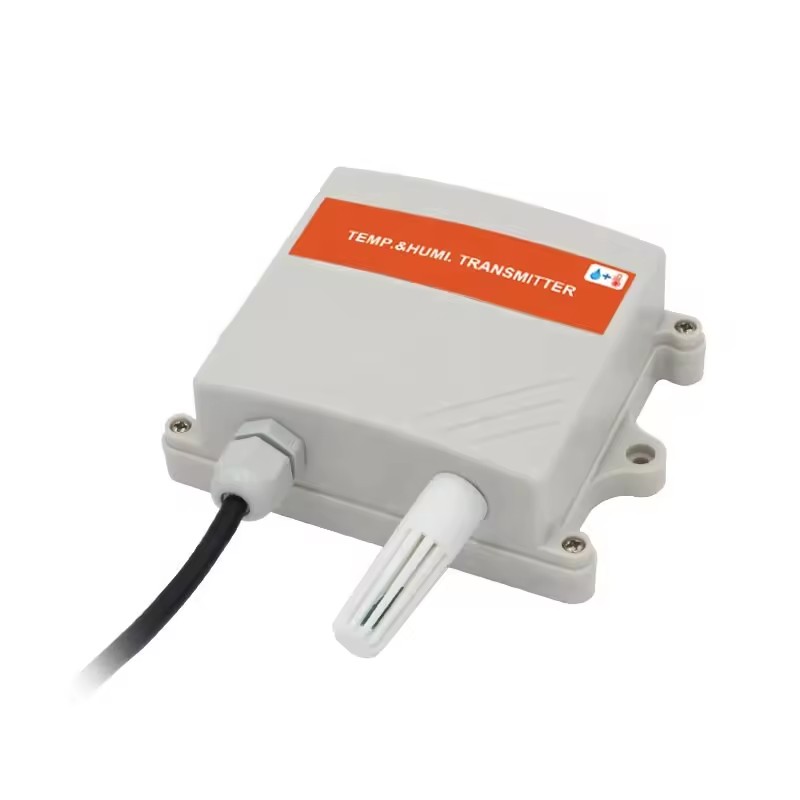

Temperature and Humidity Transmitter

This product is a wall mounted shell with a high protection level of IP65, which is rain and snow resistant and has good breathability. The circuit adopts industrial grade microprocessor chips imported from the United States and high-precision temperature sensors imported, ensuring excellent reliability, high precision, and interchangeability of the product. This product adopts a particle sintered probe sheath, which is directly connected to the shell and has a beautiful and elegant appearance. The output signal types are divided into RS485 and can communicate up to 2000 meters. The standard ModBus protocol supports secondary development

RS485 Temperature and Humidity - 1.jpg

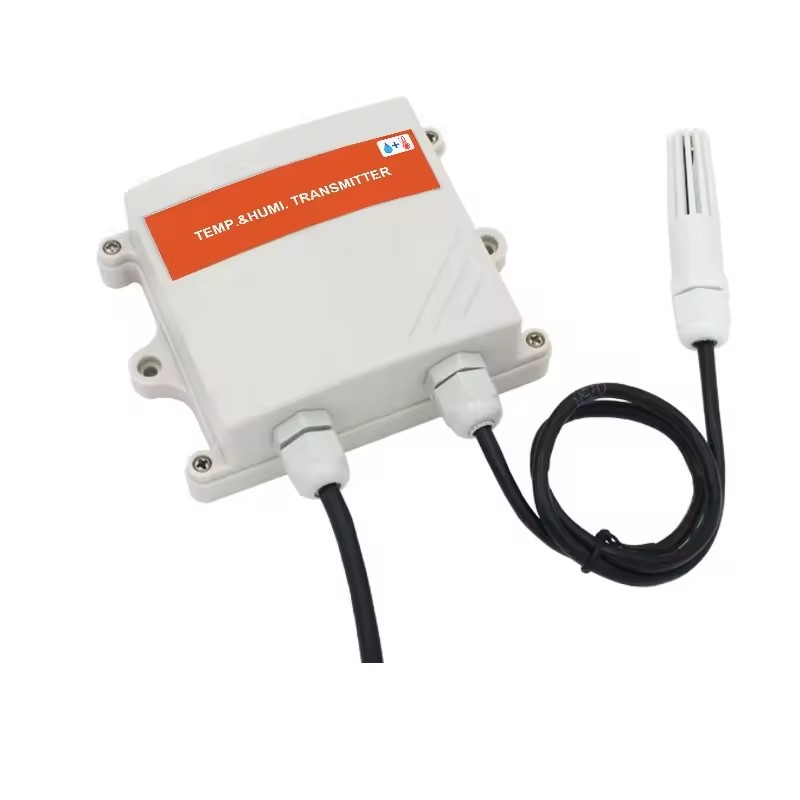

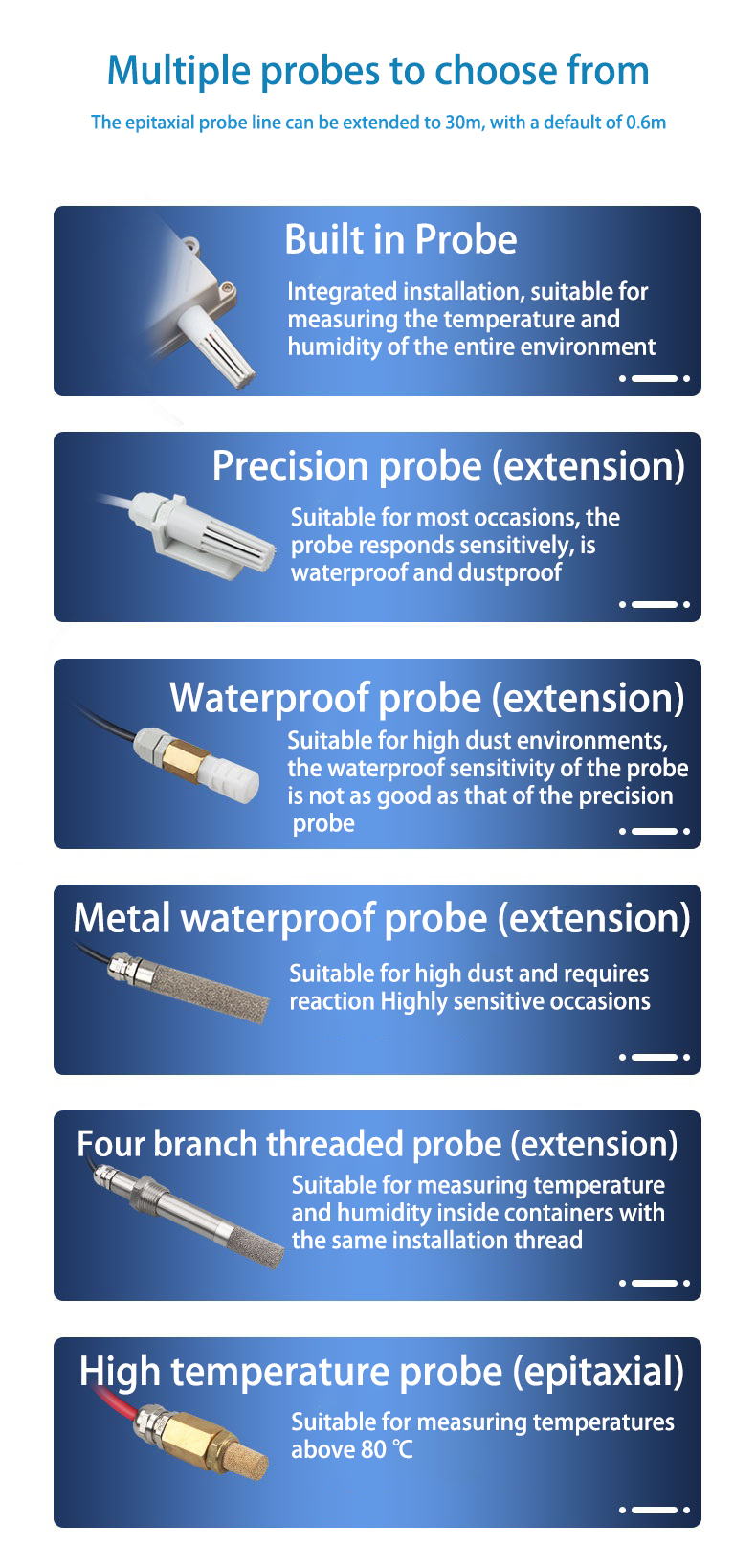

RS485 Temperature and Humidity - Optional Probe1.jpg

RS485 Temperature and Humidity-2-0.jpg

Specifications






Attribute

Customized support

OEM, ODM, OBM

Name

24VDC RS485 Analog Output Temperature and Humidity Probe Sensor

Keywords

Temperature and Humidity Probe Sensor

Output

4-20mA/0-5V/0-10V/RS485

Temperature Measurement

Range

-40°C to + 80°C

Accuracy

± 0.4°C



Humidity Measurement

Range

0% to 100% RH

Accuracy

± 2%



Physical Characteristics

Power Supply

10-30VDC

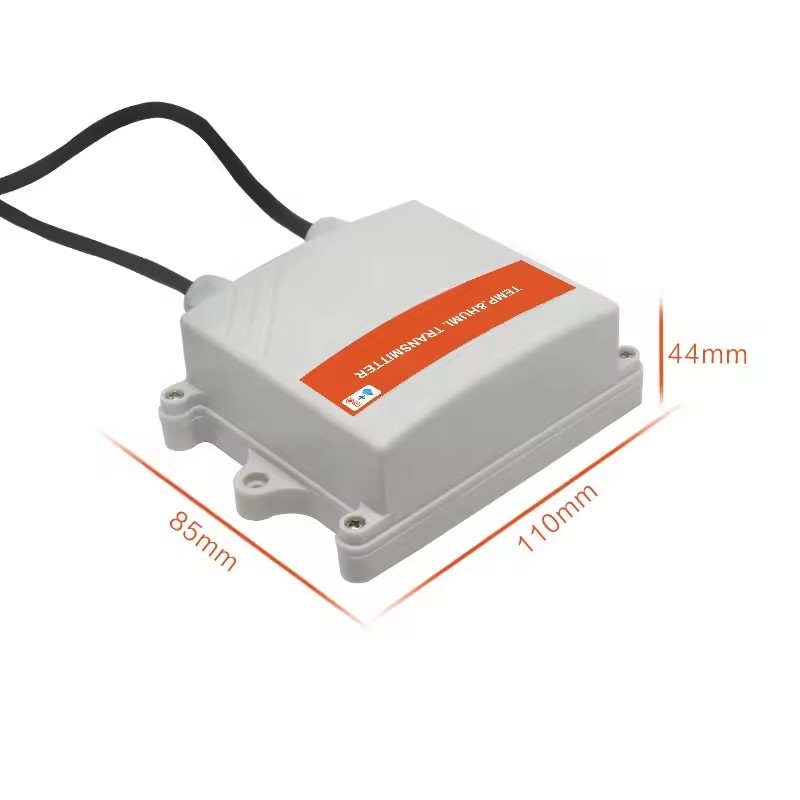

Dimensions

90x85x40  mm

Installation

Wall Mounting
