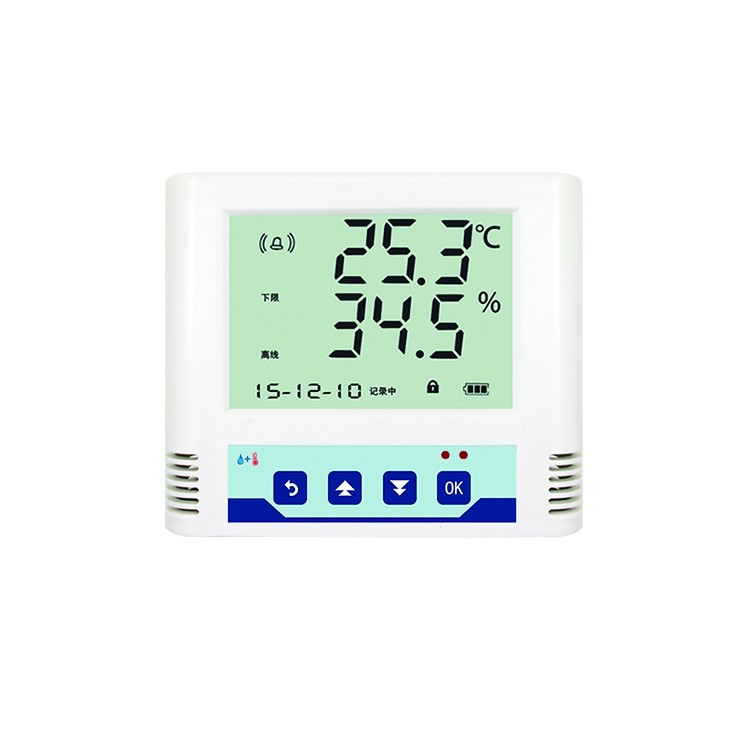

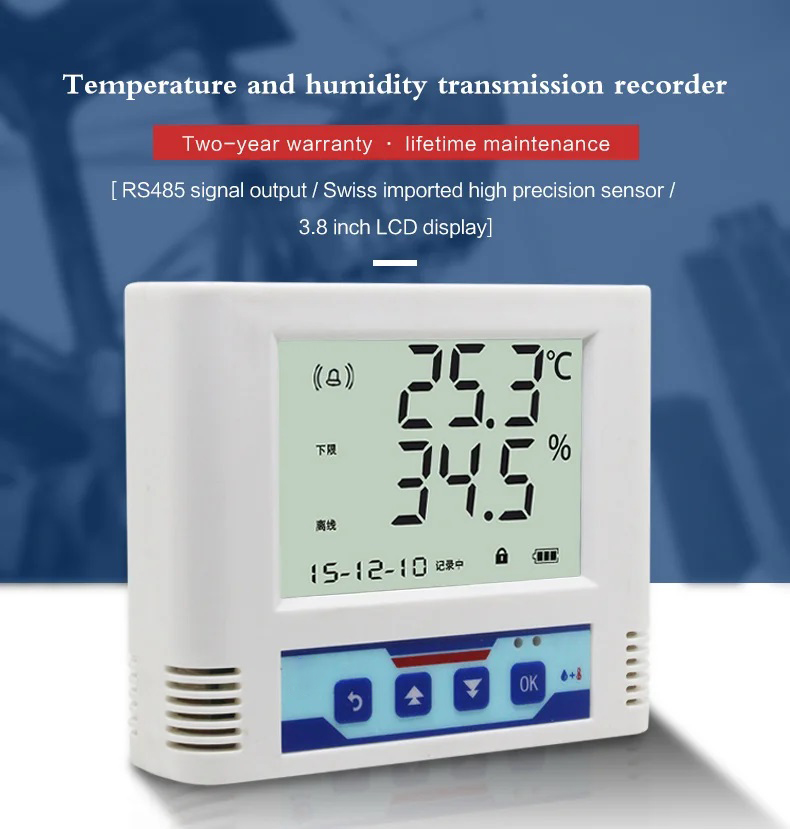

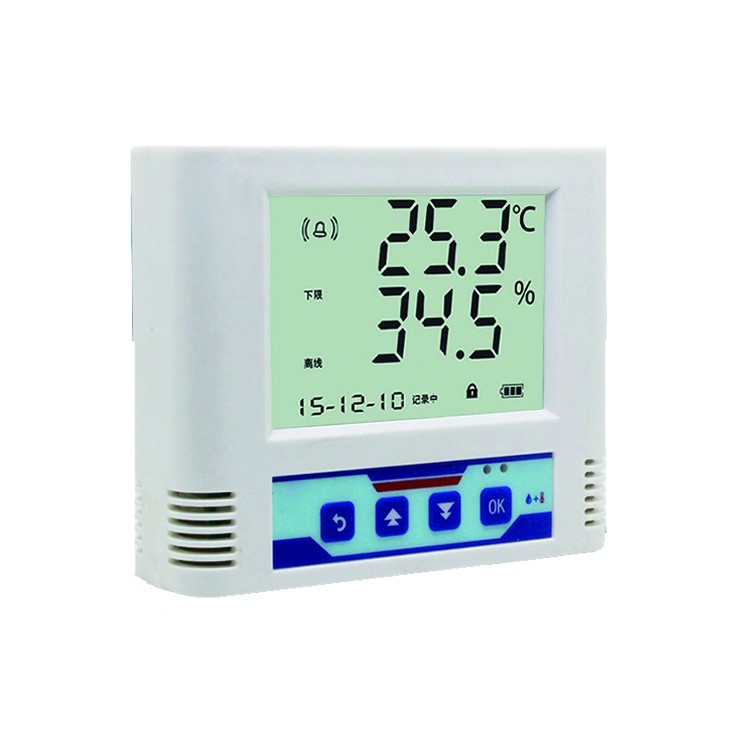

Industrial LCD display temperature and humidity transmitter (RS485 type)

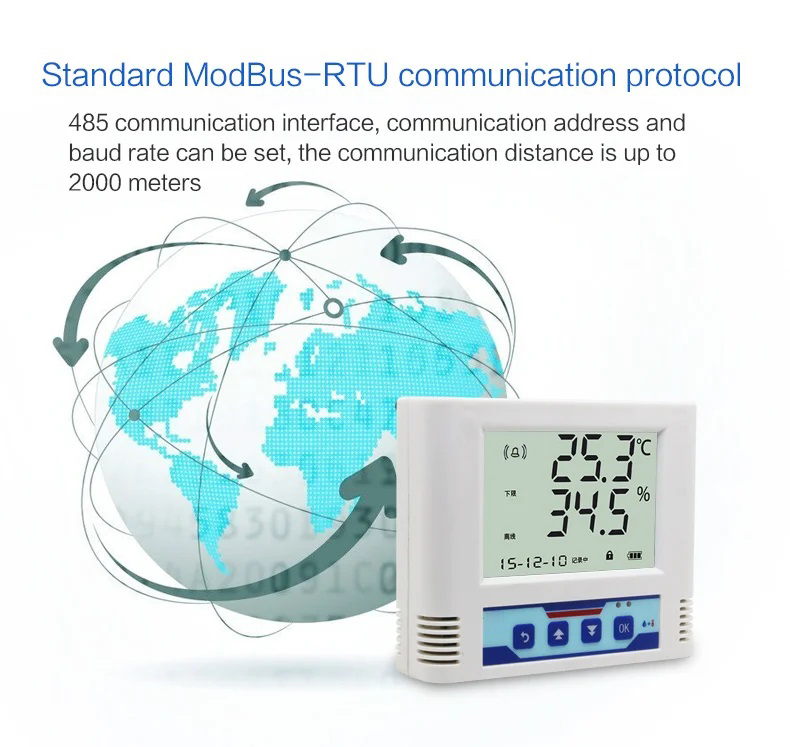

This transmitter is equipped with a LCD display, which displays temperature and humidity in real time. There are two outlet methods on the back. The device adopts the standard ModBus RTU communication protocol, with RS485 signal output and a maximum communication distance of 2000 meters (measured). The probe is built-in and widely used in communication rooms, warehouse buildings, and self-control places that require temperature and humidity monitoring. Safe and reliable, with a beautiful appearance and convenient installation.


Ethernet type <a href=https://www.zonewu.com/en/product/RS100.html target='_blank'>Temperature and Humidity Transmitter</a> TCP-3.jpg

Specifications





Attribute

Customized support

OEM, ODM, OBM

Name

Indoor LCD display smart temperature and humidity sensor

Keywords

Temperature and Humidity Probe Sensor

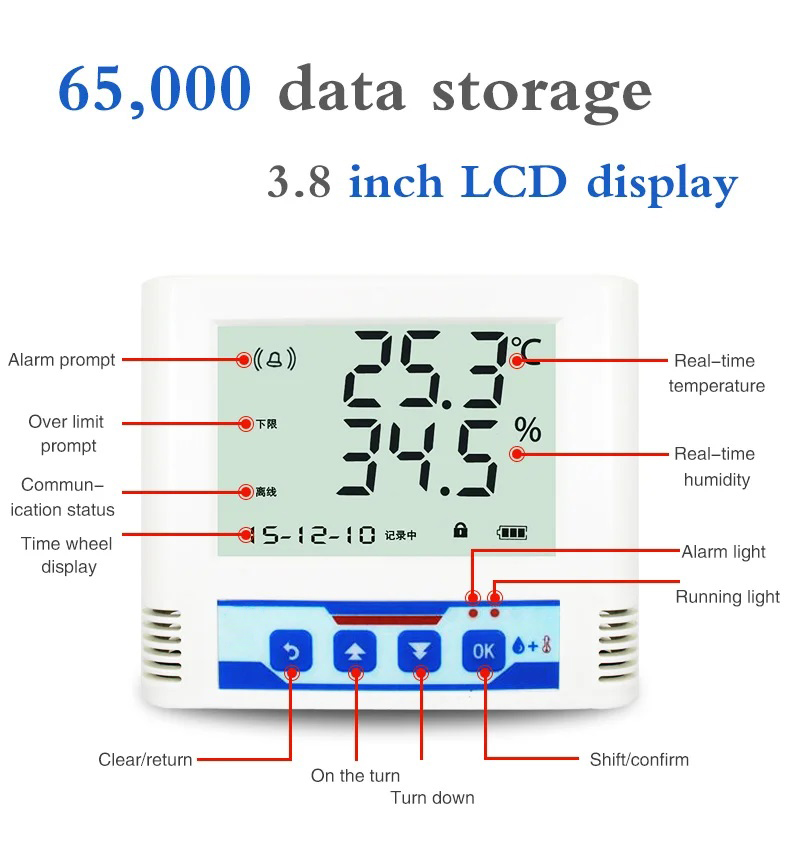

Display

LCD Screen

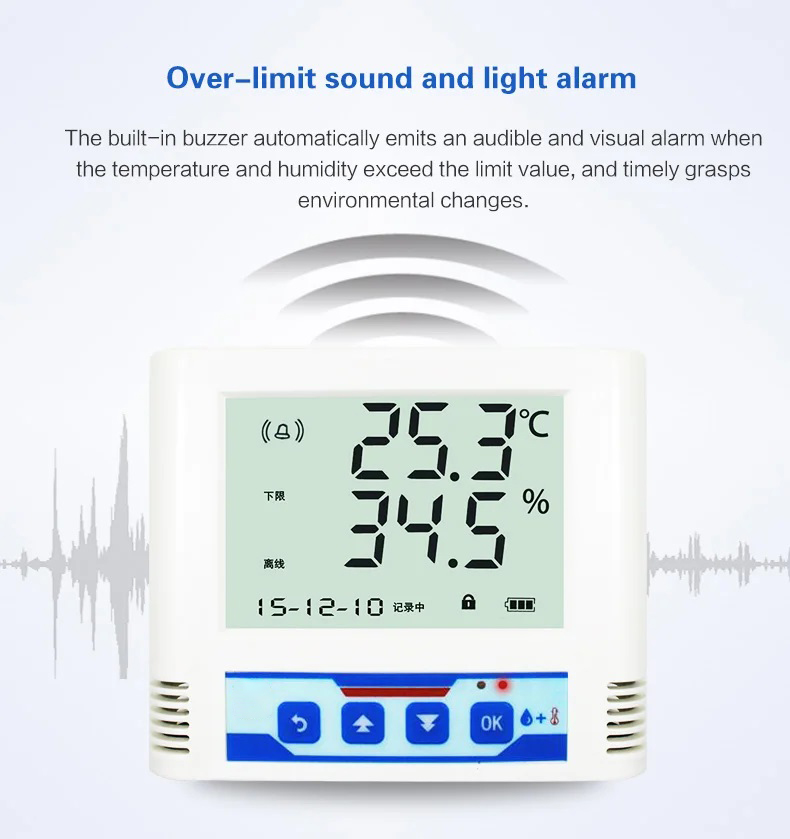

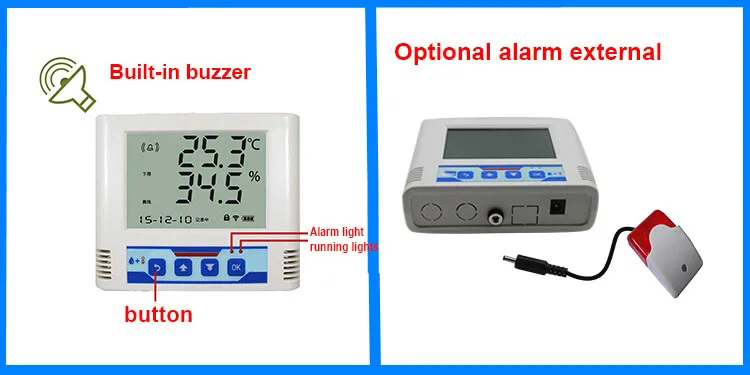

Alarm

Built in buzzer, external sound and light alarm, optional relay

Storage mode

Automatic loop storage

Storage capacity

65535 articles

Output signal

RS485

Temperature Measurement

Range

-40°C to + 80°C

Accuracy

± 0.5°C



Humidity Measurement

Range

0% to 100% RH

Accuracy

± 3%



Physical Characteristics

Power Supply

10-30VDC

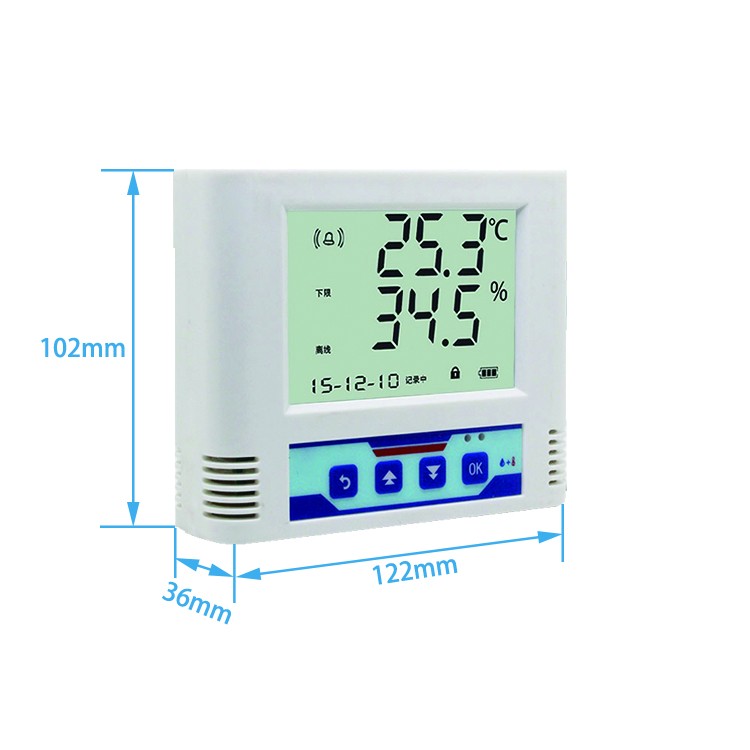

Dimensions

122x102x36  mm

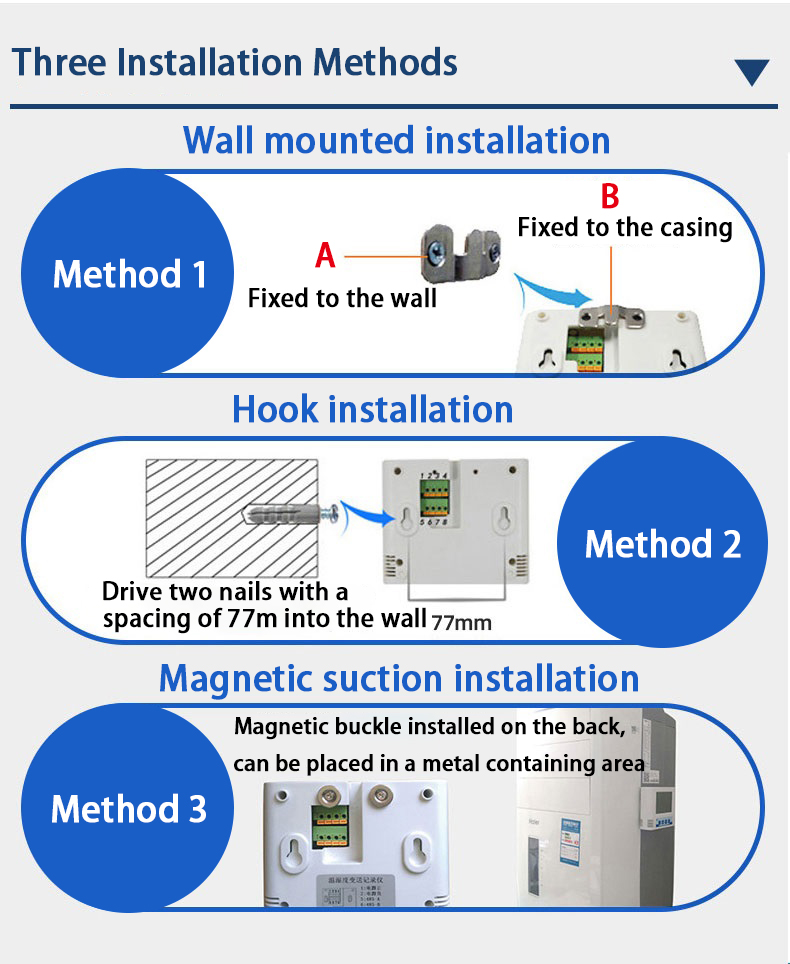

Installation

Wall Mounting
