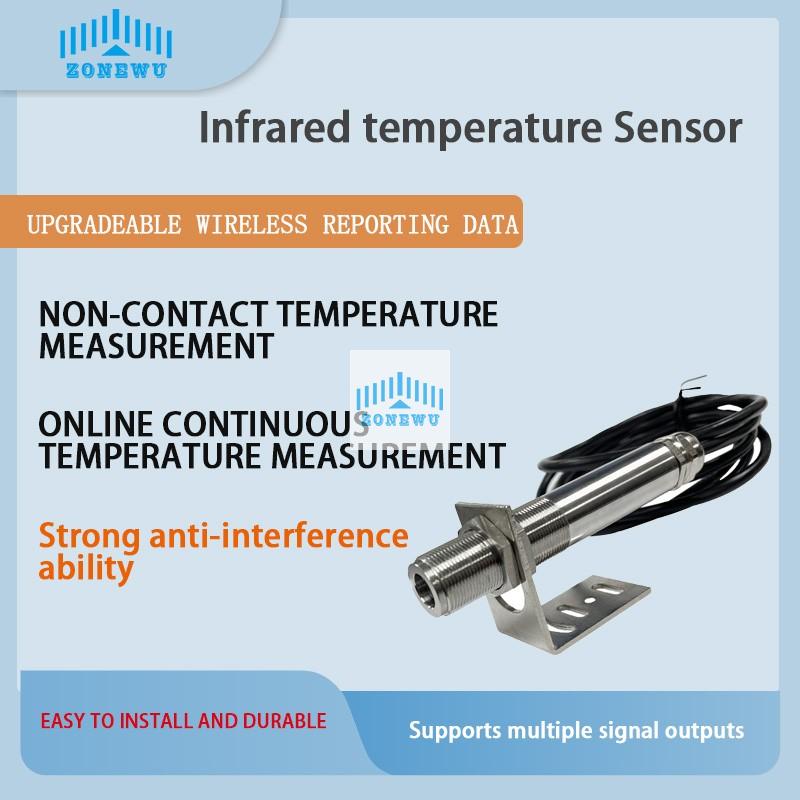

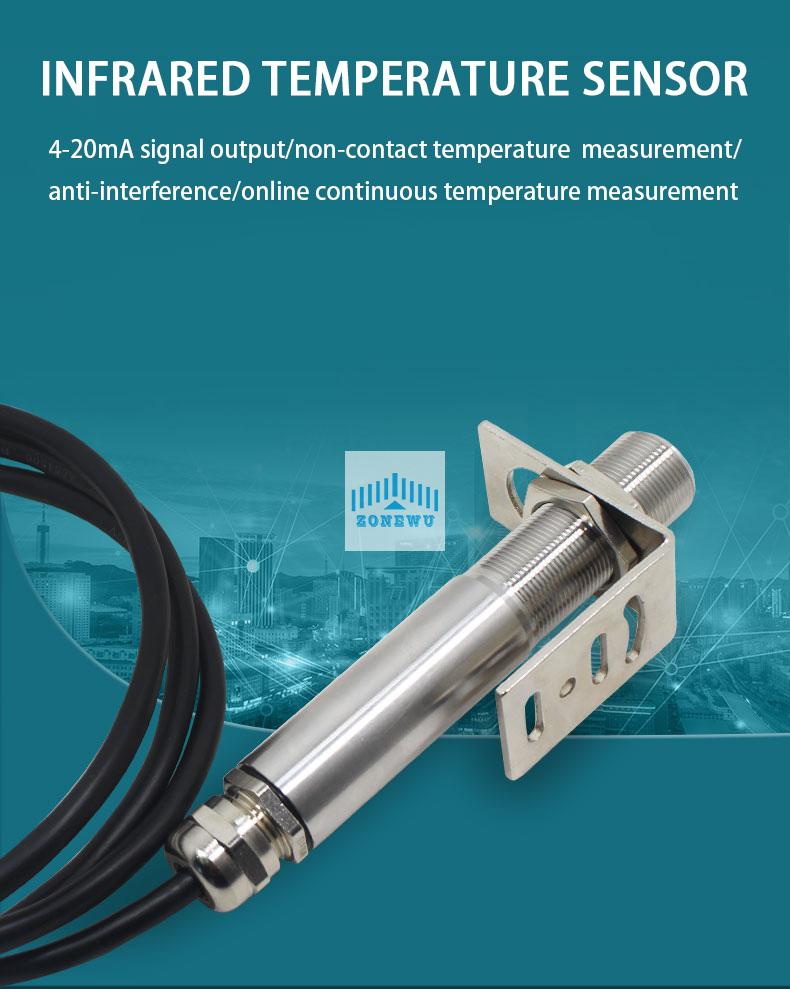

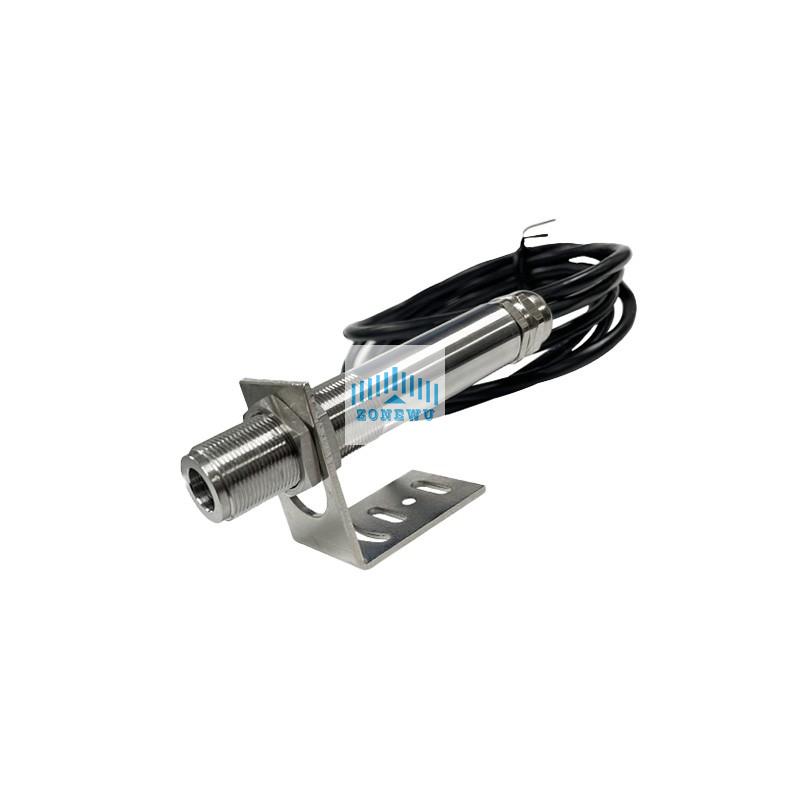

ZONEWU Infrared Temperature Sensor, Non-Contact RS485 Thermometer Probe

The ZONEWU non-contact infrared temperature sensor measures object surface temperature over 8-14 µm with 0.1°C resolution. Optional 0-100 to 600°C ranges, RS485/4-20mA/0-5V/0-10V outputs, 24VDC 304 stainless steel probe for industrial surface temperature monitoring.

Overview

Non-Contact IR Thermometer · RS485 / AnalogInfrared temperature sensor that calculates surface temperature from target radiation without contact, with RS485 and analog outputs for industrial control.8-14 µm spectral range, non-contact measurement0-100 to 600 °C optional ranges, 0.1 °C resolutionRS485 / 4-20mA / 0-5V / 0-10V outputs24VDC, 1.2W, 304 stainless steel probeWide industrial surface temperature monitoring

Key Features

Non-contact IRMeasures target surface temperature from infrared radiation without touching the object.Wide range options0-100 to 600 °C optional ranges with 0.1 °C resolution for different targets.

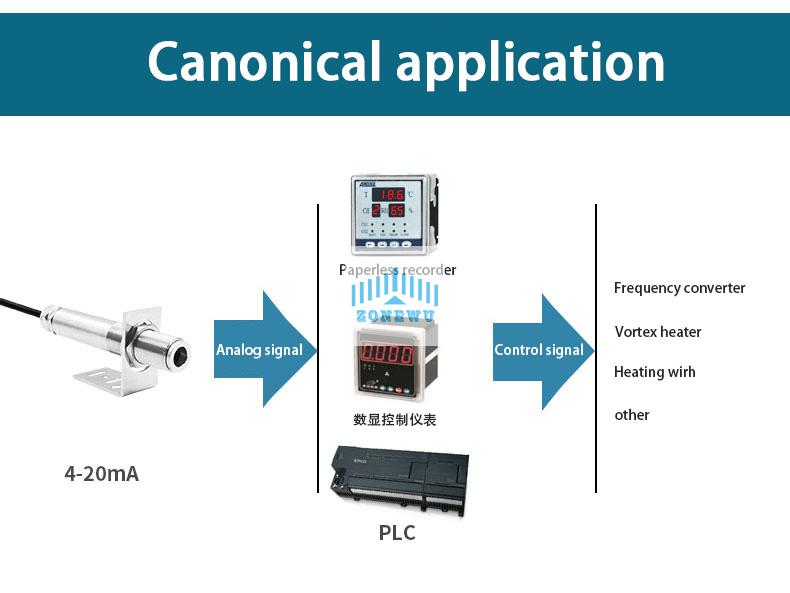

Accuracy±1% of reading or ±1 °C (larger value) at 300°C; 8-14 µm spectral response.Multiple outputsRS485, 4-20mA, 0-5V and 0-10V to connect to PLC, DCS or display.
Durable probe304 stainless steel housing, 24VDC supply, 1.2W power consumption.Custom supportOEM, ODM and OBM for industrial temperature monitoring projects.

Technical Specifications

Measured variableObject surface temperature (non-contact infrared)
Spectral range8-14 µm
Measuring range0-100 / 150 / 200 / 300 / 400 / 500 / 600 °C (optional)
Resolution0.1 °C
Accuracy±1% of reading or ±1 °C, take the larger value (@300°C)
Output signalRS485 / 4-20mA / 0-5V / 0-10V
Power supply24 VDC
Power consumption1.2 W
Probe material304 stainless steel
Customized supportOEM, ODM, OBM

Applications

Industrial ProcessMonitor surface temperature of machinery, bearings and production lines.HVAC & ElectricalDetect overheating in ducts, switchgear and electrical panels.
Metallurgy & FurnaceNon-contact temperature measurement of heated materials and furnace areas.Food & PackagingCheck surface temperature in packaging, drying and thermal process lines.
