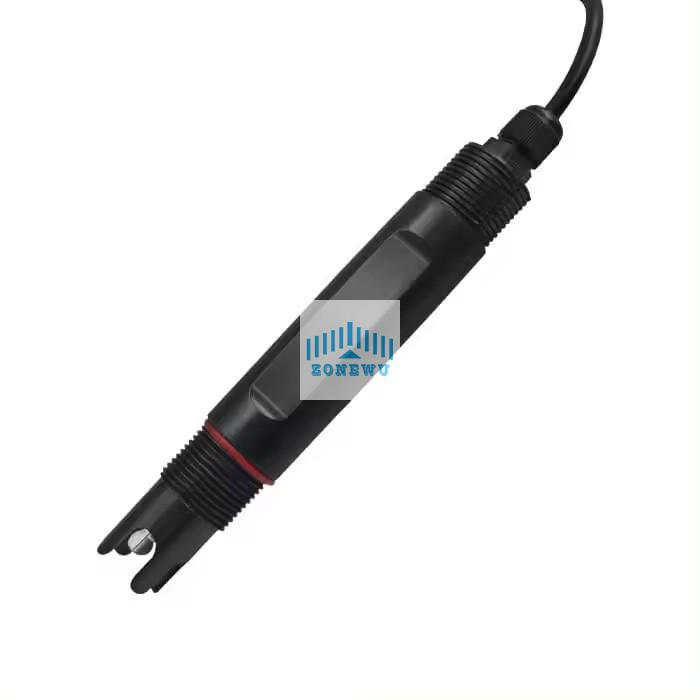

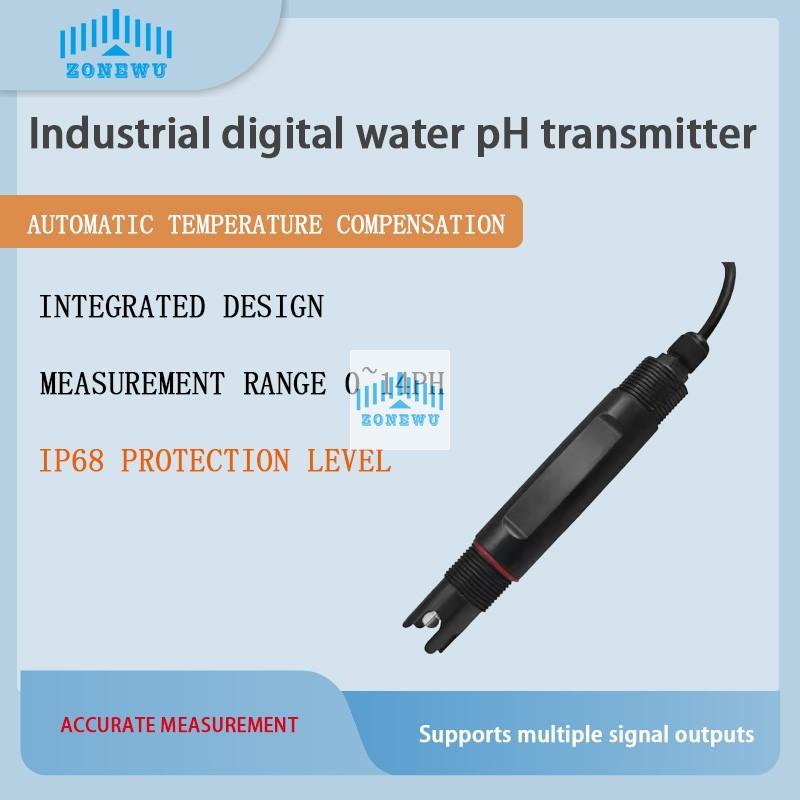

Industrial digital water pH transmitter

PH meter is an industrial liquid ph sensor for measuring the PH value of a solution. It has an automatic temperature compensation function. The automatic temperature compensation and manual temperature compensation can be switched at will. It is suitable for industrial sewage, domestic sewage, agriculture, aquaculture and other scenarios in a non-corrosive weak acid and weak alkali environment.

Detailed Images

Power supply	DC 10~30V
Power consumption	RS485: 0.6W, 4~20mA/0~5V/0~10V: 1.2W
Output signal	RS485/4~20mA/0~5V/0~10V

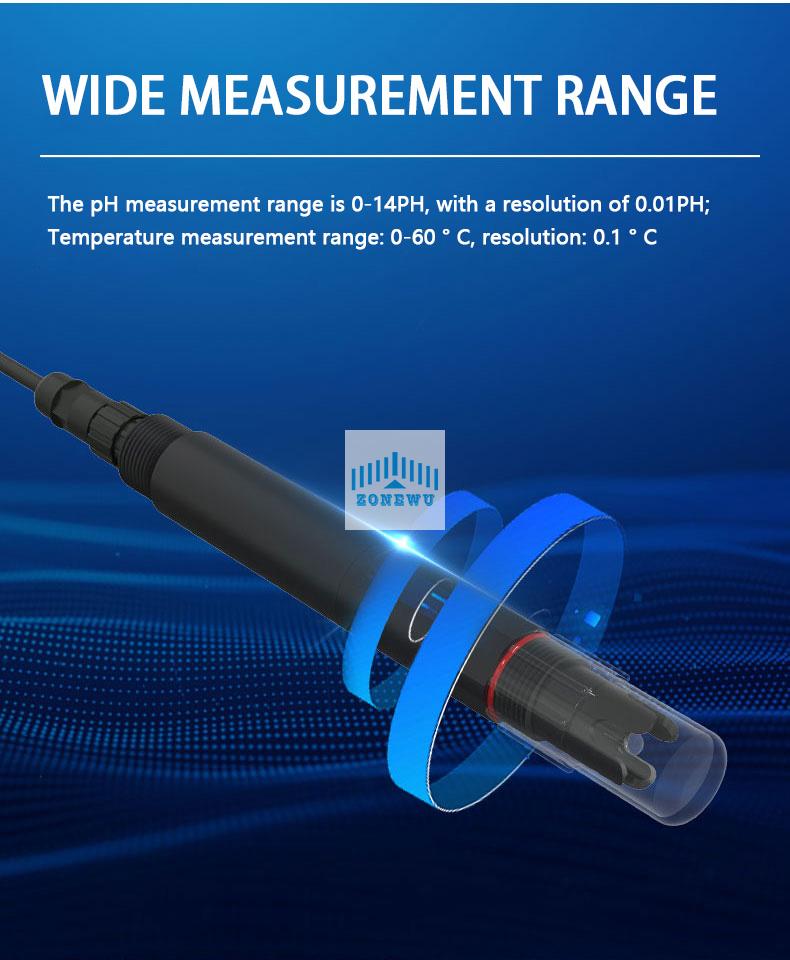

PH measurement range	0~14.00pH, Resolution: 0.01pH
PH measurement error	±0.15pH
Repeatability error	±0.02pH
Temperature measurement range	0~80℃; Resolution: 0.1℃ (set temperature for manual temperature compensation, default 25℃)
Temperature measurement error	±0.5℃
Equipment environment	0-60℃, ＜85%
Applicable temperature of electrode	0~80℃
Electrode wire length	default 5m (10m, 15m, 20m can be customized)
Electrode life	1 year

Specifications

Attribute
Customized support	OEM, ODM, OBM
Name	Industrial digital water pH transmitter
Description	Industrial Temperature Measuring
Output signal	4~20mA/0~5V/0~10V/RS485
Consumption	0.3W
Wire length	Default 5m (10m, 15m, 20m can be customized)
Sensor parameters
Measuring range	0~14.00pH
pH measurement error	±0.15pH
Repeatability error	±0.02pH
Temperature range	0~80℃
Temperature resolution	0.1℃
Physical Characteristics
Power Supply	7-30V
