Thermocouple pipeline temperature and humidity transmitter

Thermocouple pipeline temperature and humidity transmitter

This temperature sensor is used in the measurement of temperature and humidity in pipelines. It adopts imported temperature and humidity measurement unit, which has high accuracy and strong anti-interference ability. Guarantee the excellent measurement performance of the product. The measuring part adopts particle sintered probe sheath with protection grade IP65, which can be used in various industrial environments.

Specifications

Attribute
Customized support	OEM, ODM, OBM
Name	Duct Temp Humidity Transmitter Thermocouple Temperature Sensor
Description	Industrial Temperature Measuring
Output signal	RS485
Operation temperature	-40℃~+60℃
Response time	1s
Sensor parameters
Temperature range	-40℃~+80℃, (-40℃~+120℃ optional)
Resolution	0.1℃, 0.1RH%
Detection accuracy	±3%RH(60%RH,25℃), ±0.5℃(25℃)
Physical Characteristics
Power Supply	7-30V
Probe material	Stainless steel

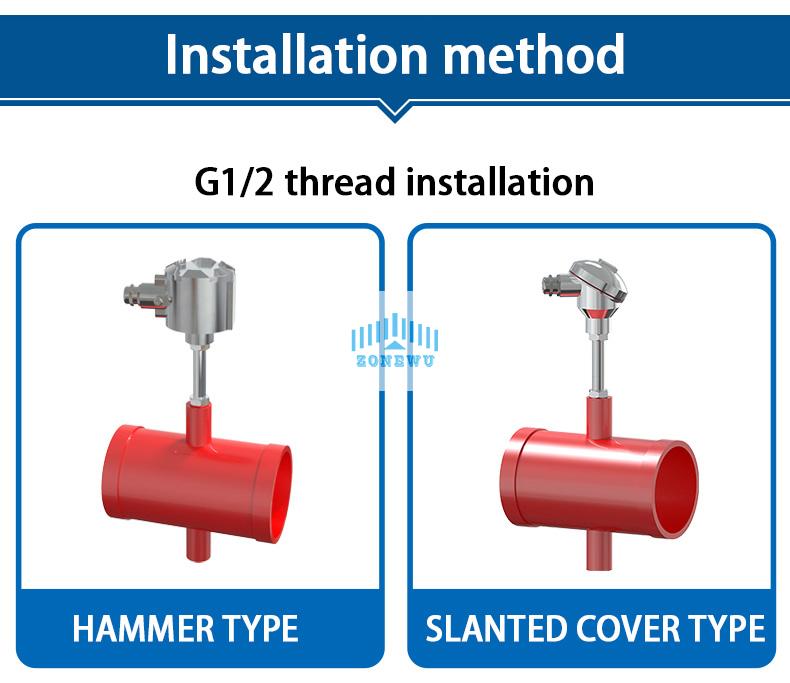

Installation	G1/2 thread installation
