Dew point temperature transmitter

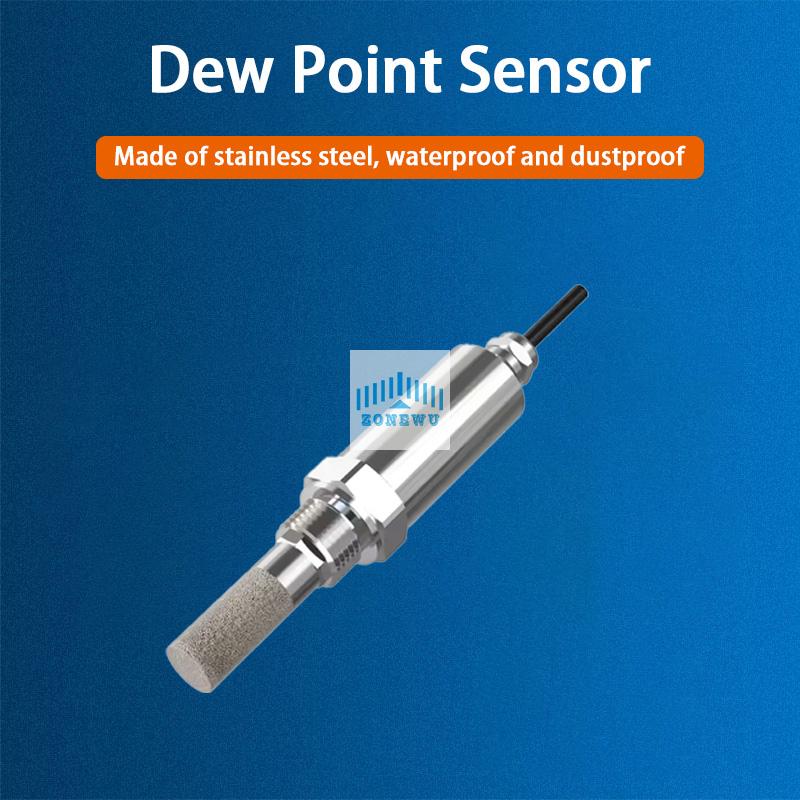

The dew point sensor housing is made of 304 stainless steel, waterproof and has an IP65 protection grade. The circuit adopts imported industrial-grade microprocessor chips and imported high-precision temperature sensors to ensure excellent measurement performance of the product. The product has an exquisite and compact appearance and is suitable for various industrial environments. The output signal type is RS485, which can communicate up to 2000 meters. The standard modbus protocol supports secondary development.

Temperature Humidity Dew Point Transmitter5.jpg

Detailed Images

Temperature Humidity Dew Point Transmitter6.jpg

Power supply	DC 10-30V
Maximum power consumption	0.4W
Range	-30℃-100℃
Accuracy	±0.8℃ (25℃)
Resolution	0.1℃
Working environment	-40℃~+60℃, 0%RH~95%RH (non-condensing)
Long-term stability	≤0.1℃/y
Response time	≤25s (1m/s wind speed)

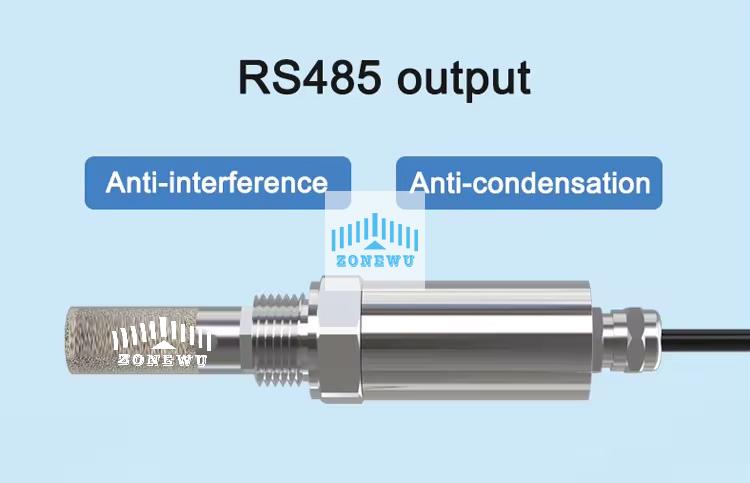

Output signal	RS485 (Modbus protocol)

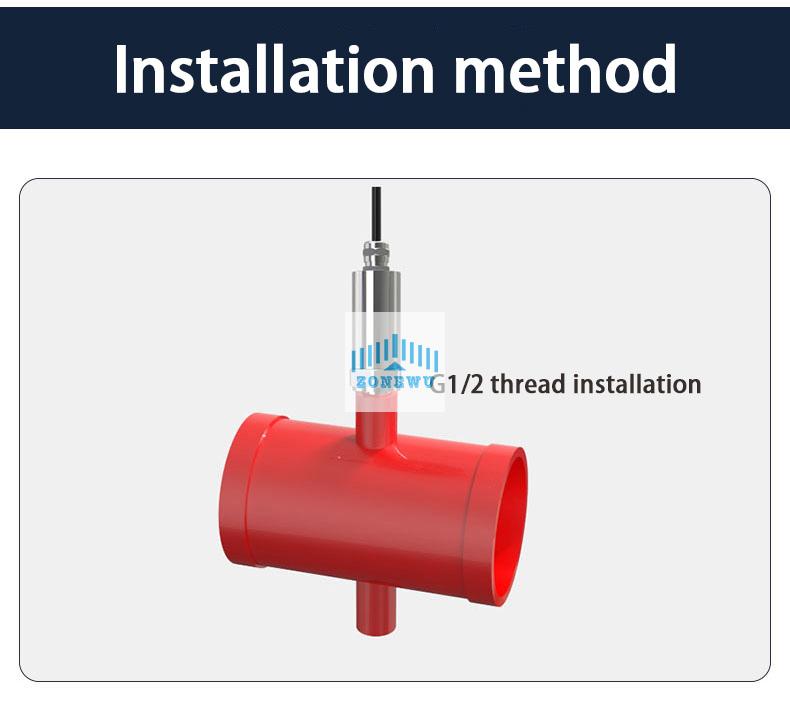

Installation method	G1/2 thread installation

Temperature Humidity Dew Point Transmitter7.jpg

Specifications

Attribute
Customized support	OEM, ODM, OBM
Name	Dew Point Sensor Humidity Measurement Dew Point Transmitter
Description	Industrial Temperature Measuring
Output signal	RS485
Operation temperature	-40℃~+60℃
Response time	1s
Sensor parameters
Measuring range	-30℃-100℃
Resolution	0.1℃
Detection accuracy	±0.8℃(25℃)
Physical Characteristics
Power Supply	10-30V
Probe material	Stainless steel
Installation	G1/2 thread installation
