ZONEWU LoRaWAN Solar-Powered Soil Temperature Humidity Sensor

ZONEWU LoRaWAN Solar-Powered Soil Temperature Humidity Sensor

LoRa solar soil temperature and humidity sensor is an environmental monitoring device that integrates solar power supply and long-distance communication technology, with the core function of real-time collection of soil temperature and humidity data.

ZONEWU LoRaWAN Solar-Powered Soil Temperature and Humidity Sensor

ZONEWU’s solar-powered LoRaWAN sensor is designed for long-term outdoor soil monitoring.

Equipped with solar panels and rechargeable batteries, it enables uninterrupted operation without frequent battery replacement.

Following LoRaWAN protocol, it offers long-distance, anti-interference data transmission to cloud platforms.

With -40~+80℃ temperature (high accuracy) and 0~100%RH humidity measurement, plus temperature compensation, it delivers reliable data.

Featuring IP68+ waterproof/dustproof and corrosion-resistant probes, it suits harsh outdoor conditions. Ideal for smart agriculture, ecological monitoring, and research projects.

Product Parameters

Power Supply	Solar Powered + Li-ion Batte
LW500S Weight	230g
Work Environment	Temperature: -40 ℃ to 60 ℃; Humidity: ≤ 95% RH
Measuring Range	Humidity：0%RH-100%RH 0-50% inner soil 2%, 50-100% inner soil 3% (brown soil, 60%. 25 ° C)
Measuring Range	Temperature：-40°C~+80°C,±0.5℃(25°℃)
EC Sensor External Dimensions	4515123mm
Steel Needle Material	Stainless Steel
Sealing Material	Black flame retardant epoxy resin
Transmitter Line length	Default 2m (other lengths can be customized)
Frequency	CN470/IN865/EU868/RU864/US915/AU915/ KR920/AS923-1&2&3&4
Mode	OTAA Class A/C
Reporting cycle	≤3 years （Depending on the reporting cycle） Note: Due to the high power consumption of soil sensor, it is not recommended to use short-term data reports for a long time
Communication Protocol	LoRaWAN,LoRa TDMA Networking
Equipment information (Reference)	AppEUI：0000000000000001 DevEUI：aaaa202404150001 AppKey：00001111222233334444555566667777 MAC Version：LoRaWAN 1.0.3

Product Applications

High precision: accurately measure the slightest changes in soil Temperature and Humidity , with a wide measurement range.
Multi - parameter integration: simultaneously detect soil temperature and humidity while measuring EC value for comprehensive data collection.
Solar - powered sustainability: continuous operation via solar energy, eliminating the need for frequent battery replacements.
Low - power wireless transmission: use LoRa technology for long - range, low - power data transmission, reducing energy consumption.
Strong environmental adaptability: withstand harsh outdoor conditions such as rain, dust, and extreme temperatures.

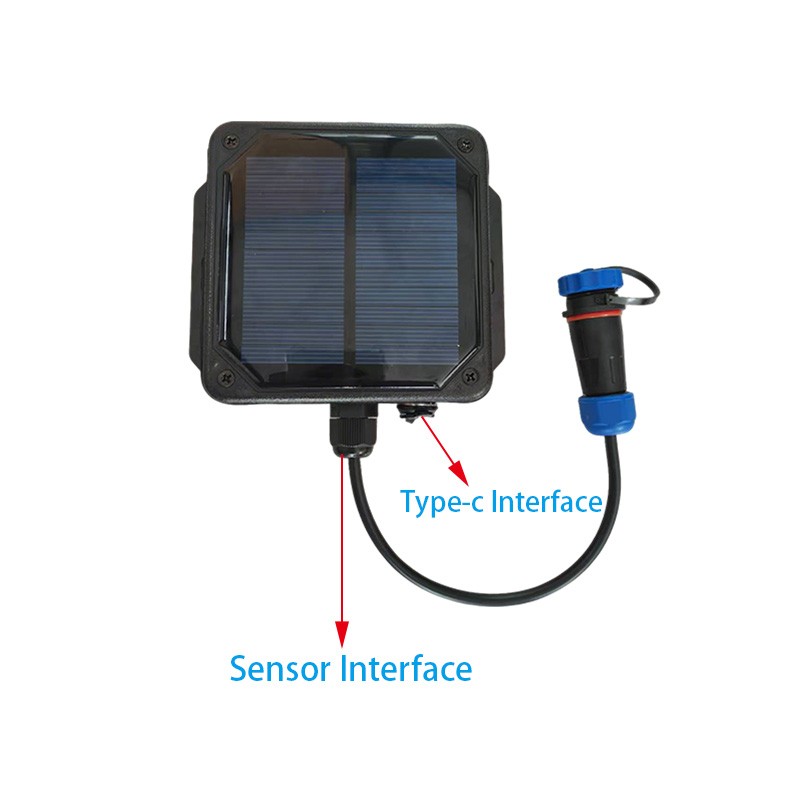

Easy installation and deployment: quick setup with an aviation connector and flexible placement in various soil monitoring scenarios.

Detailed Images

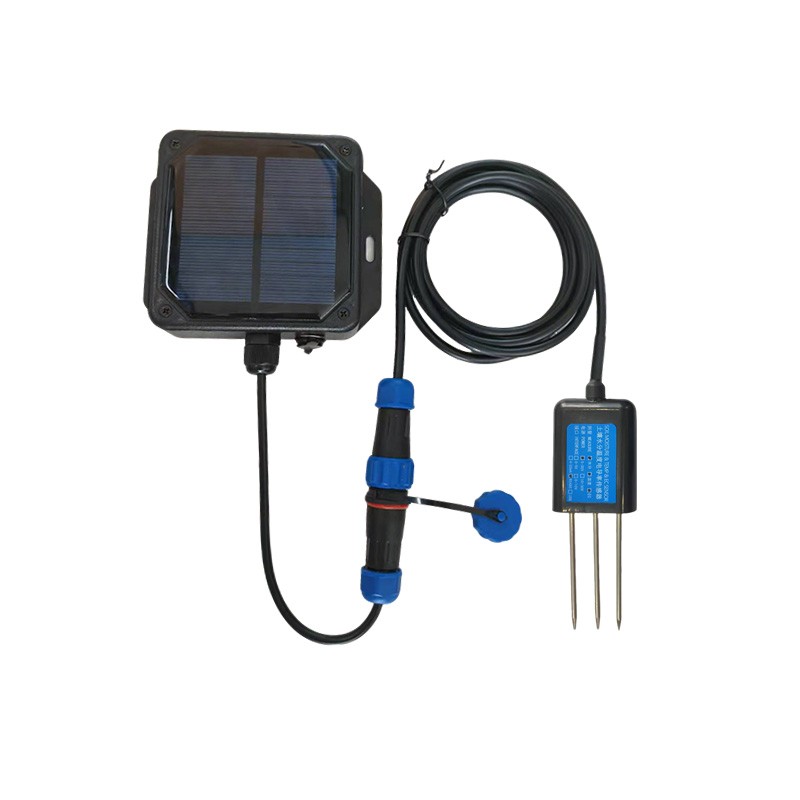

LoRa Solar Soil EC Sensor6.jpg

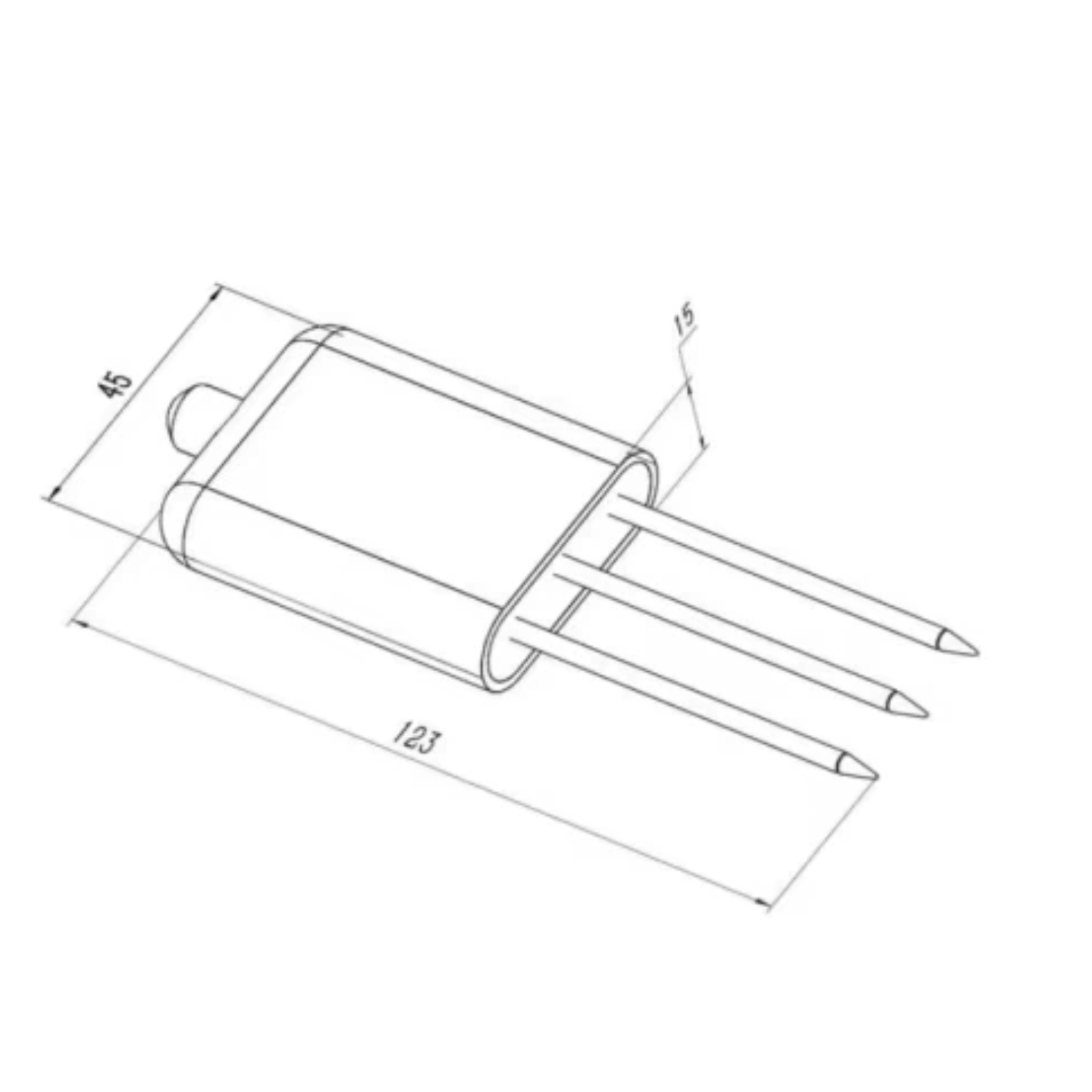

Soil EC size.jpg

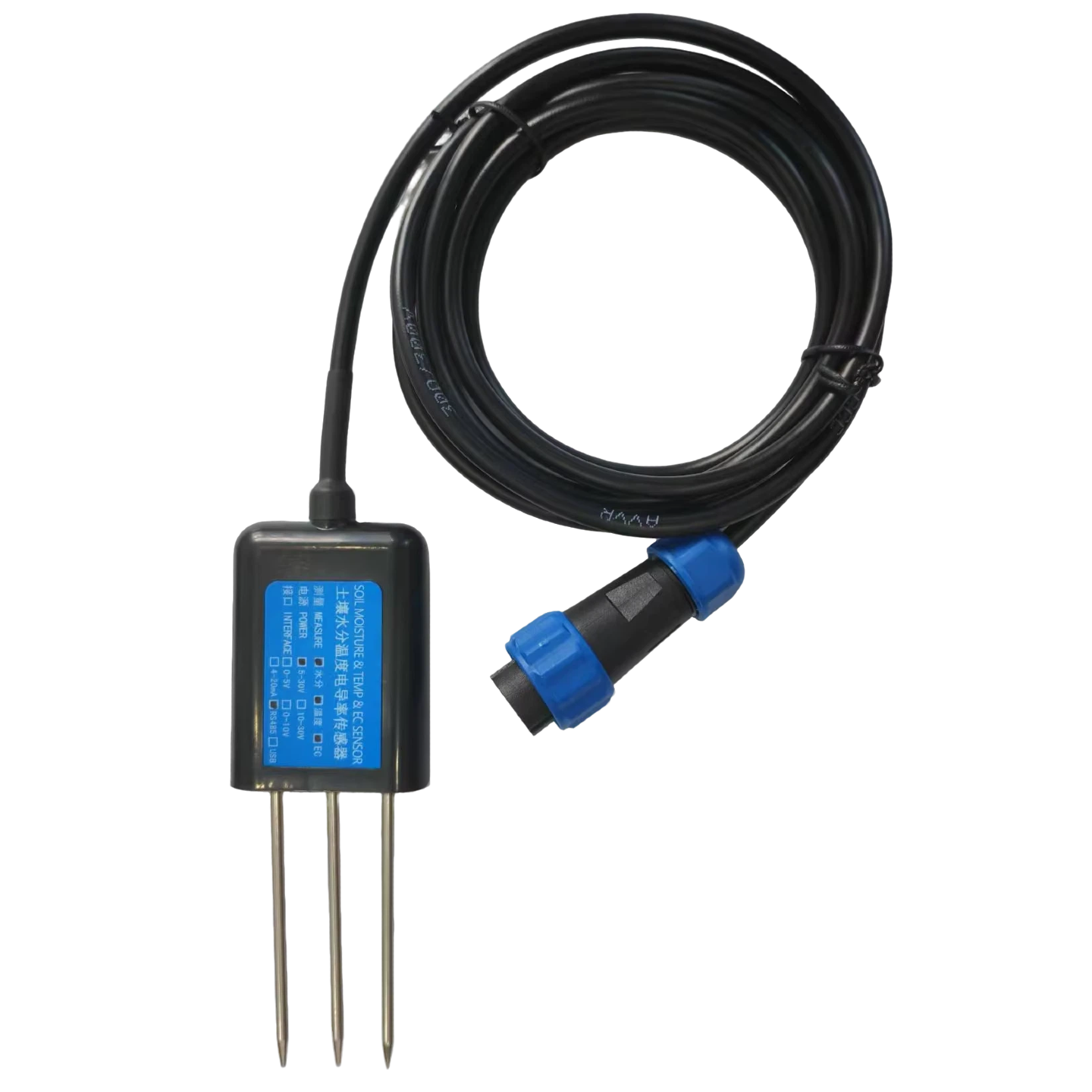

LoRa Solar Soil EC Sensor4.jpg

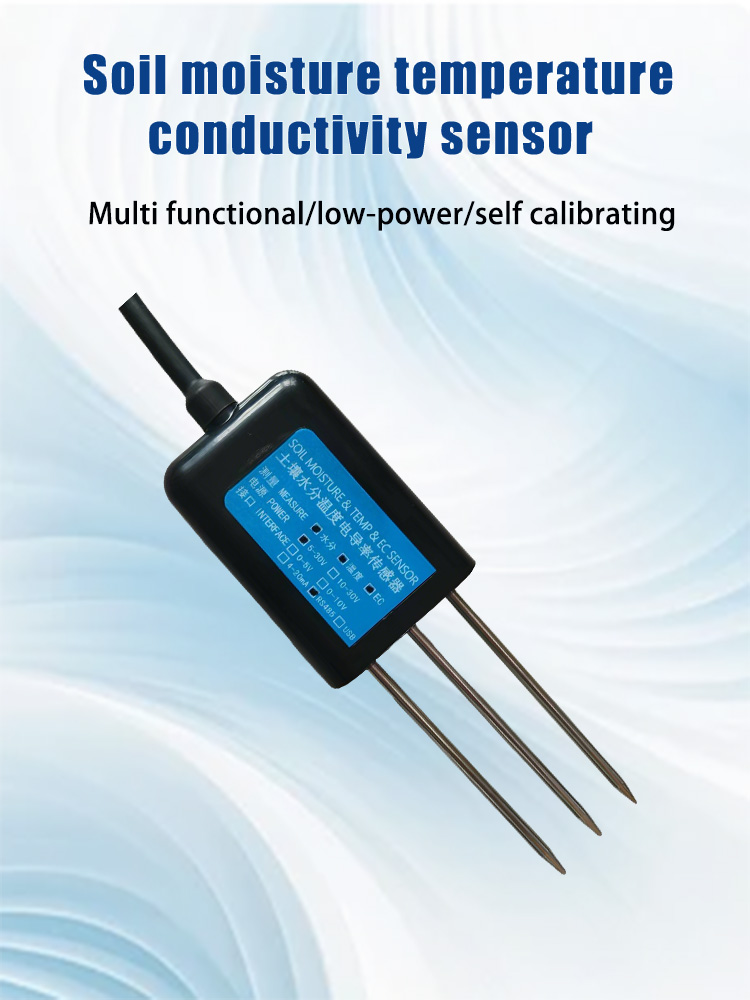

Soil ssensor1.jpg

Why Choose ZONEWU:

Professional IoT Sensor Manufacturer
Specializes in R&D, production, and sales of IoT sensors with strong technical expertise
High Quality and Reliability
Products certified with international standards (e.g., CE, RoHS), ensuring high quality and long lifespan.
Wide Range of Applications
Products serve diverse industries such as water quality monitoring, environmental monitoring, and industrial automation, offering strong market adaptability.
Advanced Technology
Utilizes cutting-edge communication technologies like LoRaWAN and NB-IoT for remote, low-power data transmission.
Customized Solutions
Provides tailored products and OEM/ODM services to meet diverse application needs.
