soil integrated transmitter temperature humidity EC ph

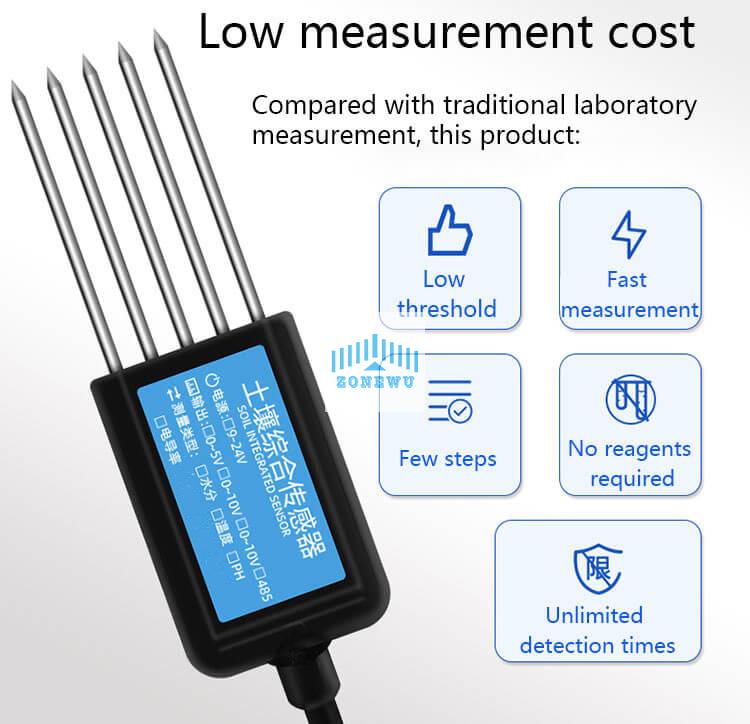

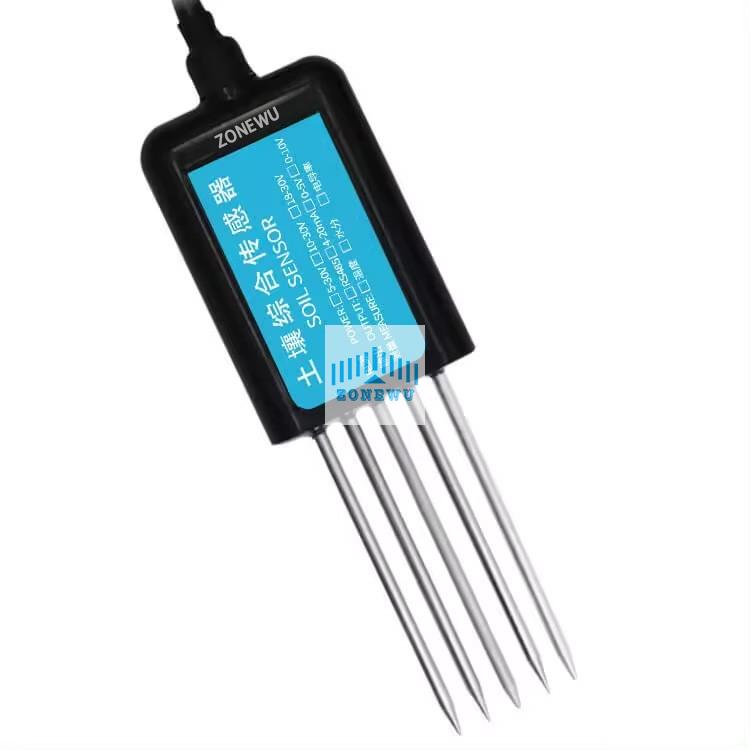

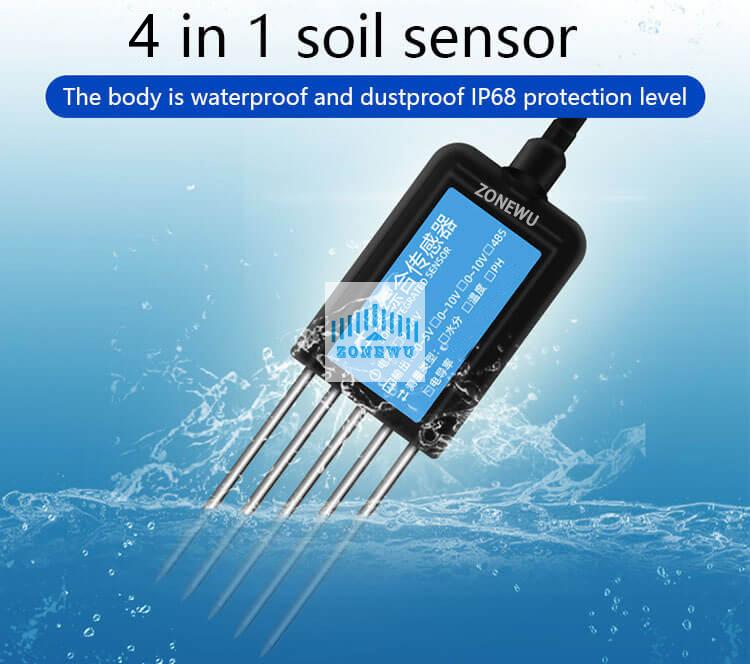

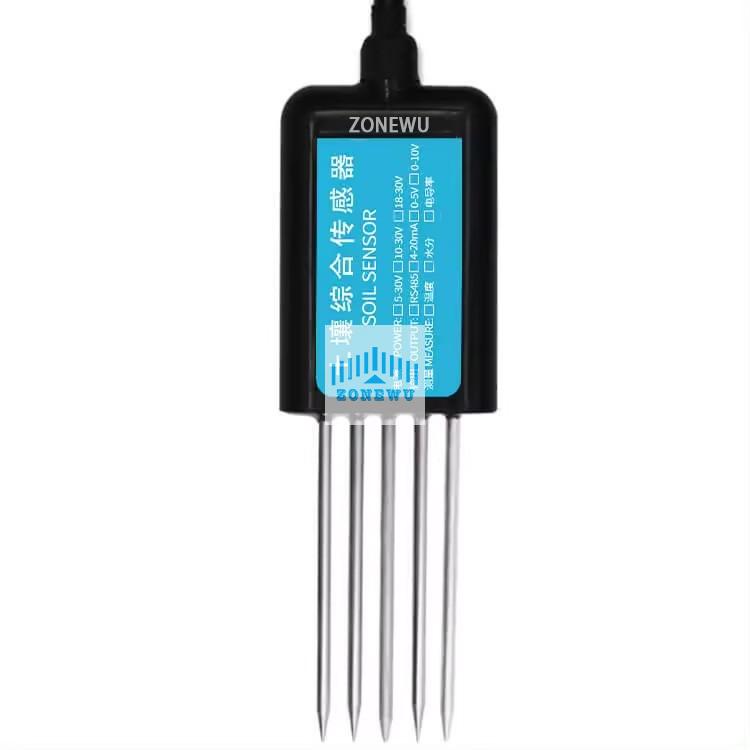

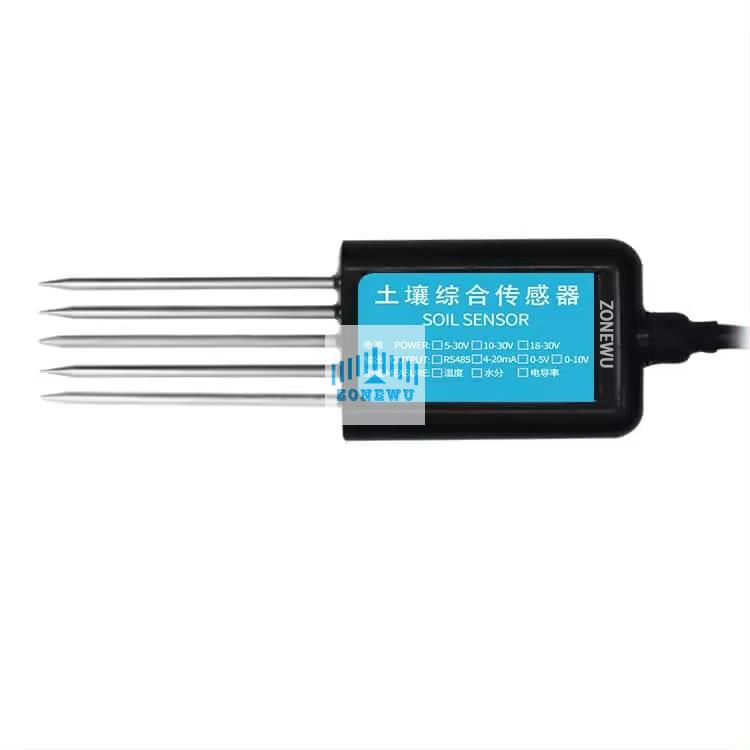

This soil sensor 4 in 1 can reflect four elements of soil moisture content, electrical conductivity, temperature, and pH. Suitable for all kinds of soil. It can be widely used in water-saving irrigation, greenhouses, flowers and vegetables, grassland pastures, plant cultivation, sewage treatment, precision agriculture and other occasions.

soil integrated transmitter temperature humidity EC ph5.jpg


Soil Sensor 4 in 1 Features:

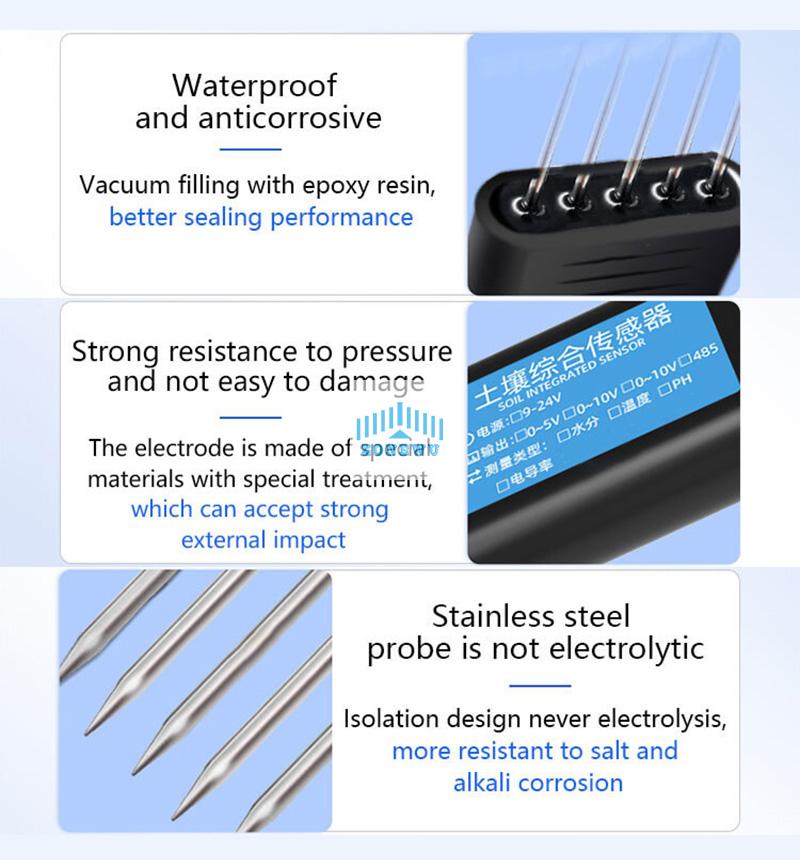

1. The four items of soil moisture content, electrical conductivity, temperature, and pH value are combined in one. 2. The operation is simple, no reagent is needed, and it can be reused. 3. The electrode is made of specially treated alloy material, which can withstand strong external impact and is not easily damaged. 4. Completely sealed, resistant to acid and alkali corrosion, and can be buried in soil or directly into water for long-term dynamic testing. 5. High precision, fast response, good interchangeability, probe plug-in design to ensure accurate measurement and reliable performance. 6. It can also be used for the conductivity of water and fertilizer integrated solutions, as well as other nutrient solutions and substrates. 7. The PH value measurement accuracy is high, up to ±0.3PH accuracy, and the response speed is fast.

Specifications






Attribute

Customized support

OEM, ODM, OBM

Name

soil integrated temperature humidity EC ph 4 in 1 soil sensor

Application

Moisture sensor

Output signal

4-20mA/0-5V/0-10V/RS485

Operation temperature

-40~+60

Response time

1s

Soil moisture

Range

0-100%

Repeatability

0.1%

Detection accuracy

±2% within 0-50%, @ (brown soil, 30%, 25)

±3% within 50-100%, @ (brown soil, 60%, 25)

Soil temperature

Range

-40~80

Repeatability

0.1

Detection accuracy

±0.5(25)

Soil EC

Range

0-20000μS/cm

Repeatability

10μS/cm

Detection accuracy

±3% in the range of 0-10000μS/cm;

±5% in the range of 10000-20000μS/cm

Soil ph

Range

3-9 PH

Resolution

0.1



Physical Characteristics

Power Supply

5-30VDC

Probe material

304 stainless steel

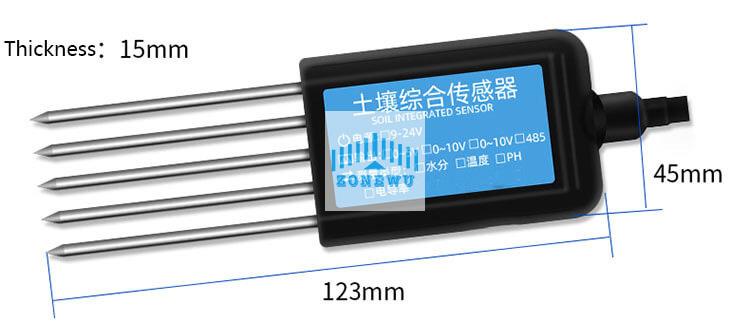

Physical dimensions

45*15*123mm
