Non-Contact Temperature Measurement Essential: Detailed Introduction to RS485 Infrared Temperature Sensor

Temperature stands as one of the most common and critical measured parameters in industrial automation, equipment monitoring and process control. Traditional contact temperature measurement requires direct physical contact with measured objects, featuring slow response speed, potential disturbance to the object’s original temperature, and inapplicability to moving, ultra-high-temperature or hazardous targets. Non-contact infrared temperature measurement effectively eliminates all these drawbacks. This article introduces an RS485 infrared temperature sensor integrating high precision, easy installation and long-distance signal transmission, an optimal solution for industrial field deployment.

Core Product Advantages

Equipped with professional SMD array temperature probe, the key specifications are listed below:

• Wide measuring range: Standard range 0~600℃, optional customized range from -50℃ to 1200℃ to satisfy most industrial temperature testing demands

• High accuracy: ±1% of reading or ±1.5℃ (whichever is larger), compliant with precise monitoring standards

• Superior optical performance: 8~14μm spectral response and 20:1 optical ratio, enabling small-target temperature detection from a remote distance

• Robust construction: 304 stainless steel housing with IP54 ingress protection, resistant to dusty and humid working surroundings

• Standard communication: Built-in RS485 interface with Modbus RTU protocol, seamlessly connectable to PLC, HMI touch screen and industrial control computer

Working Principle: All Objects Emit Infrared Radiation

All substances above absolute zero radiate infrared energy, whose radiant intensity varies with object temperature. This sensor captures infrared signals within 8~14μm waveband, converts optical signals into electrical signals via photoelectric conversion, and outputs calibrated temperature data after signal amplification and linear processing. The whole measuring process is non-contact with millisecond-level response time without altering the physical status of tested objects.

Installation & Wiring: Three Simple Steps for Commissioning

The cylindrical sensor measures Φ18mm × 113mm and comes with M18×1 external thread, fixable directly via lock nut or adjustable mounting bracket. Key installation notes:

1. Distance-target matching rule: Follow the 20:1 optical ratio (measuring distance : target diameter ≤20). For instance, the tested target shall be no less than 10mm in diameter when measured at 200mm away to fully cover the sensor’s field of view.

2. Anti-interference arrangement: Keep the device away from motors, high-power cables and other electromagnetic interference sources; install metal shielding when necessary.

Wiring Definition

• Brown wire: Positive power supply (10~30V DC)

• Black wire: Power ground (GND)

• Yellow wire: RS485-A terminal

• Blue wire: RS485-B terminal

Modbus RTU Communication Protocol for Easy Secondary Development

Factory default parameters: Slave address 0x01, baud rate 4800bps, 8 data bits, no parity, 1 stop bit. Key functional registers:

• 0x0000 (Read-only): Real-time temperature value (data multiplied by 10; e.g., register value 0x00C8 stands for 20.0℃)

• 0x07D0 (Read & Write): Modbus slave address, adjustable from 1 to 254

• 0x07D1 (Read & Write): Baud rate configuration (0=2400bps, 1=4800bps, 2=9600bps, etc.)

Sample master query command (Hex): 01 03 00 00 00 01 84 0ASample sensor feedback frame (Hex): 01 03 02 00 C8 B9 D2, decoded as 20.0℃. Convenient for programming and field debugging.

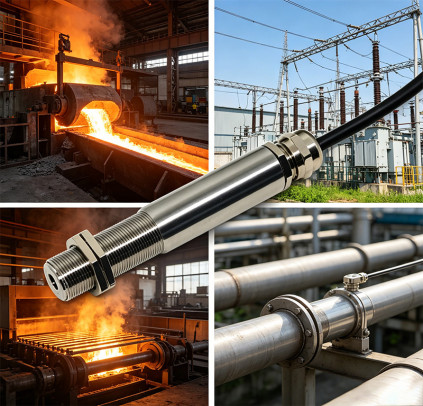

Typical Application Scenarios

• Metallurgy & thermal treatment: Non-contact temperature monitoring for steel billets and furnace walls

• Power industry: Over-temperature early warning for high-voltage switchgears and motor bearings

• Baking & drying industry: Closed-loop temperature control for food and coating production lines

• Pipeline inspection: Surface temperature measurement of steam pipelines and high-temperature fluid pipes

• Automatic system integration: Multi-point networking access to SCADA monitoring platform

Precautions & Daily Maintenance

1. Safety Disclaimer: This sensor cannot serve as safety interlock or emergency stop component. Do not rely on this product for applications where equipment failure may cause personal injury.

2. Lens Maintenance: Keep optical lens clean; dust and grease will trigger measurement deviation. Wipe gently with lens paper dipped in anhydrous ethanol for cleaning.

3. EMC Suggestion: Use shielded twisted-pair cable for long-distance wiring with single-end grounding of shielding layer.

4. Warranty Terms: 12-month free manufacturer’s warranty; paid lifelong maintenance after warranty expiry. Damage caused by unauthorized disassembly, water intrusion or overload is excluded from free warranty coverage.

Conclusion

Model ZW-WD-HW-R RS485 infrared temperature sensor delivers reliable and cost-effective industrial temperature monitoring with non-contact detection, wide measuring range, high precision and standard Modbus communication. It fits perfectly for new machinery integration and existing production line retrofitting. If you are sourcing an affordable and developer-friendly non-contact temperature measuring unit, this product is a highly recommended option.https://www.zonewu.com/en/temperature-and-humidity-probe-sensor.html
